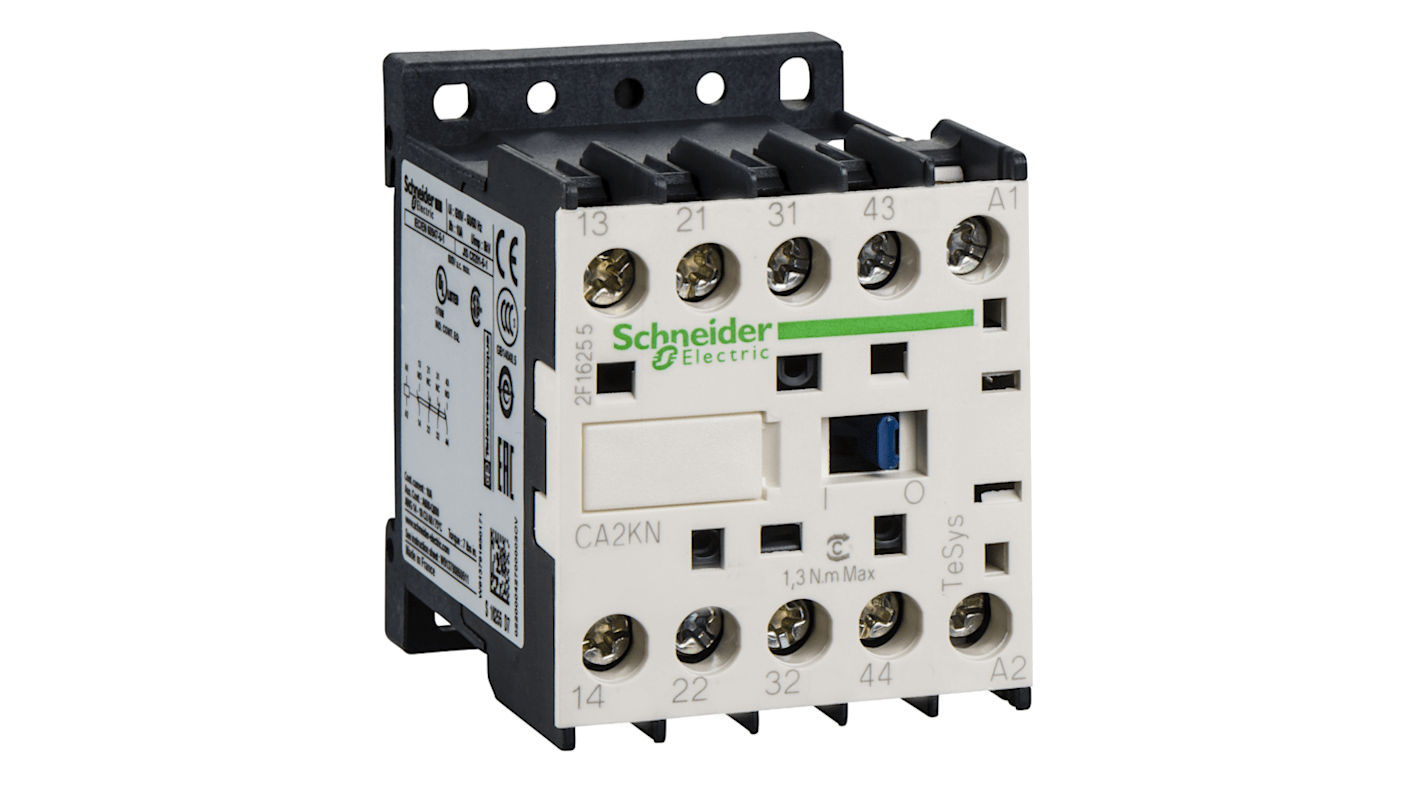

Schneider Electric, TeSyS CA Control Relay 1 NO/1 NC, 10A Contact Rating, 30 VA, 24V
- RS Stock No.:
- 256-4077
- Mfr. Part No.:
- CA2KN22B72
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£43.44
(exc. VAT)
£52.13
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £43.44 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 256-4077
- Mfr. Part No.:
- CA2KN22B72
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Control Relay | |
| Relay Contact Current | 10A | |
| Mount Type | Rail | |
| Series | TeSyS CA | |
| Power Rating | 30VA | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP2X | |
| Width | 45mm | |
| Minimum Operating Temperature | -25°C | |
| Adjustable Current Range | 28 to 115 A | |
| Length | 480000.00mm | |
| Maximum Operating Temperature | 50°C | |
| Contact Voltage | 690V | |
| Depth | 57mm | |
| Standards/Approvals | VDE 0660, BS 5424, CSA, CSA C22.2 No 14, IEC 60947, UKCA, UL | |
| Better World Product | Yes | |
| Control Voltage | 24V | |
| Supply Voltage | 24, 250, 500V | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Control Relay | ||
Relay Contact Current 10A | ||
Mount Type Rail | ||
Series TeSyS CA | ||
Power Rating 30VA | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
Reset Method Automatic & Manual | ||
IP Rating IP2X | ||
Width 45mm | ||
Minimum Operating Temperature -25°C | ||
Adjustable Current Range 28 to 115 A | ||
Length 480000.00mm | ||
Maximum Operating Temperature 50°C | ||
Contact Voltage 690V | ||
Depth 57mm | ||
Standards/Approvals VDE 0660, BS 5424, CSA, CSA C22.2 No 14, IEC 60947, UKCA, UL | ||
Better World Product Yes | ||
Control Voltage 24V | ||
Supply Voltage 24, 250, 500V | ||
- COO (Country of Origin):
- FR
The Schneider Electric control relay provides up to 24V AC coil with integral suppression device available, connection by spring terminals. For high operating rates until 180 cycles per min and ambient temperature -25°C to +50°C, it procures high reliability and durability. It is compact and has DIN rail or fixing by screw.
Optimized size to save customer cabinet space
Wide range of accessories to satisfy different customer usage
Easier to install and operate with multi-standard screws
