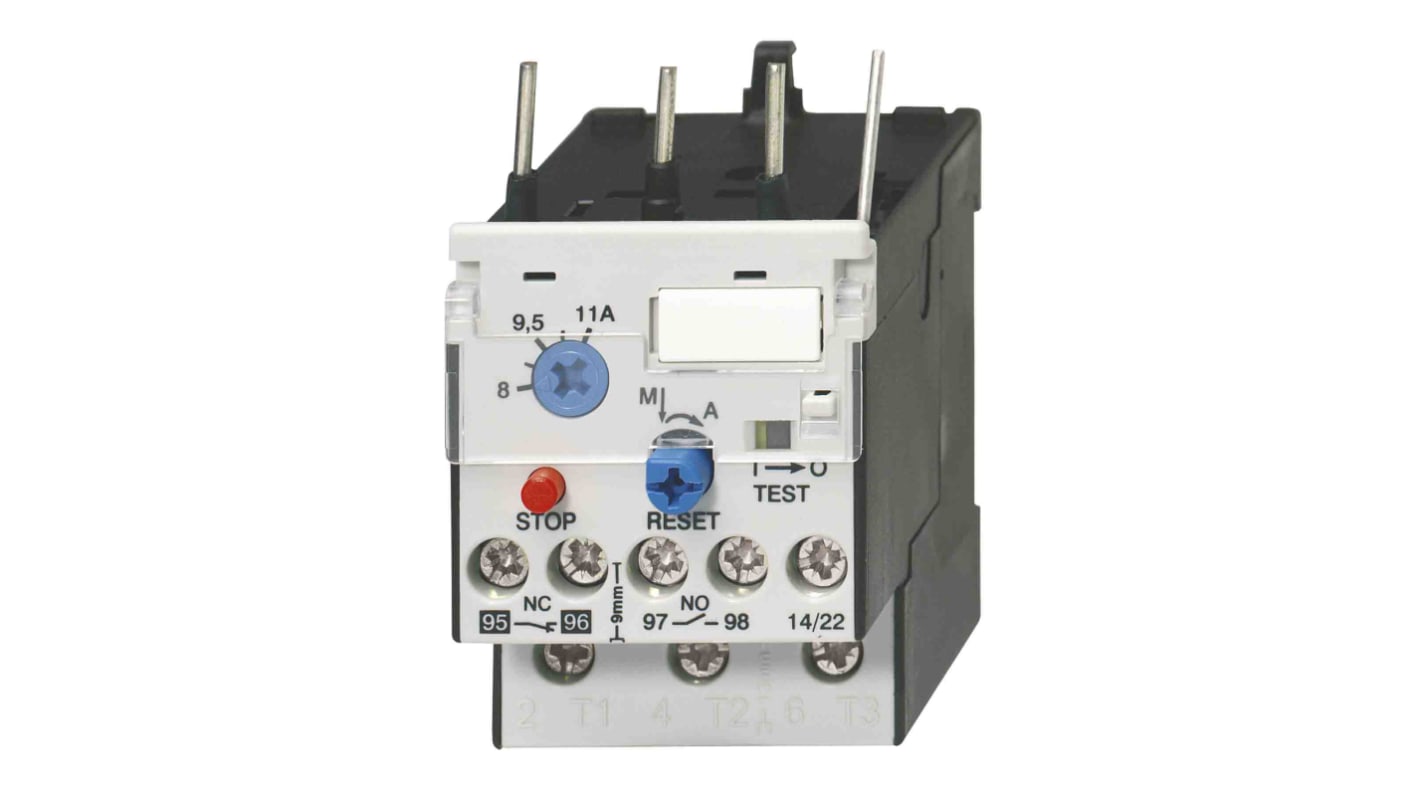

Omron, J7TKN Thermal Overload Relay, 11A, 8 A F.L.C, 11A Contact Rating, 15 kW 3P
- RS Stock No.:
- 214-6943
- Mfr. Part No.:
- J7TKN-B-2E7
- Brand:
- Omron
Subtotal (1 unit)*
£44.28
(exc. VAT)
£53.14
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £44.28 |
*price indicative
- RS Stock No.:
- 214-6943
- Mfr. Part No.:
- J7TKN-B-2E7
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| FLC Motor Rating | 11, 8A | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 11A | |
| Series | J7TKN | |
| Mount Type | Direct | |
| Pole and Throw Configuration | 3P | |
| Power Rating | 15kW | |
| Reset Method | Automatic & Manual | |
| Width | 45mm | |
| Minimum Operating Temperature | -25°C | |
| Adjustable Current Range | 1.8 to 2.7 A | |
| Length | 126.5mm | |
| Contact Voltage | 690V | |
| Maximum Operating Temperature | 60°C | |
| Depth | 70mm | |
| Standards/Approvals | EN/IEC 60947-4-1, IEC 60947-4-1, UL, VDE 0660 | |
| Select all | ||
|---|---|---|
Brand Omron | ||
FLC Motor Rating 11, 8A | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 11A | ||
Series J7TKN | ||
Mount Type Direct | ||
Pole and Throw Configuration 3P | ||
Power Rating 15kW | ||
Reset Method Automatic & Manual | ||
Width 45mm | ||
Minimum Operating Temperature -25°C | ||
Adjustable Current Range 1.8 to 2.7 A | ||
Length 126.5mm | ||
Contact Voltage 690V | ||
Maximum Operating Temperature 60°C | ||
Depth 70mm | ||
Standards/Approvals EN/IEC 60947-4-1, IEC 60947-4-1, UL, VDE 0660 | ||
The Omron J7TKN series thermal overload relay for motor contactor J7KN-10 to J7KN-40. It has manual and auto reset function and has rated voltage of 690 V. It has power rating of 4 to 15 kw.
Ambient operation temperature -25 to 60 °C
Direct and separate mounting
Single phasing sensivity
Finger proof
