Allen Bradley, BULLETIN Overload Relay 1 NO/1 NC, 1A, 5 A F.L.C, 5A Contact Rating, 690V
- RS Stock No.:
- 213-2263
- Mfr. Part No.:
- 193-1EFCB
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£59.10
(exc. VAT)
£70.92
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
- Plus 6 unit(s) shipping from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £59.10 |
*price indicative
- RS Stock No.:
- 213-2263
- Mfr. Part No.:
- 193-1EFCB
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| FLC Motor Rating | 1, 5A | |
| Product Type | Overload Relay | |
| Relay Contact Current | 5A | |
| Mount Type | Direct | |
| Series | BULLETIN | |
| Normal State Configuration | 1 NO/1 NC | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20 | |
| Width | 44.8mm | |
| Adjustable Current Range | 1 to 5 A | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 65°C | |
| Length | 86.63mm | |
| Contact Voltage | 690V | |
| Standards/Approvals | C-Tick, cUL, cULus, EAC, RoHS, ABS, CCC, CE, CSA | |
| Control Voltage | 690V | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
FLC Motor Rating 1, 5A | ||
Product Type Overload Relay | ||
Relay Contact Current 5A | ||
Mount Type Direct | ||
Series BULLETIN | ||
Normal State Configuration 1 NO/1 NC | ||
Reset Method Automatic & Manual | ||
IP Rating IP20 | ||
Width 44.8mm | ||
Adjustable Current Range 1 to 5 A | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 65°C | ||
Length 86.63mm | ||
Contact Voltage 690V | ||
Standards/Approvals C-Tick, cUL, cULus, EAC, RoHS, ABS, CCC, CE, CSA | ||
Control Voltage 690V | ||
RoHS Status: Not Applicable

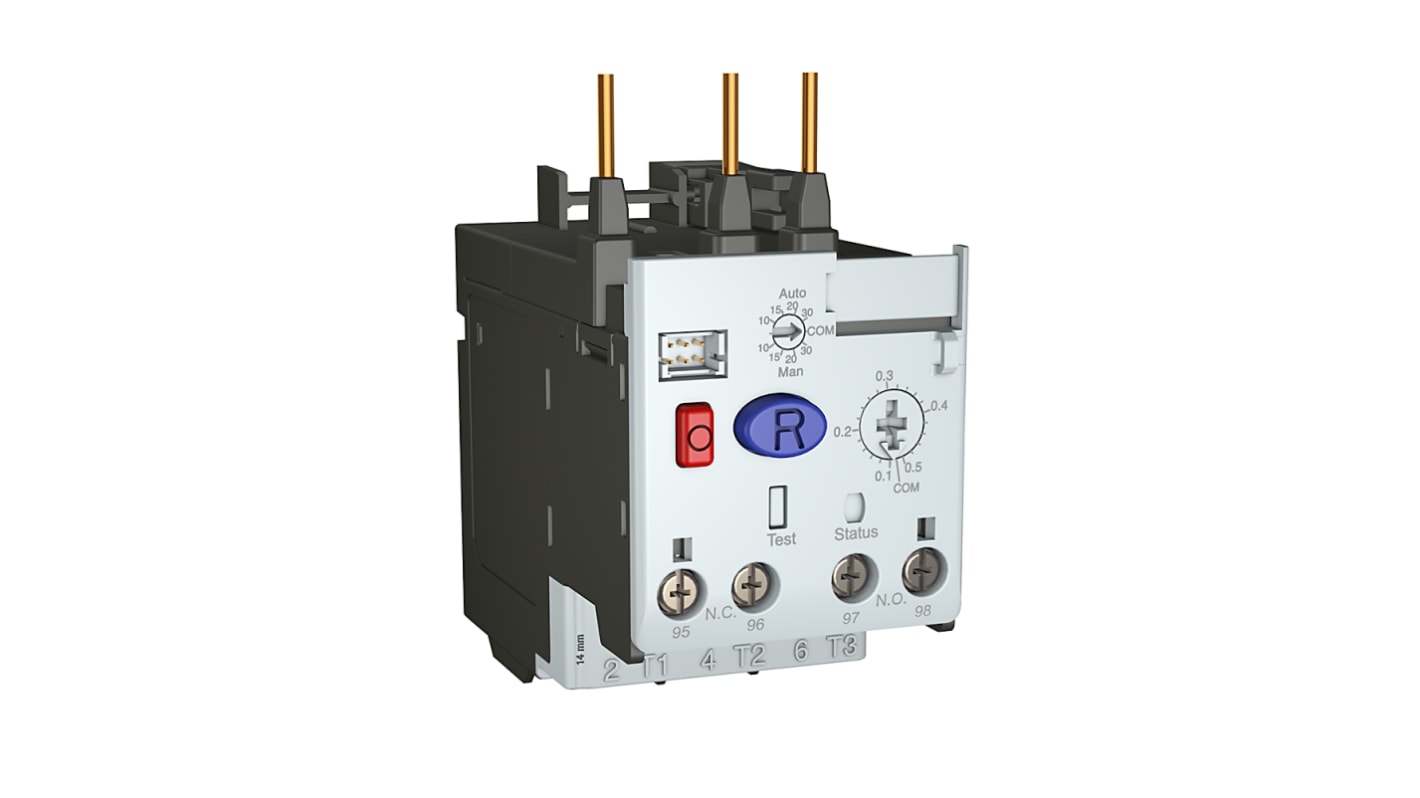

The Rockwell Automation solid-state design of the 193-1EF plus overload relay provide accurate, reliable and repeatable protection. It can mount directly to bulletin 100-C IEC contactor and has maximum rated current 5 A. The E100 basic model has two user-adjustable trip class settings of 10,15,20 and 30. The 5:1 wide current adjustment range to cover a variety of motor applications in a single device.
Self-powered
Phase loss protection
Integration with both IEC and NEMA contactor
Simple configuration
