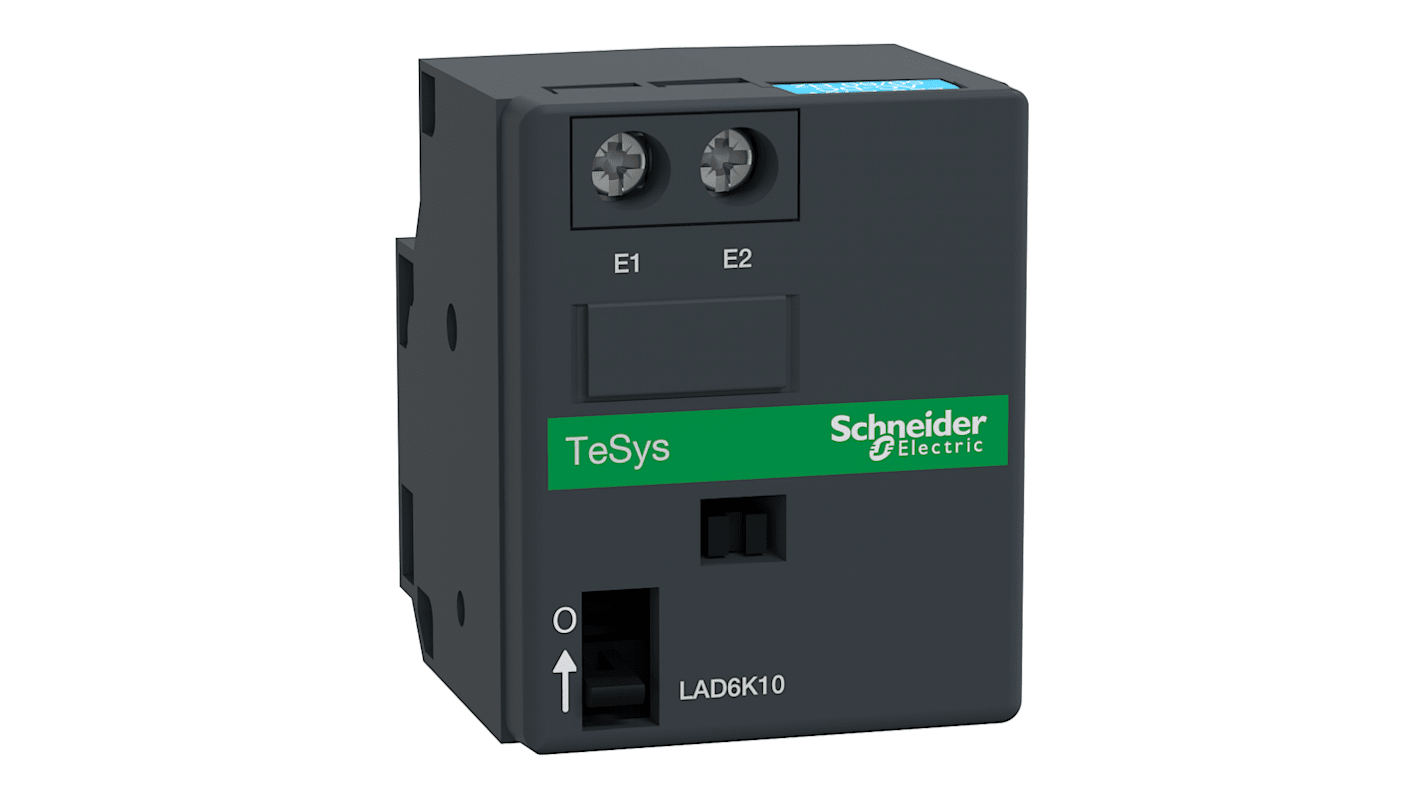

Schneider Electric LAD6 Contactor Latching Block for use with LC1 Series
- RS Stock No.:
- 400-2022
- Mfr. Part No.:
- LAD6K10M
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£78.87
(exc. VAT)
£94.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 22 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £78.87 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 400-2022
- Mfr. Part No.:
- LAD6K10M
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Contactor Latching Block | |
| Accessory Type | Latching Block | |
| For Use With | LC1 Series | |
| Standards/Approvals | No | |
| Better World Product | Yes | |
| Series | LAD6 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Contactor Latching Block | ||
Accessory Type Latching Block | ||
For Use With LC1 Series | ||
Standards/Approvals No | ||
Better World Product Yes | ||
Series LAD6 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Mechanical Latch Block
On coil energisation the mechanical latch is engaged & holds the armature closed.This feature enables the contactors state to be maintained when re-starting after an interrupted cycle & allows power consumption reduction by enabling de-energisation of the contactor coil.
Remotely actuated or by front panel button
Electrical delatching pulse must be greater than 100ms
Front mounting
Note
The unlatch coil & the contactor or relay must not be energised simultaneously. Maximum on time is 30 seconds (not continuously rated). Maximum operation frequency is 36 per hour.
