Schneider Electric TeSys Pneumatic Timer for use with TeSys D, TeSys Deca, TeSys F, 690 V
- RS Stock No.:
- 394-9835
- Distrelec Article No.:
- 136-22-646
- Mfr. Part No.:
- LADT2
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£90.83
(exc. VAT)
£109.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 76 unit(s) shipping from 06 October 2025
- Plus 25 unit(s) shipping from 06 October 2025
- Plus 27 unit(s) shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £90.83 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£99.19
(exc. VAT)
£119.03
(inc. VAT)
- RS Stock No.:
- 394-9835
- Distrelec Article No.:
- 136-22-646
- Mfr. Part No.:
- LADT2
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Accessory Type | Pneumatic Timer | |
| For Use With | TeSys D, TeSys Deca, TeSys F | |
| Range | TeSys | |
| Timer Function | Analogue (ON Delay) | |
| Timer Range | 1 → 30s | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Voltage Rating | 690 V | |
| Current Rating | 10 A | |
| Series | D | |
| Contact Configuration | 1NO + 1NC | |
| Mounting Type | Front Mount | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Accessory Type Pneumatic Timer | ||
For Use With TeSys D, TeSys Deca, TeSys F | ||
Range TeSys | ||
Timer Function Analogue (ON Delay) | ||
Timer Range 1 → 30s | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Voltage Rating 690 V | ||
Current Rating 10 A | ||
Series D | ||
Contact Configuration 1NO + 1NC | ||
Mounting Type Front Mount | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

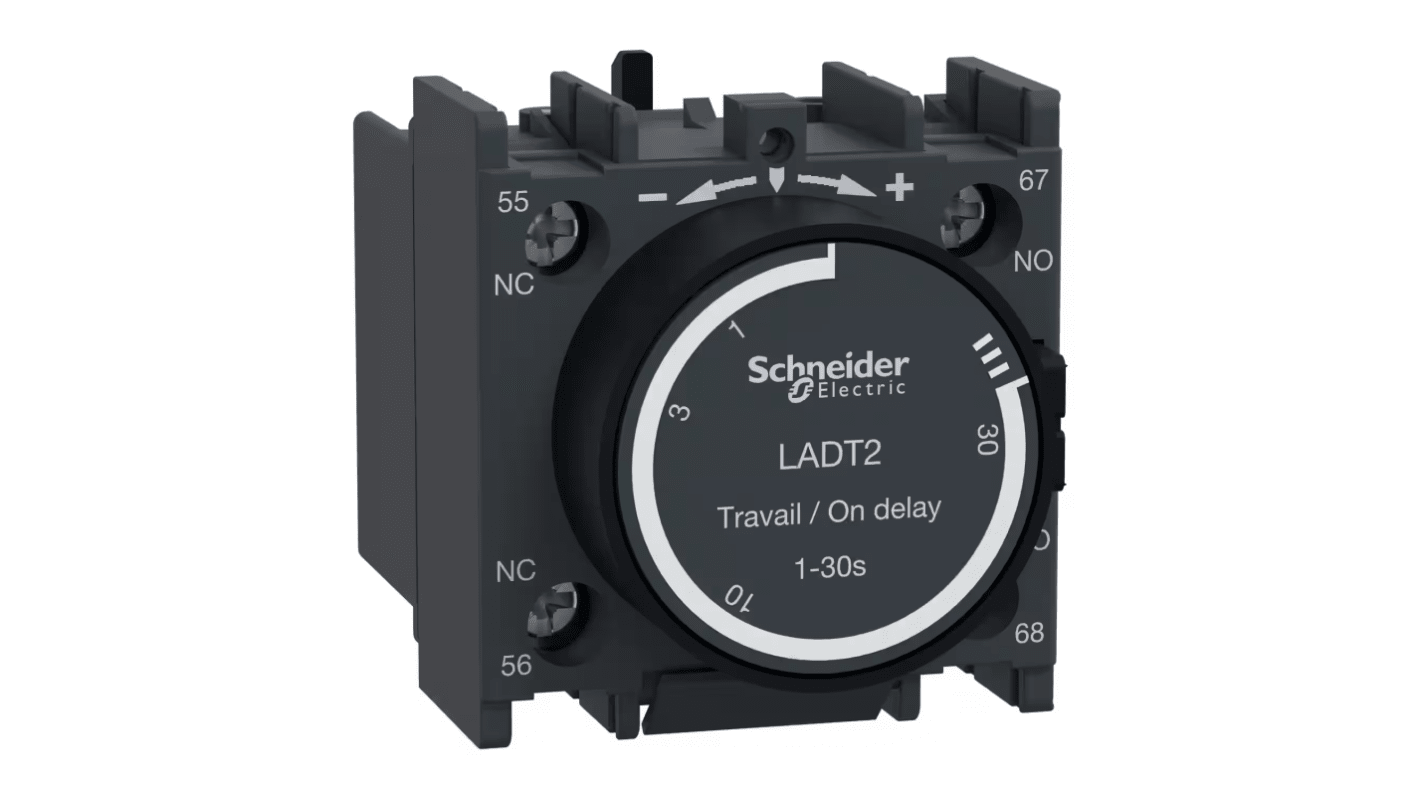

Schneider Electric Series D Pneumatic Timer, 1 to 30 s Timer Range, 690V Voltage Rating - LADT2
This pneumatic timer serves as a time delay auxiliary contact block designed for efficient operation within industrial settings. With a robust build to endure various conditions, it features a front mount design, compact dimensions of 48mm height, 44mm width, and 61mm depth, making it a versatile component for automation applications. Compatible with the TeSys range, including TeSys D, TeSys Deca, and TeSys F, this analogue timer operates at a voltage rating of 690V and provides an adjustable timer range from 1 to 30 seconds.
Features & Benefits
• Offers an analogue ON delay timer function for precise control
• Supports a wide timer range of 1 to 30 seconds for flexibility
• Rated for 690V AC operation, ensuring high performance in demanding environments
• Features 1NO + 1NC contact configuration for versatile connectivity
• Incorporates front mount design for straightforward installation
• Adept at handling up to 10A current rating for heavy-duty applications
• Supports a wide timer range of 1 to 30 seconds for flexibility
• Rated for 690V AC operation, ensuring high performance in demanding environments
• Features 1NO + 1NC contact configuration for versatile connectivity
• Incorporates front mount design for straightforward installation
• Adept at handling up to 10A current rating for heavy-duty applications
Applications
• Utilised with TeSys D and TeSys Deca for enhanced control
• Ideal for sequential operation in machinery and automation processes
• Employed in motor control circuits for time delay operations
• Suitable for integration with TeSys F products in industrial setups
• Applied in environments requiring reliable time delay mechanisms
• Ideal for sequential operation in machinery and automation processes
• Employed in motor control circuits for time delay operations
• Suitable for integration with TeSys F products in industrial setups
• Applied in environments requiring reliable time delay mechanisms
How does the timer's ON delay function improve operational efficiency?
The ON delay function allows for a controlled startup sequence, reducing the risk of mechanical stress and prolonging the lifespan of connected components. This prevents potential failures during sudden energisation.
What are the termination options available for wire connections?
It supports screw clamp terminals that accommodate cables ranging from 1 to 2.5mm², ensuring secure connections for both flexible and rigid wires, which simplifies installation.
What kind of environmental conditions can this timer withstand?
This device is rated for operation in ambient temperatures between -40°C and 70°C, making it suitable for a wide variety of industrial environments, including extremes.
How does the mechanical durability impact long-term use?
With a durability rating of 5 million cycles, the device assures reliable operation over time, minimising maintenance needs and enhancing productivity in continuous use scenarios.
