Flexicon Flexible Conduit, 16mm Nominal Diameter, Galvanised Steel, Black

RS Stock No.:: 880-8256
Mfr. Part No.:: FSU16B-50M
Brand:: Flexicon

Flexicon Flexible Conduit, 16mm Nominal Diameter, Galvanised Steel, Black

11 In stock - FREE next working day delivery available

Price 1 Reel of 50 Metre(s)

£166.77

(exc. VAT)

£200.12

(inc. VAT)

Reel(s)	Per Reel	Per Metre*
1 - 4	£166.77	£3.335
5 - 14	£141.76	£2.835
15 +	£134.75	£2.695

*price indicative

RS Stock No.:: 880-8256
Mfr. Part No.:: FSU16B-50M
Brand:: Flexicon

Technical Reference

Galvanised Steel Flexible Conduit Data Sheet

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

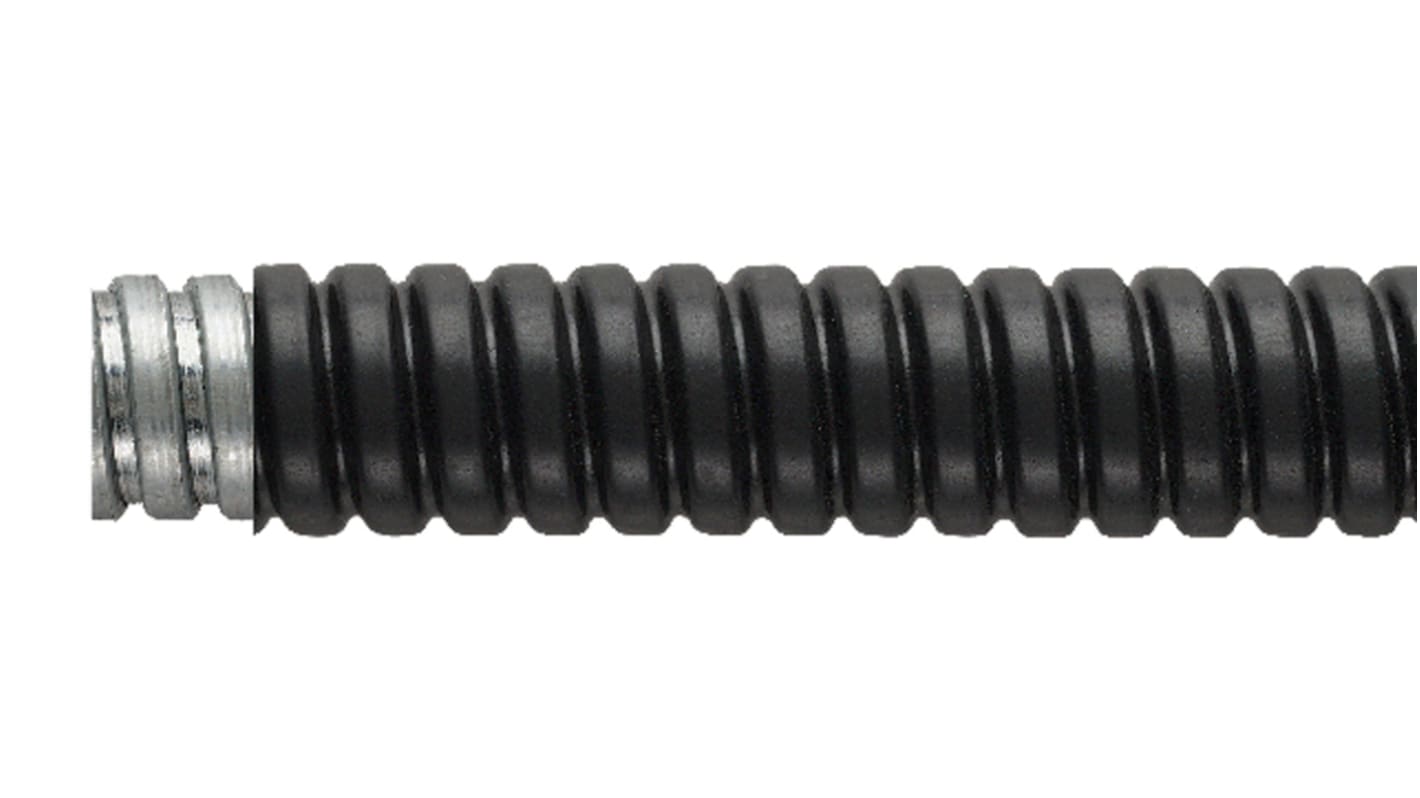

FSU Flexible Conduit, Galvanised Steel with Black PVC Coating

Flexicon FSU flexible conduit. Galvanised steel, helically wound with black PVC coating. Typical applications include general factory wiring and connections to machines.

PVC coated galvanised steel
IP Rating: IP54 with standard fittings and IP65 with FSU Type C compression fittings
Compression strength (20mm nominal size): 350kg/100mm
Pull off strength (20mm nominal size): 120kg
Minimum bend radius (for 20mm nominal size conduit): 45mm
High fatigue life
Temperature range: -15°C to +70°C
Self extinguishing
High UV resistance, suitable for outdoor use

Approvals

CE
BS EN IEC 61386
REACh
RoHS

Flexicon Flexible Conduit

Specifications

Attribute	Value
Nominal Diameter	16mm
Material	Galvanised Steel
Conduit Type	Flexible
Series	FSU
Outer Diameter	17mm
Colour	Black
Interior Diameter	13mm
Length	50m
IP Rating	IP54
Coating Material	PVC
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-15°C
Standards Met	CE Compliant, RoHS Compliant
Minimum Bend Radius	40 mm
