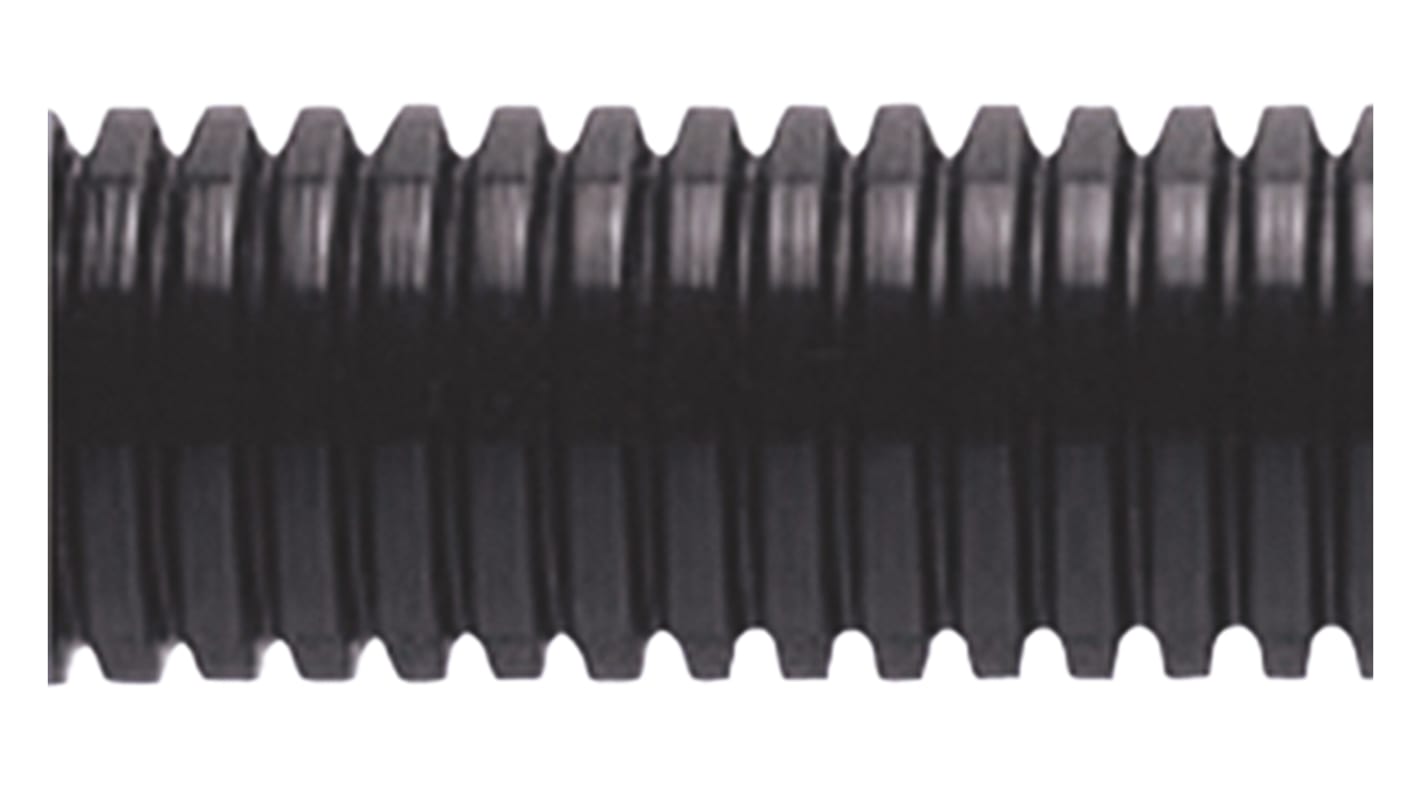

Adaptaflex, 34 mm Nominal Diameter, Uncoated, Plastic, Black
- RS Stock No.:
- 829-9996
- Mfr. Part No.:
- 7TCA296000R2251 PAFS34/BL/50M
- Brand:
- Adaptaflex
Bulk discount available
Subtotal (1 reel of 50 metres)*
£546.22
(exc. VAT)
£655.46
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 16 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 9 | £546.22 | £10.924 |
| 10 - 49 | £518.91 | £10.378 |
| 50 + | £491.60 | £9.832 |
*price indicative
- RS Stock No.:
- 829-9996
- Mfr. Part No.:
- 7TCA296000R2251 PAFS34/BL/50M
- Brand:
- Adaptaflex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Adaptaflex | |
| Nominal Diameter | 34mm | |
| Product Type | Conduit | |
| Coating Material | Uncoated | |
| Material | Plastic | |
| Series | PAFS | |
| Colour | Black | |
| Length | 50m | |
| IP Rating | IP69K, IP67, IP68, IP66, IP40, IP65 | |
| Resistance Features | UV Protection, Halogen Free, Chemical Resistant, Low Fire Hazard, Self-Extinguishing | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 120°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | NFF16-101 I3 F3, ST2, BSI Kitemark KM-35161, lUL, SR2, UL94 V2, F3, ASTM E662, IEC 61386, DeutschBahn S4, NFR 16-10/12 I3 | |
| Minimum Bend Radius | 60mm | |
| Select all | ||
|---|---|---|
Brand Adaptaflex | ||
Nominal Diameter 34mm | ||
Product Type Conduit | ||
Coating Material Uncoated | ||
Material Plastic | ||
Series PAFS | ||
Colour Black | ||
Length 50m | ||
IP Rating IP69K, IP67, IP68, IP66, IP40, IP65 | ||
Resistance Features UV Protection, Halogen Free, Chemical Resistant, Low Fire Hazard, Self-Extinguishing | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 120°C | ||
Hazardous Area Certification No | ||
Standards/Approvals NFF16-101 I3 F3, ST2, BSI Kitemark KM-35161, lUL, SR2, UL94 V2, F3, ASTM E662, IEC 61386, DeutschBahn S4, NFR 16-10/12 I3 | ||
Minimum Bend Radius 60mm | ||
- COO (Country of Origin):
- GB
ABB PAS Series Conduit, 34mm Nominal Diameter, 50m Length - 7TCA296000R2251 PAFS34/BL/50M
This conduit provides a robust pathway for cable protection in industrial environments, designed to resist environmental and mechanical stresses while remaining lightweight and uncoated. It is supplied as a continuous 50m length in black and is intended for routing and protecting wiring where exposure to chemicals, UV and varying temperatures is expected.
Features & Benefits
• Rated for continuous operation up to 120°C to handle elevated temperatures
• IP69K and IP68 ingress protection for high-pressure washdowns
• Halogen-free composition reducing toxic emissions during combustion
• Self-extinguishing material meeting UL94 V2 for improved fire behaviour
• UV-protective outer surface to prevent degradation from sunlight
• Minimum bend radius 60mm to aid flexible routing in Compact installations
• IP69K and IP68 ingress protection for high-pressure washdowns
• Halogen-free composition reducing toxic emissions during combustion
• Self-extinguishing material meeting UL94 V2 for improved fire behaviour
• UV-protective outer surface to prevent degradation from sunlight
• Minimum bend radius 60mm to aid flexible routing in Compact installations
**Applications**
• Suitable for machinery cabling in automation plants
• Ideal for wiring looms on rolling stock and transport systems
• Used for conduit runs in chemical processing facilities
• Can be used for outdoor electrical installations exposed to sunlight
• Used with control cabinets and junction assemblies in factories
• Ideal for wiring looms on rolling stock and transport systems
• Used for conduit runs in chemical processing facilities
• Can be used for outdoor electrical installations exposed to sunlight
• Used with control cabinets and junction assemblies in factories
What approvals indicate suitability for industrial installations?
It holds multiple recognitions including IEC 61386 and a BSI Kitemark demonstrating compliance with conduit-specific standards for mechanical and environmental performance.
How does the product behave when exposed to hydrocarbons or aggressive agents?
The material offers chemical resistance that limits degradation when in contact with a range of industrial fluids, maintaining structural integrity under routine exposure.
What temperature range is safe for installation and operation?
It can be installed and operated in ambient conditions down to -5°C and is rated for use up to 120°C without compromising function.
How does the conduit perform in terms of fire-related smoke and flame characteristics?
Test classifications include UL94 V2 and low-fire-hazard, self-extinguishing properties, along with compliance to standards assessing smoke generation such as ASTM E662.
