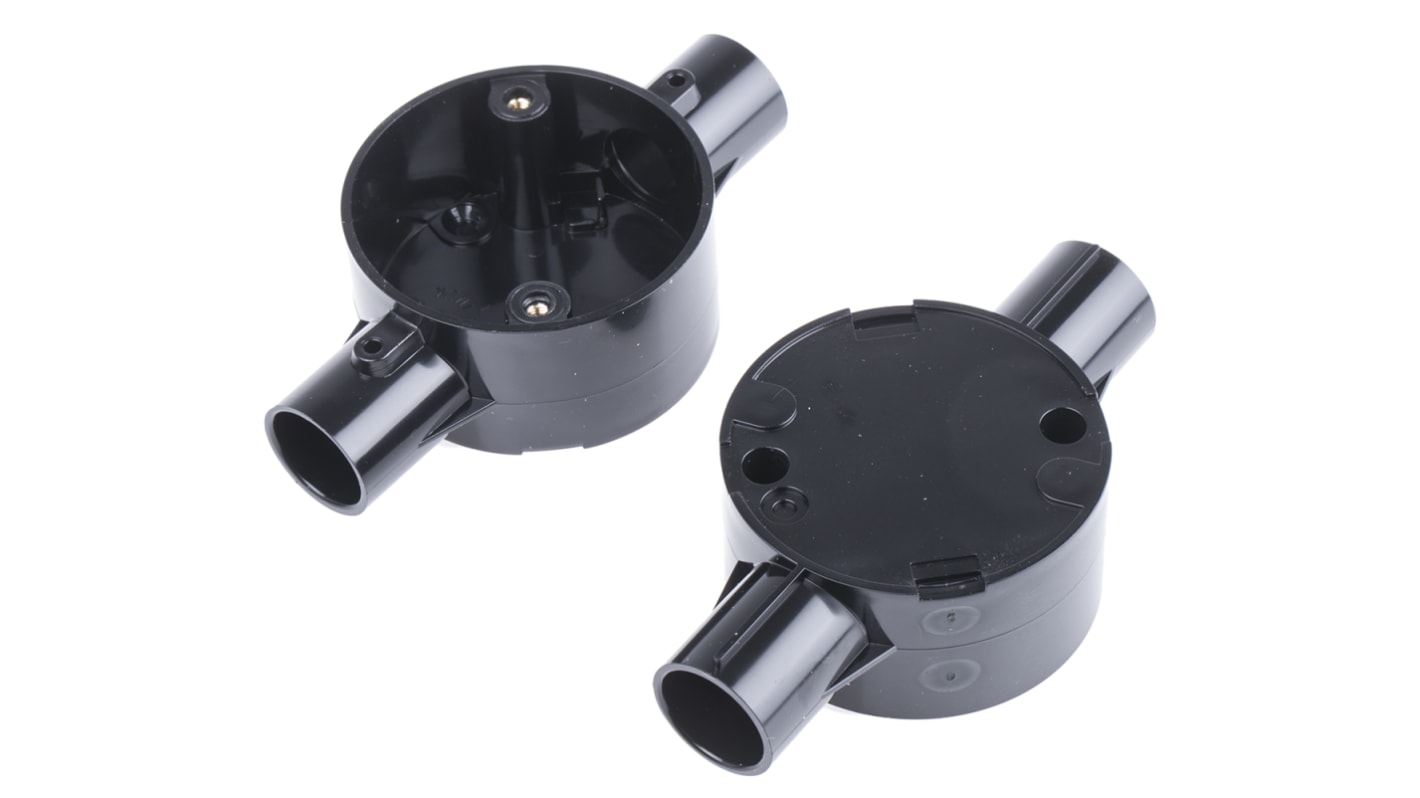

Schneider Electric Through Box, Conduit Fitting, 20mm Nominal Size, PVC, Black
- RS Stock No.:
- 601-760
- Mfr. Part No.:
- 20CJB3B
- Brand:
- Schneider Electric
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£1.624
(exc. VAT)
£1.949
(inc. VAT)
- RS Stock No.:
- 601-760
- Mfr. Part No.:
- 20CJB3B
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Nominal Size | 20mm | |
Fitting Type | Through Box | |
Material | PVC | |
Colour | Black | |
Standards Met | BS4607 | |
Series | 20CJB | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Nominal Size 20mm | ||
Fitting Type Through Box | ||
Material PVC | ||
Colour Black | ||
Standards Met BS4607 | ||
Series 20CJB | ||
RoHS Status: Exempt
Schneider Electric Mita Conduit Fitting, 20mm Nominal size, Through Box Fitting Type - 20CJB3W
This conduit fitting is designed for efficient cable management in electrical installations. As a through box fitting for 20mm conduit systems, it offers a practical solution for connecting tubes while maintaining a clean aesthetic with its white uPVC material. The junction box is suitable for various electrical applications, enabling secure connections and providing durability in different environments.
Features & Benefits
• Durable construction from uPVC ensures long-lasting performance
• Designed for 20mm conduit, optimising compatibility with standard installations
• Maximum load capacity of 3 kg at 60°C enhances reliability
• Suitable for use with insert clips, aiding in lighting unit suspension
• Multiple cable entries facilitate versatile connectivity options
• Conforms to BS 4607-5 standards for safety and compliance
• Designed for 20mm conduit, optimising compatibility with standard installations
• Maximum load capacity of 3 kg at 60°C enhances reliability
• Suitable for use with insert clips, aiding in lighting unit suspension
• Multiple cable entries facilitate versatile connectivity options
• Conforms to BS 4607-5 standards for safety and compliance
Applications
• Utilised for connecting electrical conduits securely in installations
• Ideal for use in automated systems requiring neat cable management
• Suitable for mechanical setups needing reliable junction solutions
• Compatible with various electrical apparatus for effective connectivity
• Ideal for use in automated systems requiring neat cable management
• Suitable for mechanical setups needing reliable junction solutions
• Compatible with various electrical apparatus for effective connectivity
How does the choice of material affect the performance?
The uPVC construction provides excellent durability and resistance to environmental factors, ensuring the longevity of connections in various installations.
What is the significance of the load capacity mentioned?
A maximum load of 3 kg at 60°C indicates the fitting's strength, allowing for secure electrical connections without risk of failure.
How does this fitting support lighting unit installations?
It is specifically designed to be used with insert clips, enabling safe and efficient suspension of lighting units, enhancing installation versatility.
Standards
BS4607 & BS6099
