RS PRO Component Tester, Resistance Measurement Resolution 100mΩ, Capacitance Measurement Resolution 0.1pF Component,
- RS Stock No.:
- 123-3221
- Brand:
- RS PRO
Discontinued product
- RS Stock No.:
- 123-3221
- Brand:
- RS PRO
- COO (Country of Origin):
- TW

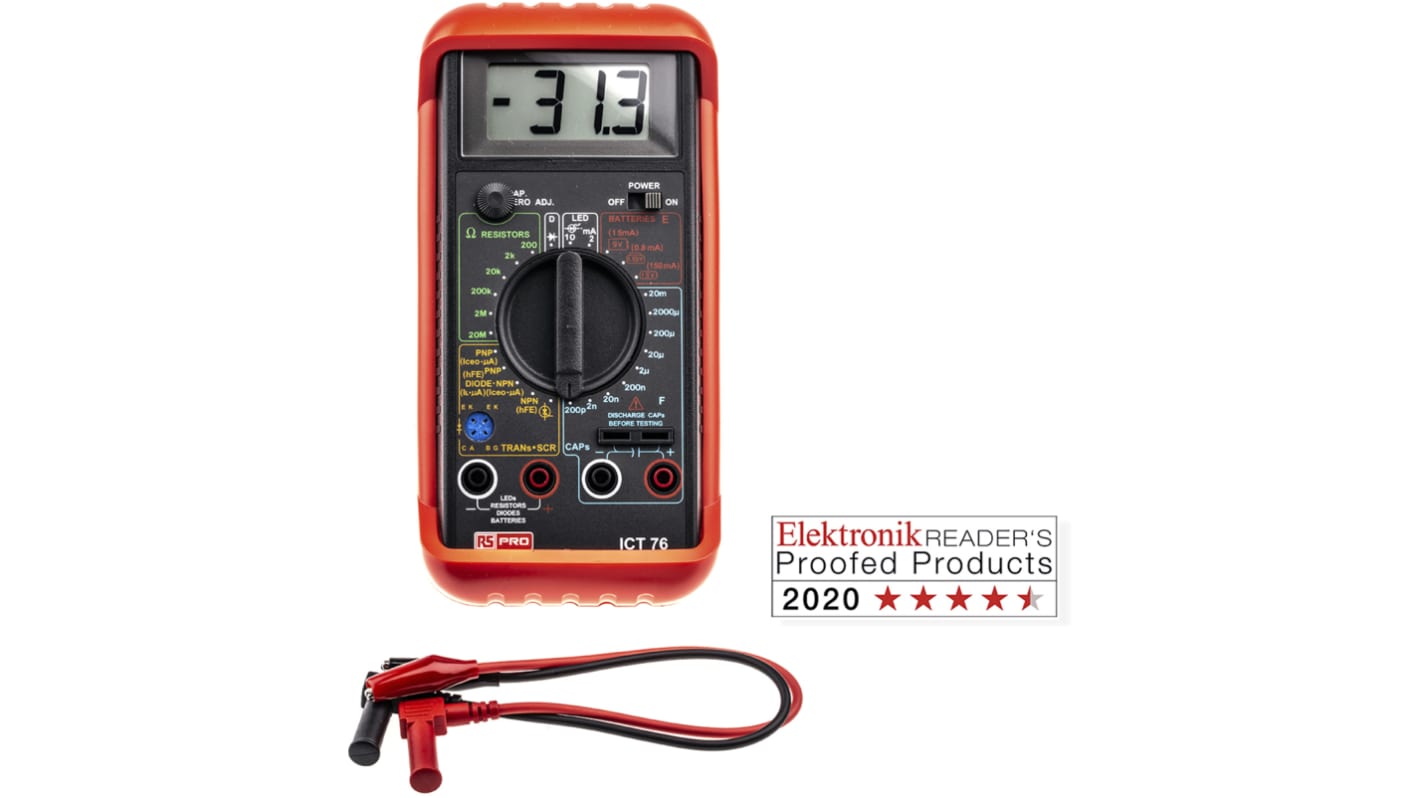

RS PRO ICT 76 Component Tester
From RS PRO comes a low cost, battery powered component tester with a 3 digit LCD display and a maximum reading of 1999. The RS PRO ICT 76 measures a number of electrical parameters which include resistance, capacitance, diode and others making it ideal for use in field service and production environments.
Features and Benefits
- Measures resistance and capacitance up to 20mF
- Transistor hFE measurement
- Transistor leakage current measurement
- SCRs/thyristors test
- Diode Test
- LED test
- Silicon controlled rectifier test - good/bad test result
- Battery test
- 2000 count digital display
- Low battery indication and overload protection
- Dimensions: 175 mm x 84 mm x 31 mm
- Tilt stand for easier reading
- Weight (including battery) 340 g without holster, 550 g with holster
Typical Applications
Component & IC Testers are devices used to test ICs (Integrated Circuits) and SMD (Surface Mounting Devices) and measure a range of electrical parameters such as voltage, resistance, capacitance, diode, continuity and more. Component & IC testing devices are available in a range of devices, many of which are portable hand held devices. These testers are commonly used in applications such as:
- Production
- Trouble shooting
- Maintenance
FAQs
Does this require batteries?
RS PRO ICT 76 is powered by 9 V alkaline battery.
RS PRO ICT 76 is powered by 9 V alkaline battery.
Supplied with
ICT76 component tester, set of test leads (1 x black & 1 x red), operating manual and protective holster
Attribute | Value |
---|---|
Resistance Measurement Resolution | 100mΩ |
Capacitance Measurement Resolution | 0.1pF |
Tester Type | Component, IC |
Display Type | LCD |
Battery Life | 200 h |
Battery Type | 9V |
Power Source | Battery |
Weight | 330 (with Battery)g |
Height | 175mm |
Length | 84mm |
Maximum Capacitance Measurement | 20mF |
Maximum Operating Temperature | +50°C |
Maximum Resistance Measurement | 20 MΩ |
Minimum Resistance Measurement | 200Ω |
Minimum Capacitance Measurement | 20pF |
Width | 31mm |
Model Number p | ICT76 |
Minimum Operating Temperature | 0°C |
