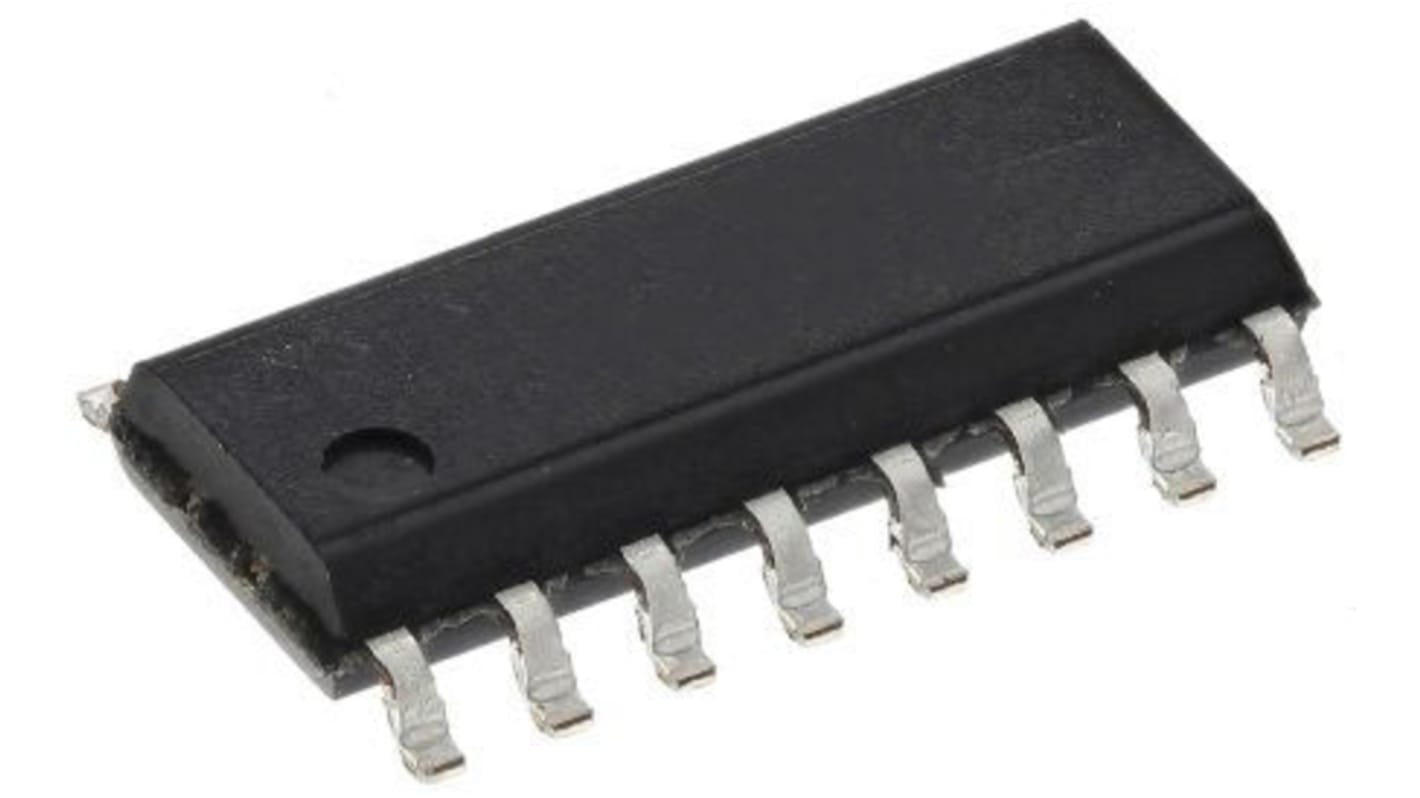

MAX969EEE+ Maxim Integrated Comparator Open Drain O/P, 10 μs 5.5 V 1.6 V 16-Pin QSOP
- RS Stock No.:
- 190-6634
- Mfr. Part No.:
- MAX969EEE+
- Brand:
- Maxim Integrated
Subtotal (1 pack of 5 units)*
£14.10
(exc. VAT)
£16.90
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 185 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £2.82 | £14.10 |
*price indicative
- RS Stock No.:
- 190-6634
- Mfr. Part No.:
- MAX969EEE+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Comparator Type | Micro Power Comparator | |
| Product Type | Comparator | |
| Mount Type | Surface | |
| Package Type | QSOP | |
| Output Type | Open Drain | |
| Typical Response Time | 10μs | |
| Pin Count | 16 | |
| Minimum Supply Voltage | 1.6V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 4.98mm | |
| Height | 1.65mm | |
| Standards/Approvals | No | |
| Width | 3.99 mm | |
| Supply Current | 22μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Comparator Type Micro Power Comparator | ||
Product Type Comparator | ||
Mount Type Surface | ||
Package Type QSOP | ||
Output Type Open Drain | ||
Typical Response Time 10μs | ||
Pin Count 16 | ||
Minimum Supply Voltage 1.6V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 4.98mm | ||
Height 1.65mm | ||
Standards/Approvals No | ||
Width 3.99 mm | ||
Supply Current 22μA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
Ultra-Low Single-Supply Operation down to +1.6V
Rail-to-Rail Common-Mode Input Voltage Range
3μA Quiescent Supply Current per Comparator
Open-Drain Outputs Swing Beyond VCC
1.235V ±1.5% Precision Internal Reference (MAX965/967/968/969)
10μs Propagation Delay (50mV overdrive)
Available in Space-Saving Packages:
8-Pin μMAX (MAX965–MAX968)
16-Pin QSOP (MAX969/MAX970)
Applications
2-Cell Battery-Powered/Portable Systems
Ground/Supply Sensing
Mobile Communications
Threshold Detectors/Discriminators
Voltage-Level Translation
Window Comparators
