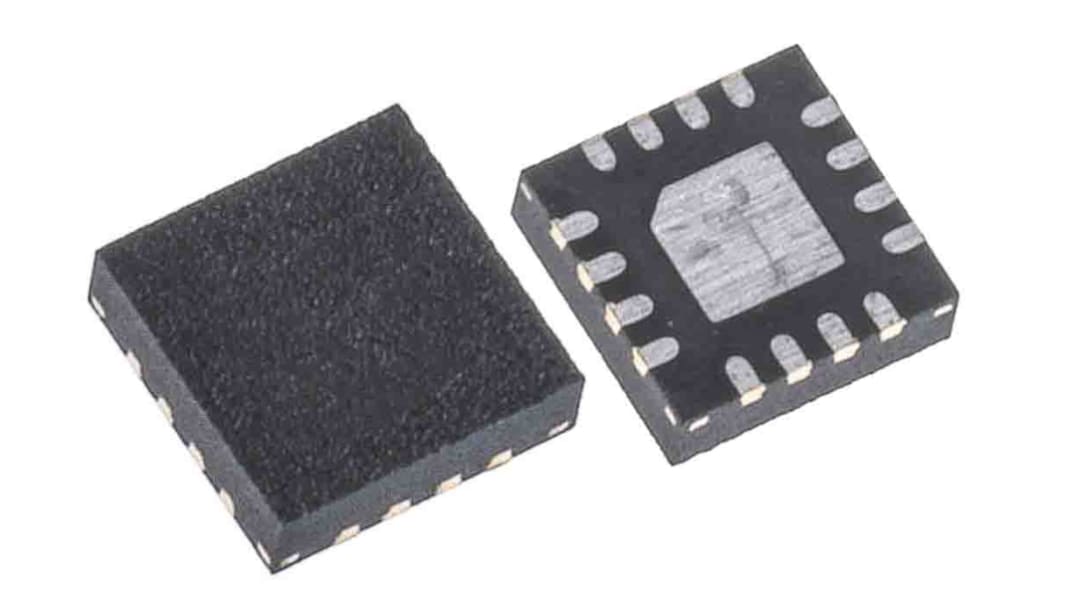

LM2902Q4T STMicroelectronics, Quad Comparator, 3 → 30 V 16-Pin QFN

View all Comparators

Subtotal (1 pack of 25 units)*

£4.675

(exc. VAT)

£5.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 3,675 unit(s) shipping from 27 October 2025
  • Plus 999,996,300 unit(s) shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
25 +£0.187£4.68

*price indicative

Packaging Options:
RS Stock No.:
189-1939
Mfr. Part No.:
LM2902Q4T
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Comparator Type

Low Power

Mounting Type

Surface Mount

Package Type

QFN

Power Supply Type

Dual, Single

Number of Channels per Chip

4

Pin Count

16

Typical Single Supply Voltage

3 → 30 V

Dimensions

3.1 x 3.1 x 0.95mm

Length

3.1mm

Width

3.1mm

Height

0.95mm

Typical Dual Supply Voltage

±1.5 to ±15V

Maximum Operating Temperature

+125 °C

Typical Voltage Gain

100 dB

Minimum Operating Temperature

-40 °C

This circuit consists of four independent, high-gain operational amplifiers (op amps) which employ internal frequency compensation and are specifically designed for automotive and industrial control systems. The device operates from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low-power supply current drain is independent from the power supply voltage magnitude.

Wide gain bandwidth: 1.3 MHz
Input common-mode voltage range includes negative rail
Large voltage gain: 100 dB
Supply current per amplifier: 375 μA
Low input bias current: 20 nA
Low input offset current: 2 nA
Wide power supply range:
Single supply: 3 V to 30 V
Dual supplies: ± 1.5 V to ± 15 V
