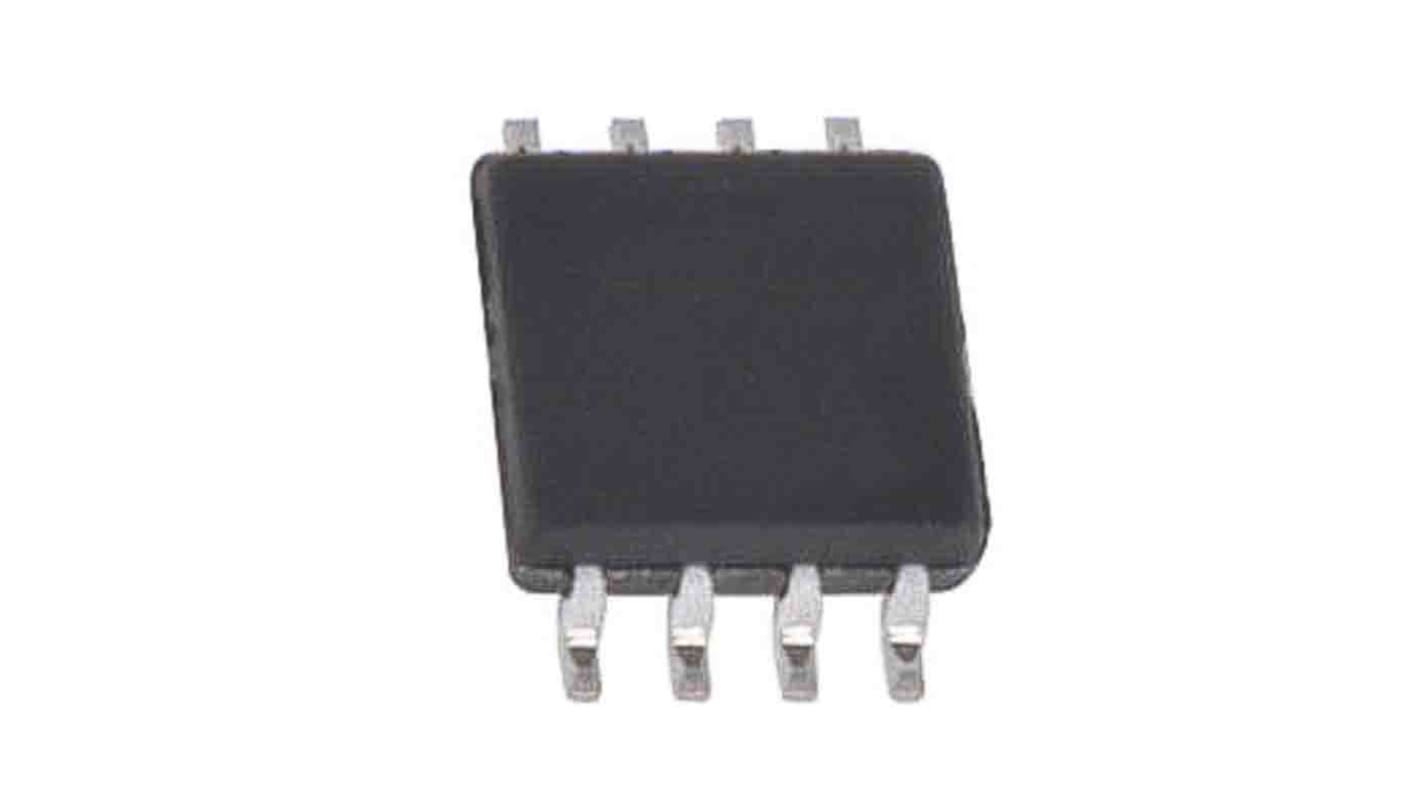

LM2903YPT STMicroelectronics, Dual Comparator, CMOS/TTL O/P, O/P, 1.3μs 2 → 36 V 8-Pin TSSOP
- RS Stock No.:
- 189-1852
- Mfr. Part No.:
- LM2903YPT
- Brand:
- STMicroelectronics
Subtotal (1 reel of 4000 units)*
£470.40
(exc. VAT)
£564.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 249,999,998 unit(s) shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £470.40 | £0.118 |
*price indicative
- RS Stock No.:
- 189-1852
- Mfr. Part No.:
- LM2903YPT
- Brand:
- STMicroelectronics
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Comparator Type | Low Power | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Power Supply Type | Dual, Single | |
| Output Type | CMOS, DTL, ECL, MOS, TTL | |
| Number of Channels per Chip | 2 | |
| Typical Response Time | 1.3µs | |
| Pin Count | 8 | |
| Typical Single Supply Voltage | 2 → 36 V | |
| Dimensions | 4.5 x 3.1 x 1.05mm | |
| Length | 4.5mm | |
| Width | 3.1mm | |
| Height | 1.05mm | |
| Minimum Operating Temperature | -40 °C | |
| Typical Voltage Gain | 200 V/mV | |
| Typical Dual Supply Voltage | ±1 to ±18V | |
| Automotive Standard | AEC-Q100 | |
| Maximum Operating Temperature | +125 °C | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Comparator Type Low Power | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Power Supply Type Dual, Single | ||
Output Type CMOS, DTL, ECL, MOS, TTL | ||
Number of Channels per Chip 2 | ||
Typical Response Time 1.3µs | ||
Pin Count 8 | ||
Typical Single Supply Voltage 2 → 36 V | ||
Dimensions 4.5 x 3.1 x 1.05mm | ||
Length 4.5mm | ||
Width 3.1mm | ||
Height 1.05mm | ||
Minimum Operating Temperature -40 °C | ||
Typical Voltage Gain 200 V/mV | ||
Typical Dual Supply Voltage ±1 to ±18V | ||
Automotive Standard AEC-Q100 | ||
Maximum Operating Temperature +125 °C | ||
