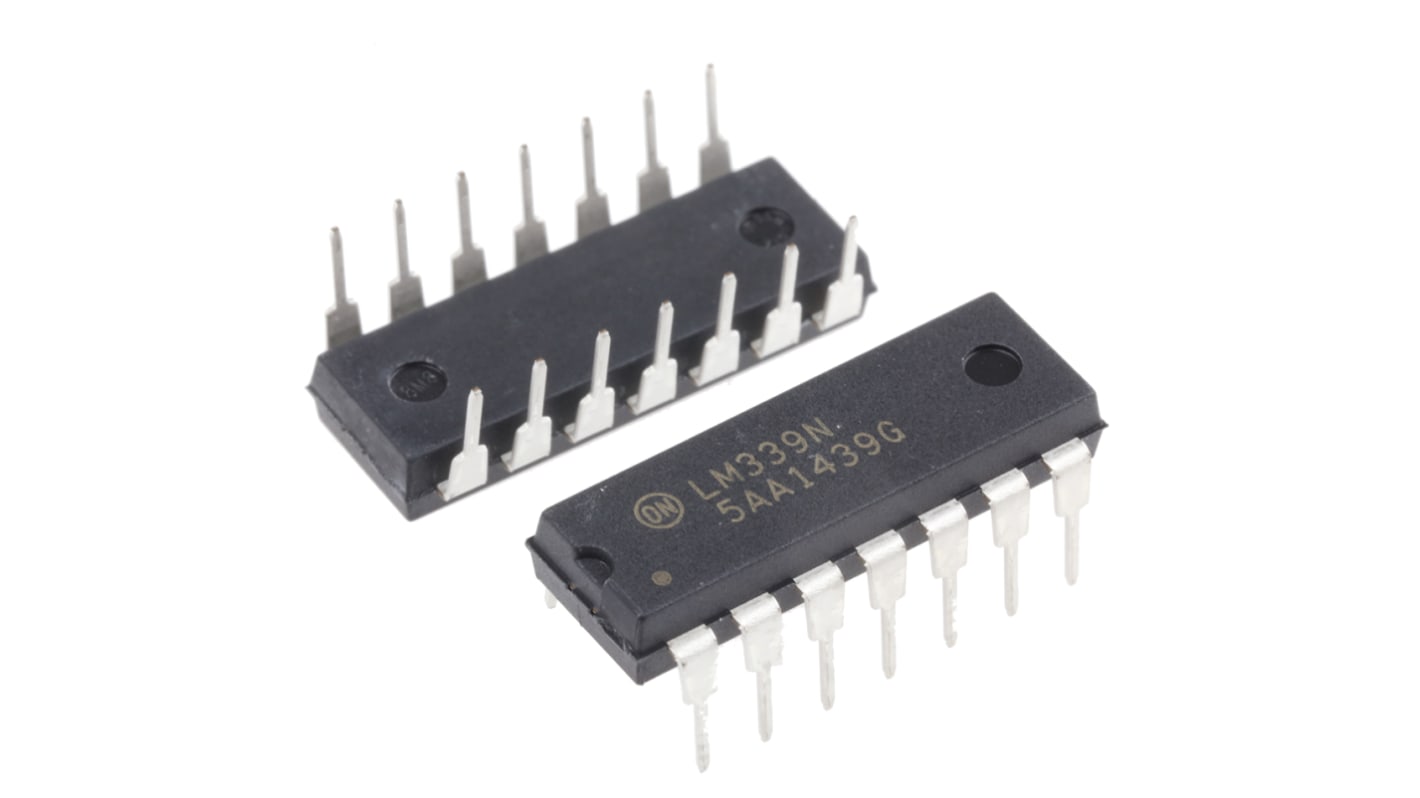

LM339NG onsemi, Quad Comparator, Open Collector O/P, 1.3μs 5 → 28 V 14-Pin PDIP
- RS Stock No.:
- 178-4707
- Mfr. Part No.:
- LM339NG
- Brand:
- onsemi
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 178-4707
- Mfr. Part No.:
- LM339NG
- Brand:
- onsemi
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Comparator Type | General Purpose | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Power Supply Type | Dual, Single | |
| Output Type | Open Collector | |
| Number of Channels per Chip | 4 | |
| Typical Response Time | 1.3µs | |
| Pin Count | 14 | |
| Typical Single Supply Voltage | 5 → 28 V | |
| Dimensions | 19.56 x 6.6 x 3.68mm | |
| Length | 19.56mm | |
| Width | 6.6mm | |
| Height | 3.68mm | |
| Maximum Operating Temperature | +70 °C | |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±3 V, ±5 V, ±9 V | |
| Typical Voltage Gain | 106.02 dB | |
| Minimum Operating Temperature | 0 °C | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Comparator Type General Purpose | ||
Mounting Type Through Hole | ||
Package Type PDIP | ||
Power Supply Type Dual, Single | ||
Output Type Open Collector | ||
Number of Channels per Chip 4 | ||
Typical Response Time 1.3µs | ||
Pin Count 14 | ||
Typical Single Supply Voltage 5 → 28 V | ||
Dimensions 19.56 x 6.6 x 3.68mm | ||
Length 19.56mm | ||
Width 6.6mm | ||
Height 3.68mm | ||
Maximum Operating Temperature +70 °C | ||
Typical Dual Supply Voltage ±12 V, ±15 V, ±3 V, ±5 V, ±9 V | ||
Typical Voltage Gain 106.02 dB | ||
Minimum Operating Temperature 0 °C | ||
