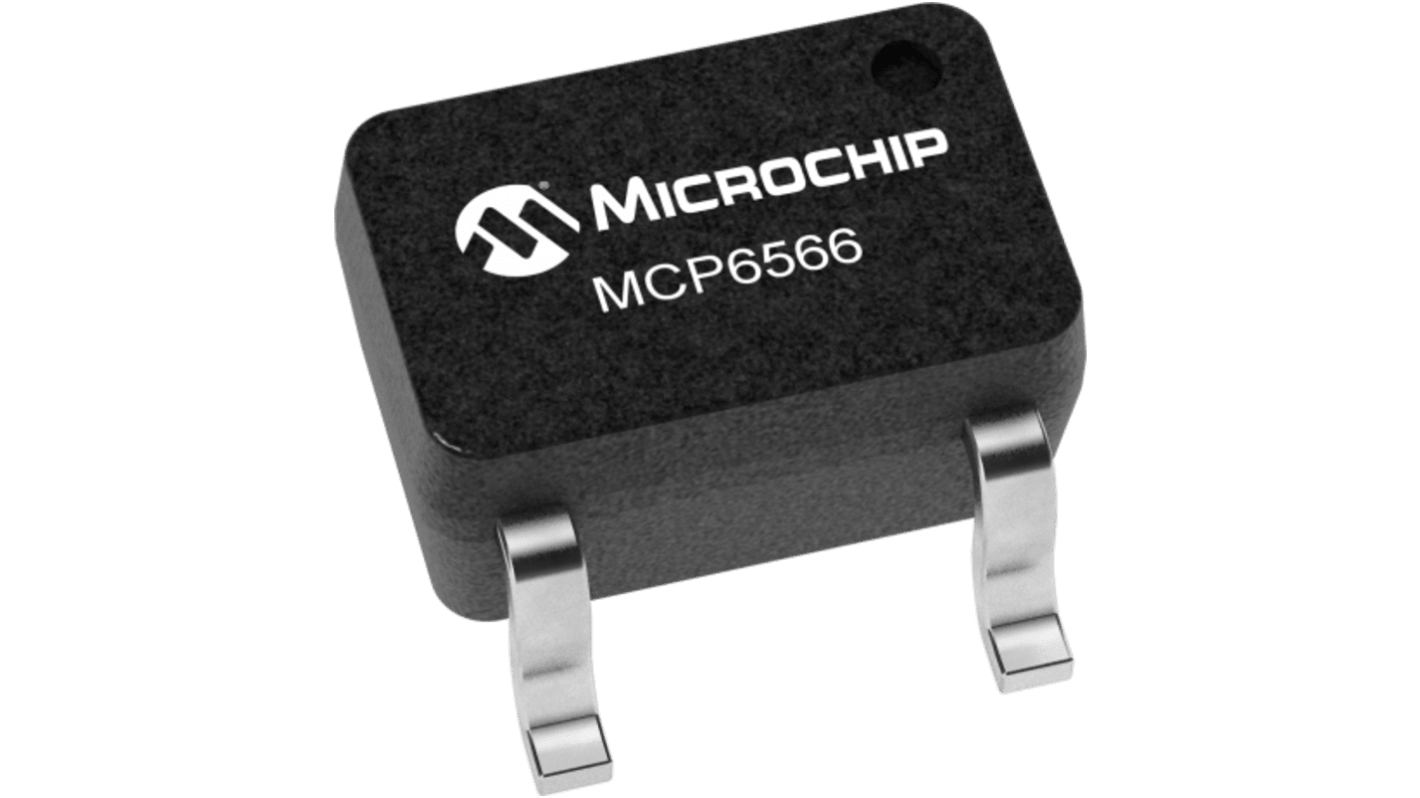

MCP6566T-E/LT Microchip Analogue Comparator Push Pull O/P, 47 ns 5.5 V 1.8 V 5-Pin SC-70

View all Comparators
Bulk discount available

Subtotal (1 tape of 10 units)*

£4.46

(exc. VAT)

£5.35

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
10 - 90£0.446£4.46
100 - 490£0.432£4.32
500 - 990£0.419£4.19
1000 +£0.362£3.62

*price indicative

Packaging Options:
RS Stock No.:
644-253
Mfr. Part No.:
MCP6566T-E/LT
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Analogue Comparator

Comparator Type

Push-Pull Output

Mount Type

Surface

Package Type

SC-70

Output Type

Push Pull

Typical Response Time

47ns

Pin Count

5

Maximum Supply Voltage

5.5V

Minimum Supply Voltage

1.8V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Series

MCP6566/6R/6U/7/9

Length

2mm

Width

2.1 mm

Standards/Approvals

RoHS

Height

1.1mm

Supply Current

100μA

Automotive Standard

No

COO (Country of Origin):
TH
The Microchip 1.8V low-power open-drain output comparator is available in single configurations, optimized for low-power single-supply applications with input operation exceeding rail-to-rail levels, and features internal input hysteresis that minimizes output switching caused by internal input noise voltage, thereby reducing current consumption.

Low quiescent current of 100 μA typical

Input offset voltage of ±3 mV typical

Rail-to-rail input from VSS – 0.3V to VDD + 0.3V

Open-drain output
