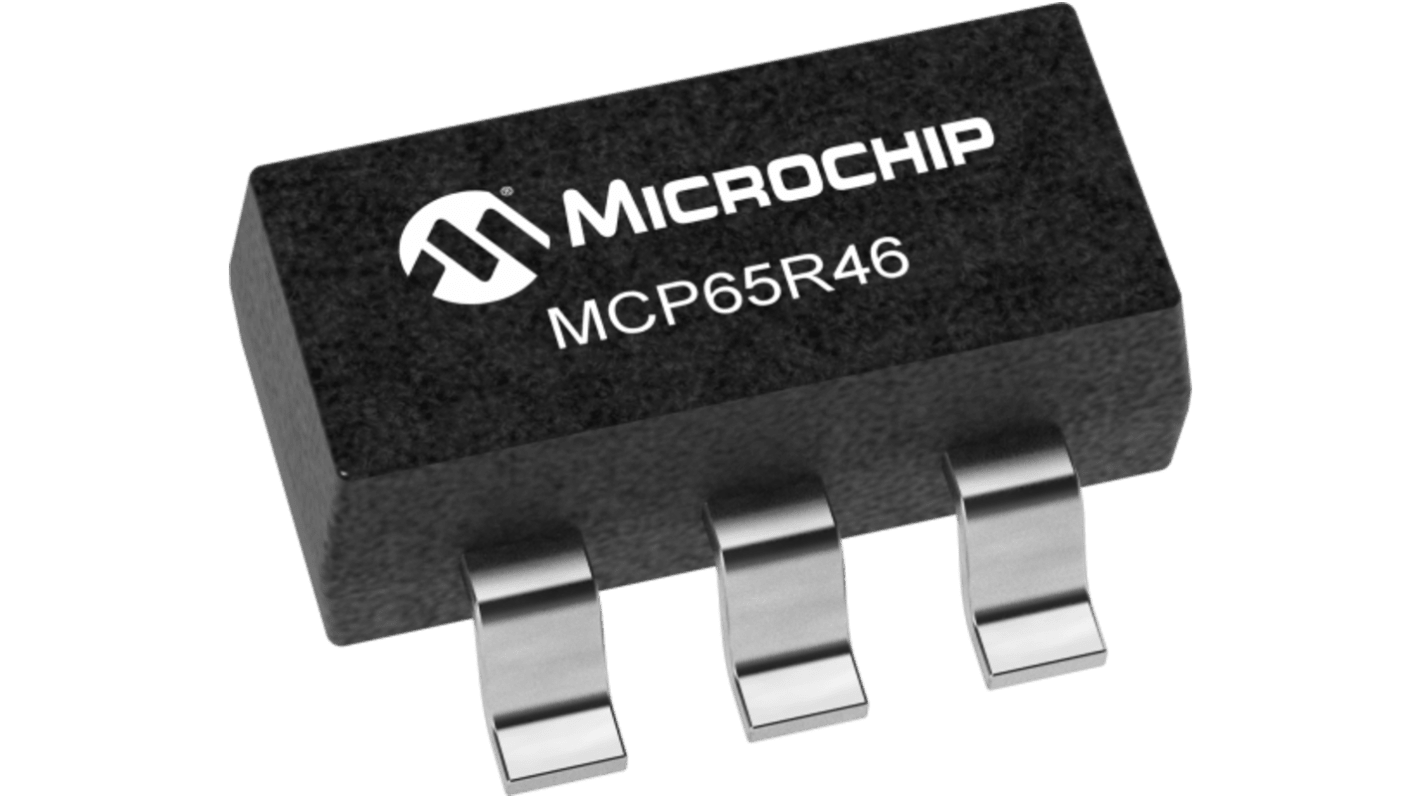

MCP65R46T-2402E/CHY Microchip 2-Channel Analogue Comparator Push Pull O/P, 5.5 V 1.8 V 6-Pin SOT-23
- RS Stock No.:
- 598-586
- Mfr. Part No.:
- MCP65R46T-2402E/CHY
- Brand:
- Microchip
Subtotal (1 reel of 3000 units)*
£1,041.00
(exc. VAT)
£1,248.00
(inc. VAT)
Add 3000 units to get free delivery
Temporarily out of stock
- Shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.347 | £1,041.00 |
*price indicative
- RS Stock No.:
- 598-586
- Mfr. Part No.:
- MCP65R46T-2402E/CHY
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Comparator Type | Push-Pull Output | |
| Product Type | Analogue Comparator | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Output Type | Push Pull | |
| Number of Channels | 2 | |
| Pin Count | 6 | |
| Minimum Supply Voltage | 1.8V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.45mm | |
| Standards/Approvals | RoHS | |
| Series | MCP65R46 | |
| Length | 2.9mm | |
| Width | 2.8 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Comparator Type Push-Pull Output | ||
Product Type Analogue Comparator | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Output Type Push Pull | ||
Number of Channels 2 | ||
Pin Count 6 | ||
Minimum Supply Voltage 1.8V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 1.45mm | ||
Standards/Approvals RoHS | ||
Series MCP65R46 | ||
Length 2.9mm | ||
Width 2.8 mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
The Microchip Comparator is a single, open drain output comparator is optimized for low-power, single-supply applications with greater than rail to rail input operation. The output limits supply current surges and dynamic power consumption while switching. The internal input hysteresis eliminates output switching due to internal noise voltage, reducing current draw. An internal voltage reference is also provided, at 1.21V or 2.4V. AEC-Q100 Grade 1 qualification is available for this device
4us Propagation Delay
Small 6 pin SOT 23 Package
AEC-Q100 Grade 1
