The Silicon Technologies ISOLinear Reference Design Board provides an environment for the evaluation of analogue signal isolation using the Si86xx Digital Isolator. The incoming analogue signal is modulated and transmitted through the Si86xx digital isolator, filtered and reconstructed on the output side. The ISOlinear Reference Design offers the user an alternative to expensive analogue isolation amplifiers, with competitive performance benefits and greater user-flexibility. The Si86xxIsoLin-UG Reference Design contains three different cost/performance-optimized analogue isolation circuit configurations. Typical applications include isolation amplifiers for sensors, ground loop eliminators, level shifting and motor control.

3 x Si8630 150Mbps digital isolators in a widebody SOIC16 package

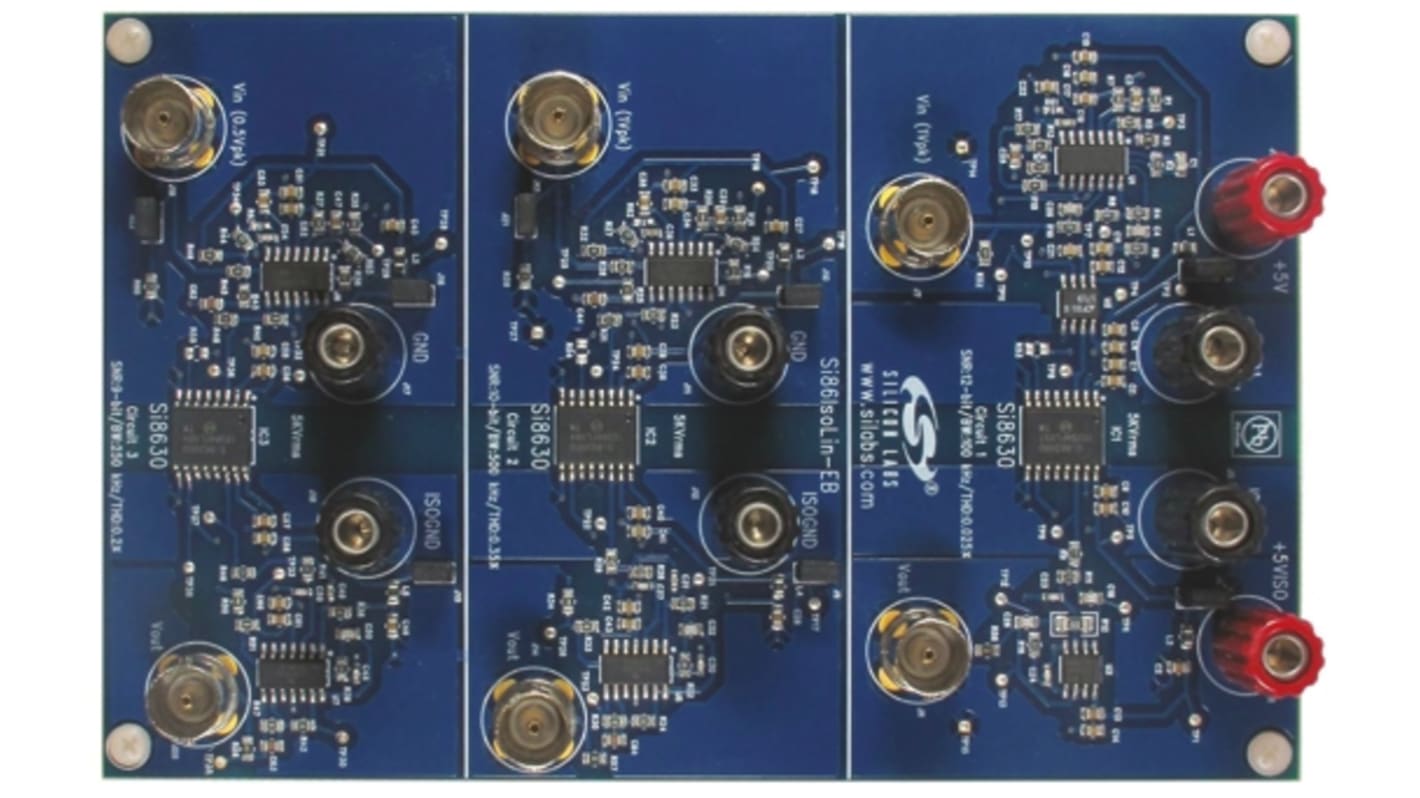

Si86xxIsoLin evaluation board (Si86xxIsoLin-EB) featuring multiple Si8630 150 Mbps digital isolators in a wide-body SOIC-16 package.
