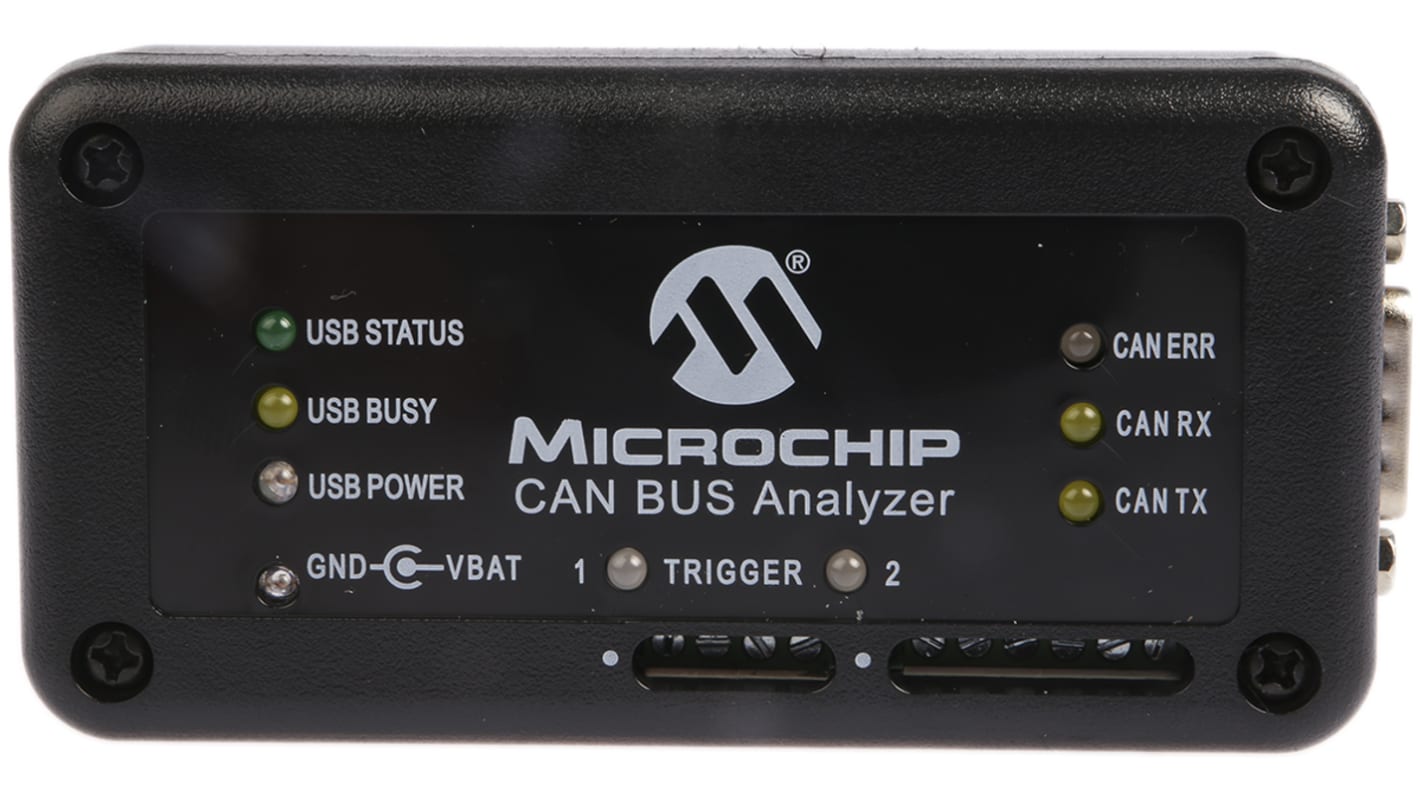

Microchip Analyzer Development Kit APGDT002
- RS Stock No.:
- 715-4255
- Mfr. Part No.:
- APGDT002
- Brand:
- Microchip
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£41.18
(exc. VAT)
£49.42
(inc. VAT)
- RS Stock No.:
- 715-4255
- Mfr. Part No.:
- APGDT002
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Kit Classification | Development Kit | |
| Kit Name | Analyzer | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Kit Classification Development Kit | ||
Kit Name Analyzer | ||
CAN BUS Analyzer Tool
The Microchip APGDT002 CAN Bus Analyzer Tool is a development tool which is a CAN bus monitor that is used to develop and debug high-speed CAN networks.
What’s included?
1 x CAN BUS Analyzer Tool
1 x USB mini cable (for connecting to a PC)
Software is available as a download from the Microchip website
What is CAN?
CAN bus, short for Controller Area Network, a message-based protocol, used primarily for communication between microcontrollers within cars and other vehicles.
How does it connect?
The CAN Bus Analyzer connects to a PC via the USB cable provided. You will require a PC with a Microsoft Windows operating system and a USB port. There is also a DB9 connector for the CAN bus.
What are the status LEDs for?
There are several LEDs on top of the device which are there to indicate USB status and power. There is also CAN related LEDs for RX and TX traffic, and for CAN BUS errors.
What’s included?
1 x CAN BUS Analyzer Tool
1 x USB mini cable (for connecting to a PC)
Software is available as a download from the Microchip website
What is CAN?
CAN bus, short for Controller Area Network, a message-based protocol, used primarily for communication between microcontrollers within cars and other vehicles.
How does it connect?
The CAN Bus Analyzer connects to a PC via the USB cable provided. You will require a PC with a Microsoft Windows operating system and a USB port. There is also a DB9 connector for the CAN bus.
What are the status LEDs for?
There are several LEDs on top of the device which are there to indicate USB status and power. There is also CAN related LEDs for RX and TX traffic, and for CAN BUS errors.
