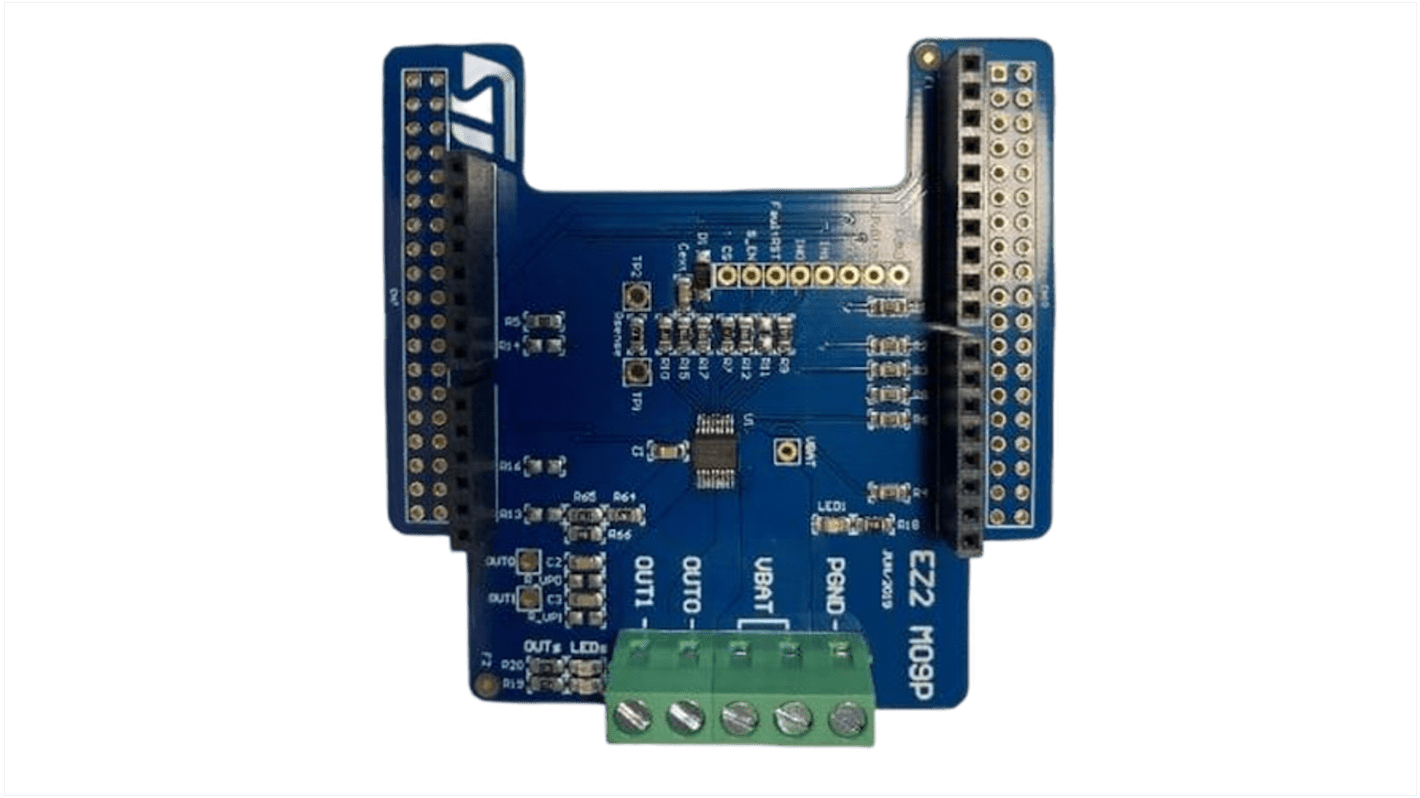

STMicroelectronics EV-VND9012AJ VND9012AJ Evaluation Kit for CMOS EV-VND9012AJ
- RS Stock No.:
- 265-7038
- Mfr. Part No.:
- EV-VND9012AJ
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 unit)*
£24.18
(exc. VAT)
£29.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £24.18 |
5 - 9 | £23.58 |
10 + | £22.97 |
*price indicative
- RS Stock No.:
- 265-7038
- Mfr. Part No.:
- EV-VND9012AJ
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Classification | Evaluation Board | |
Kit Classification | Evaluation Kit | |
For Use With | CMOS | |
Featured Device | VND9012AJ | |
Kit Name | EV-VND9012AJ | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Classification Evaluation Board | ||
Kit Classification Evaluation Kit | ||
For Use With CMOS | ||
Featured Device VND9012AJ | ||
Kit Name EV-VND9012AJ | ||
- COO (Country of Origin):
- IT
The STMicroelectronics evaluation board has extreme low voltage operation for deep cold cranking applications. Double channel smart high-side driver with current sense analogue feedback with multiplexed analogue feedback of load current with high precision proportional current mirror. It also has overload and short to ground indication and OFF-state open-load detection.
Current sense diagnostic functions
Thermal shutdown indication
Output short to VCC detection
Sense enable/disable
Very low standby current
Typical on-state resistance (per channel) is equal to 12 mΩ
Thermal shutdown indication
Output short to VCC detection
Sense enable/disable
Very low standby current
Typical on-state resistance (per channel) is equal to 12 mΩ
