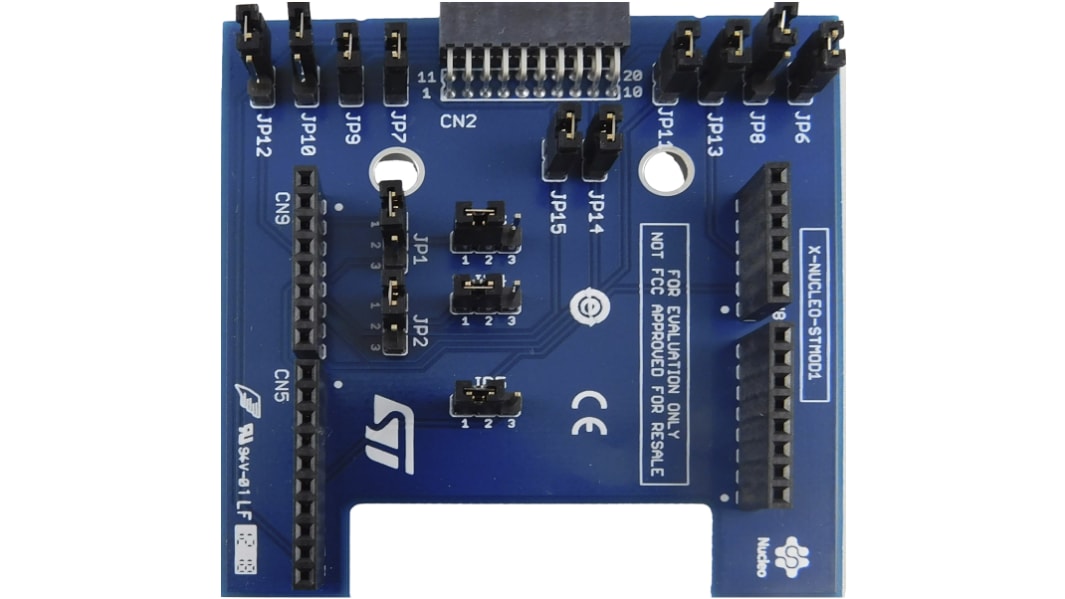

STMicroelectronics STMod+ Connector Expansion Board Expansion Board for STM32 Nucleo X-NUCLEO-STMODA1

View this category
Unavailable
RS will no longer stock this product.
RS Stock No.:
182-7800
Mfr. Part No.:
X-NUCLEO-STMODA1
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Kit Classification

Expansion Board

For Use With

STM32 Nucleo

Kit Name

STMod+ Connector Expansion Board

COO (Country of Origin):
IT
The X-NUCLEO-STMODA1 provides an easy way to expand your STM32 Nucleo board with the STMod+ connector, which allows interaction with the new set of STM32 Nucleo development boards using this connector. It provides an easy way to evaluate the STMod+ board solution together with other STM32 Nucleo boards. The STMod+ is a 2x10-pin connector providing a set of interfaces such as SPI, UART, I²C and other functions such as RESET, INTERRUPT, ADC, PWM and general purpose I/Os. The X-NUCLEO-STMODA1 has a female STMod+ connector with 2 mm pitch. The X-NUCLEO-STMODA1 expansion board is equipped with a set of jumpers for the added flexibility of allowing you to also use the board with the STM32 B-L475E-IOT01A discovery kit node board.

STMod+ connector compatible with STM32 Nucleo boards
Full STMod+ support for a range of interfaces: SPI, UART, I²C, RESET, INTERRUPT, ADC, PWM and general purpose I/Os
STM32 Nucleo support through Arduino UNO V3 connector
Set of 15 Jumpers to allow multiple configurations and expand the range of possible use cases
