STMicroelectronics NUCLEO ISO8200BQ, SMC30J30CA, STPS1H100A Evaluation Kit for STM32 Nucleo X-NUCLEO-OUT01A1

View this category
Unavailable
RS will no longer stock this product.
RS Stock No.:
146-3864
Mfr. Part No.:
X-NUCLEO-OUT01A1
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Kit Classification

Evaluation Kit

For Use With

STM32 Nucleo

Featured Device

ISO8200BQ, SMC30J30CA, STPS1H100A

Kit Name

NUCLEO

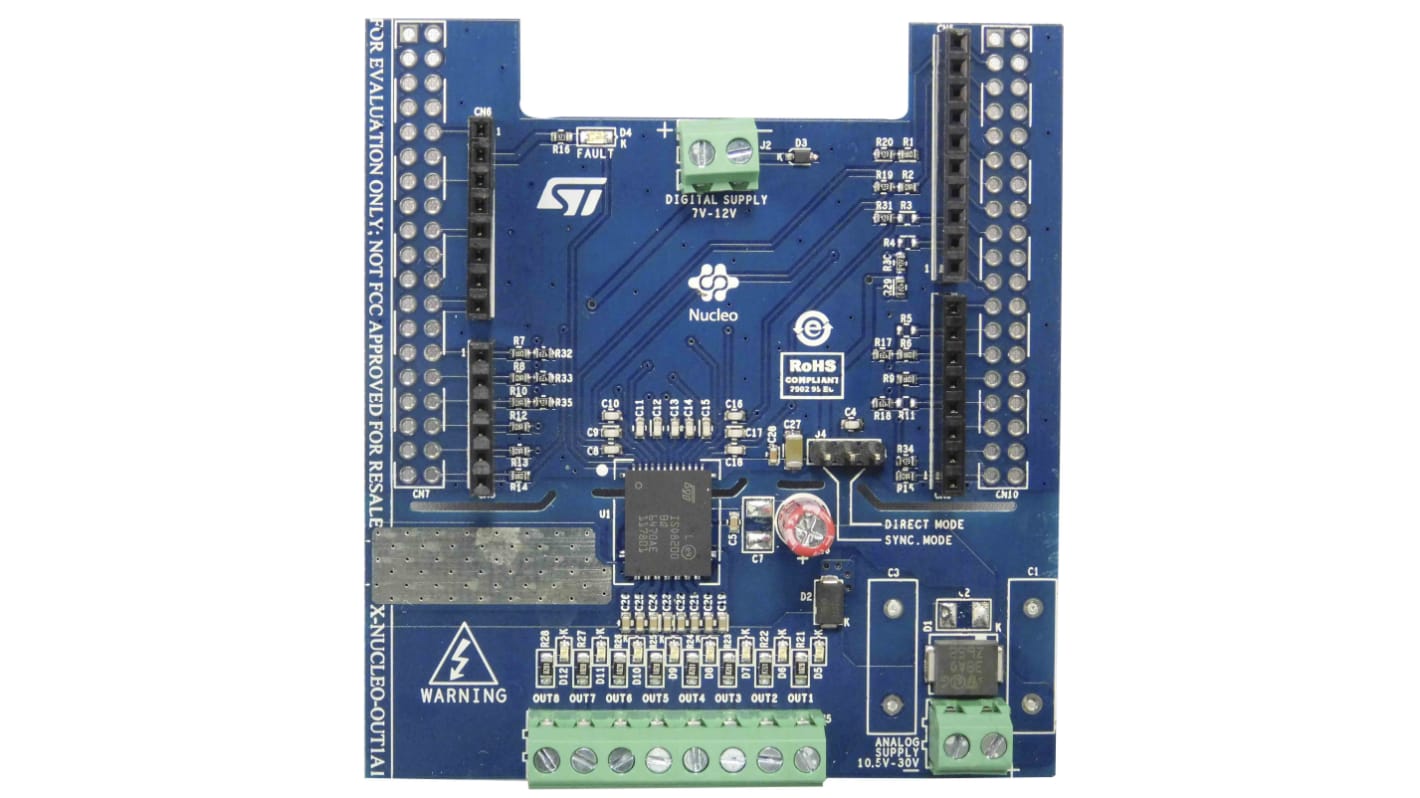

The X-NUCLEO-OUT01A1 is an Industrial Digital output expansion board based on ISO8200BQ for STM32 Nucleo boards.It provides an affordable and easy-to-use solution involving galvanic insulation embedded in industrial power switch driver applications. The Arduino™ UNO R3 connector compatibility allows to connect the following STM32 Nucleo development boards: NUCLEO-F103RB, NUCLEO-F302R8 and NUCLEO-F401RE.

Enables industrial programmable logic controller (PLC) capabilities on STM32 Nucleo
ISO8200BQ galvanic isolated octal high-side smart power solid state-relay
Operating voltage from 10.5 V to 33 V
Maximum operating output current per channel IOUT = 700 mA
Status LEDs: Fault, Thermal protection
Compatible with Arduino® UNO R3 connector
Compliance with EMC standards:
IEC61000-4-2: 8kV Contact Discharge and 15kV Air discharge
IEC61000-4-3: 4kV Discharge on output and supply line
IEC61000-4-5: 2kV Discharge on output and supply line
Compatible with STM32 Nucleo boards
RoHS compliant
