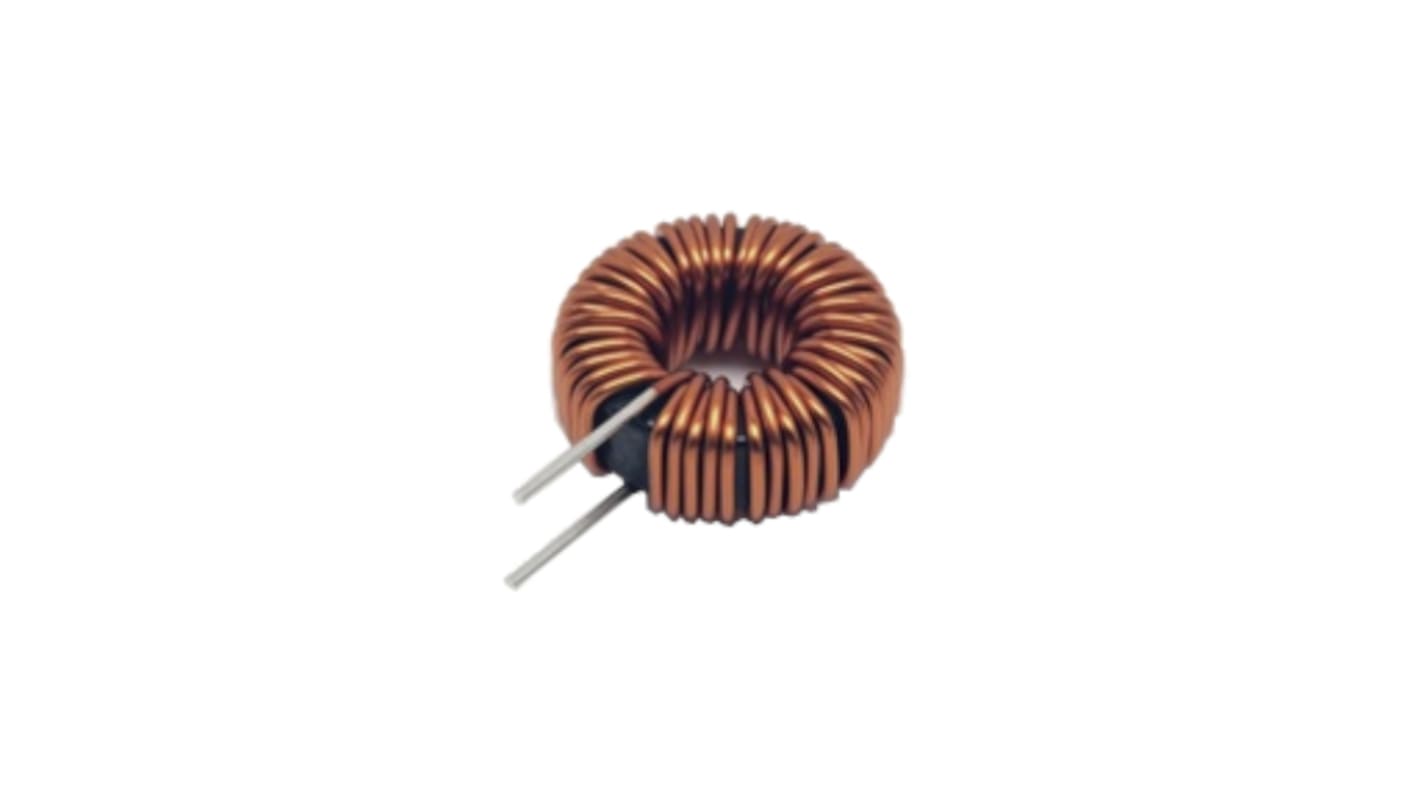

KEMET 67 μH 2 A Common Mode Choke 67.8mΩ

View all Common Mode Chokes
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
183-6937
Mfr. Part No.:
SHBC8S-0R6A0067V
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Inductance

67 μH

Series

SHBC

Test Frequency

100 kHz

DC Resistance

67.8mΩ

Maximum Current

2 A

Dimensions

17 (Dia.) x 9.6mm

Operating Temperature Range

-40°C → +125°C

Number of Lines

2

Mounting Type

Through Hole

Termination Style

Solder Pad

Maximum Operating Temperature

+125°C

Height

17mm

Depth

9.6mm

Minimum Operating Temperature

-40°C

COO (Country of Origin):
VN
The KEMET SHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Si-Al dust cores and are useful in various fields such as DC/DC converters as well as normal noise countermeasures.

Fe-Si-Al dust core material
Available for smoothing and converting
Low core loss
High frequency drive
Wide variety of sizes and specifications
Operating temperature range from−40°C to +125°C
Applications
Switching power supply outlet
DC-DC converter
Phase compensation
Boost converter
