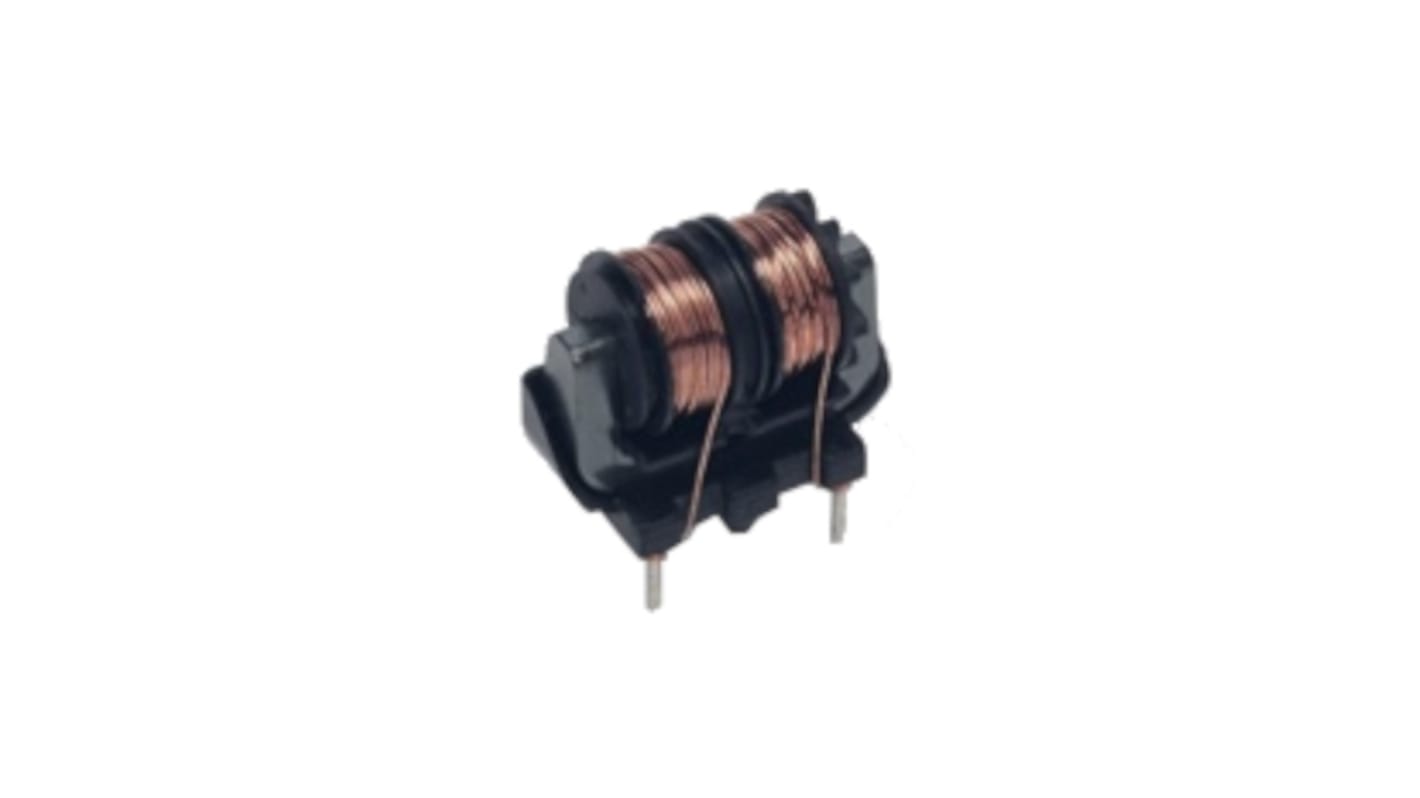

KEMET 9.7 mH 1.3 A Common Mode Choke 0.27Ω

View all Common Mode Chokes
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
183-6915
Mfr. Part No.:
SSR10V-13097
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Inductance

9.7 mH

Series

SSR10V

Test Frequency

10 kHz

DC Resistance

0.27Ω

Maximum Current

1.3 A

Dimensions

23.5 x 13 x 21mm

Operating Temperature Range

-25°C → +120°C

Number of Lines

2

Mounting Type

Through Hole

Termination Style

Solder Pad

Height

21mm

Minimum Operating Temperature

-25°C

Depth

13mm

Length

23.5mm

Maximum Operating Temperature

+120°C

COO (Country of Origin):
VN
The KEMET SSR coils are common mode chokes with a wide variety of characteristics. These gear type coils are designed with our proprietary high permeability ferrite S15H cores and are useful in various noise counter measure fields.

Proprietary S15H ferrite material
High permeability
Large inductance due to non-divided bobbin
Compact size,low profile and light weight
Operating temperature range from −25°C to +120°C

Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Power supplies
