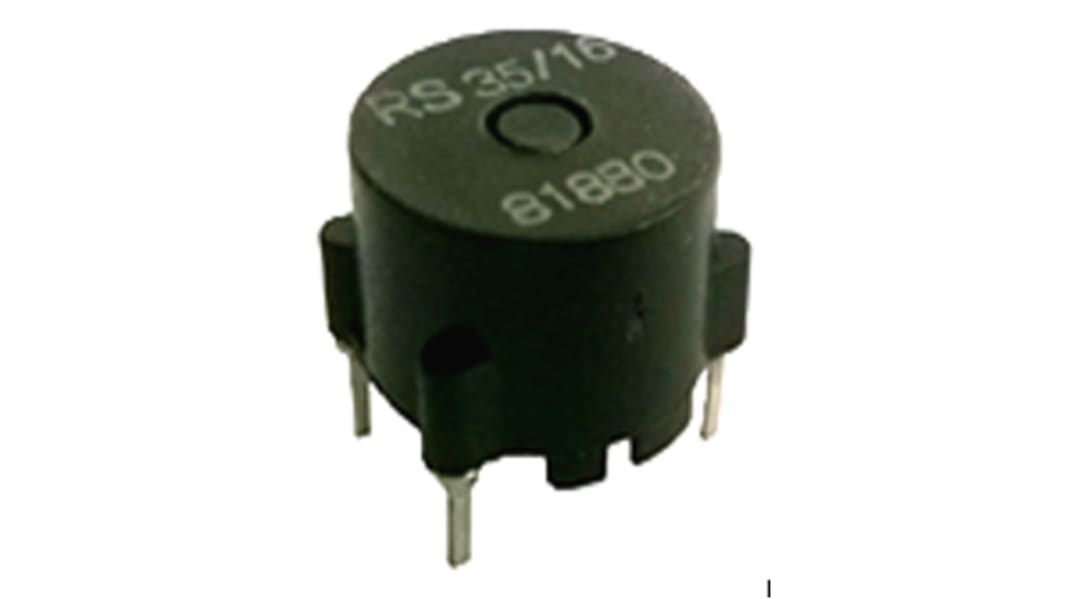

RS PRO 2 x 700 μH 4 A Common Mode Choke 27mΩ

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

RS Pro Common Mode Chokes 2 x 0.7mH - 2 X 3.3mH

RS Pro Toroidal chokes are high quality and are an efficient means of filtering supply lines. The common mode chokes have in- phase signals of equal amplitude allowing equipment to meet stringent electrical radiation specifications. Wide frequency ranges can be filtered by using a high and low inductance Toroidal chokes in a series. Different mode signals can be attuned substantially when used together with input and output capacitors.

Applications

Data storage systems
Digital video camera
Industrial systems
Professional audio

Specifications
Attribute Value
Inductance 2 x 700 μH
DC Resistance 27mΩ
Maximum Current 4 A
Dimensions 17.5 x 17 x 12.5mm
Depth 17mm
Length 17.5mm
Height 12.5mm
304 In stock for FREE next working day delivery
Price Each (In a Box of 304)
£ 1.327
(exc. VAT)
£ 1.592
(inc. VAT)
Units
Per unit
Per Box*
304 - 608
£1.327
£403.408
912 +
£1.221
£371.184
*price indicative
