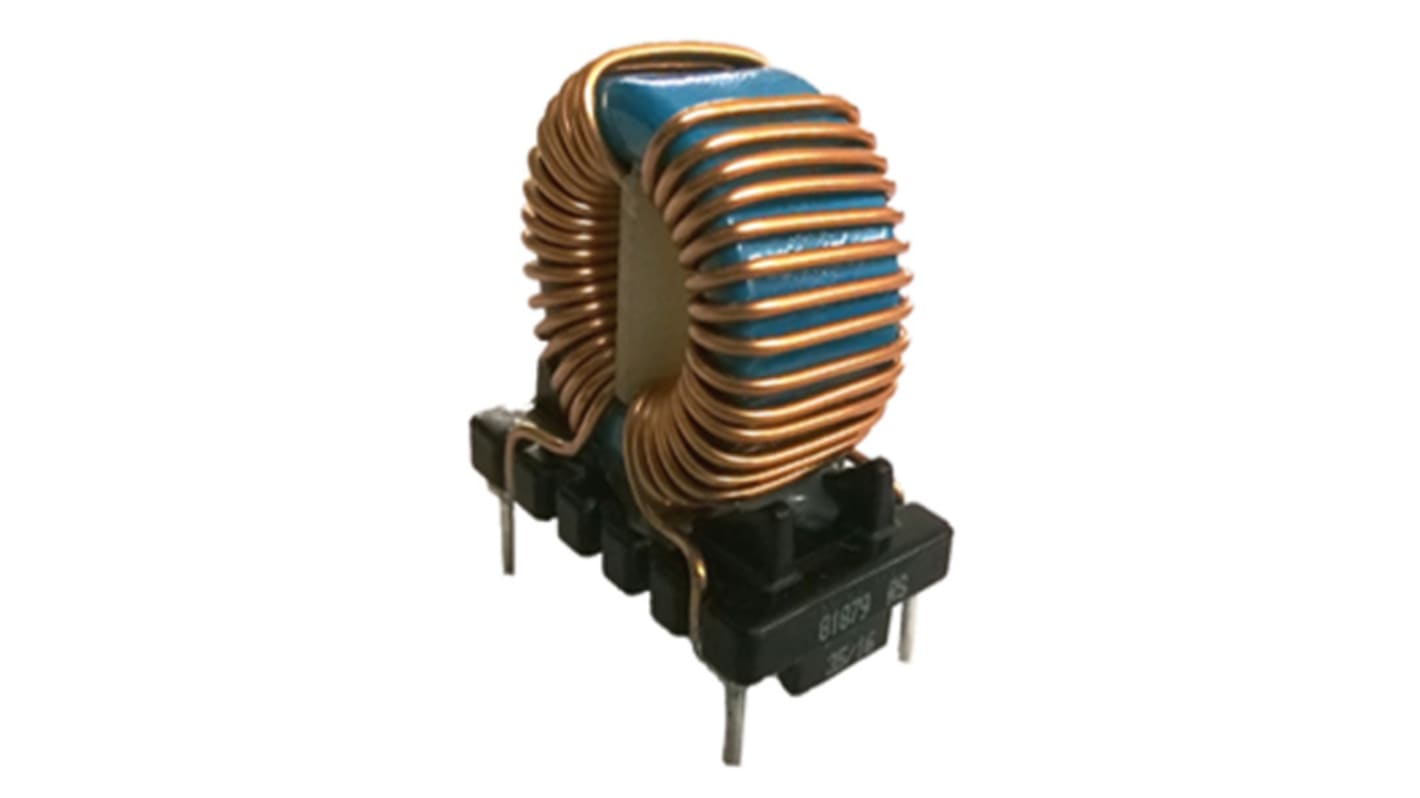

RS PRO 2 x 3.3 mH 6 A Common Mode Choke 25mΩ

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

RS Pro Common Mode Chokes 2 x 0.7mH - 2 X 3.3mH

RS Pro Toroidal chokes are high quality and are an efficient means of filtering supply lines. The common mode chokes have in- phase signals of equal amplitude allowing equipment to meet stringent electrical radiation specifications. Wide frequency ranges can be filtered by using a high and low inductance Toroidal chokes in a series. Different mode signals can be attuned substantially when used together with input and output capacitors.

Applications

Data storage systems
Digital video camera
Industrial systems
Professional audio

Specifications
Attribute Value
Inductance 2 x 3.3 mH
DC Resistance 25mΩ
Maximum Current 6 A
Dimensions 30 x 21 x 35mm
Length 30mm
Height 35mm
Depth 21mm
Available to back order for despatch 05/06/2020
Price Each (In a Box of 143)
£ 6.594
(exc. VAT)
£ 7.913
(inc. VAT)
Units
Per unit
Per Box*
143 +
£6.594
£942.942
*price indicative
