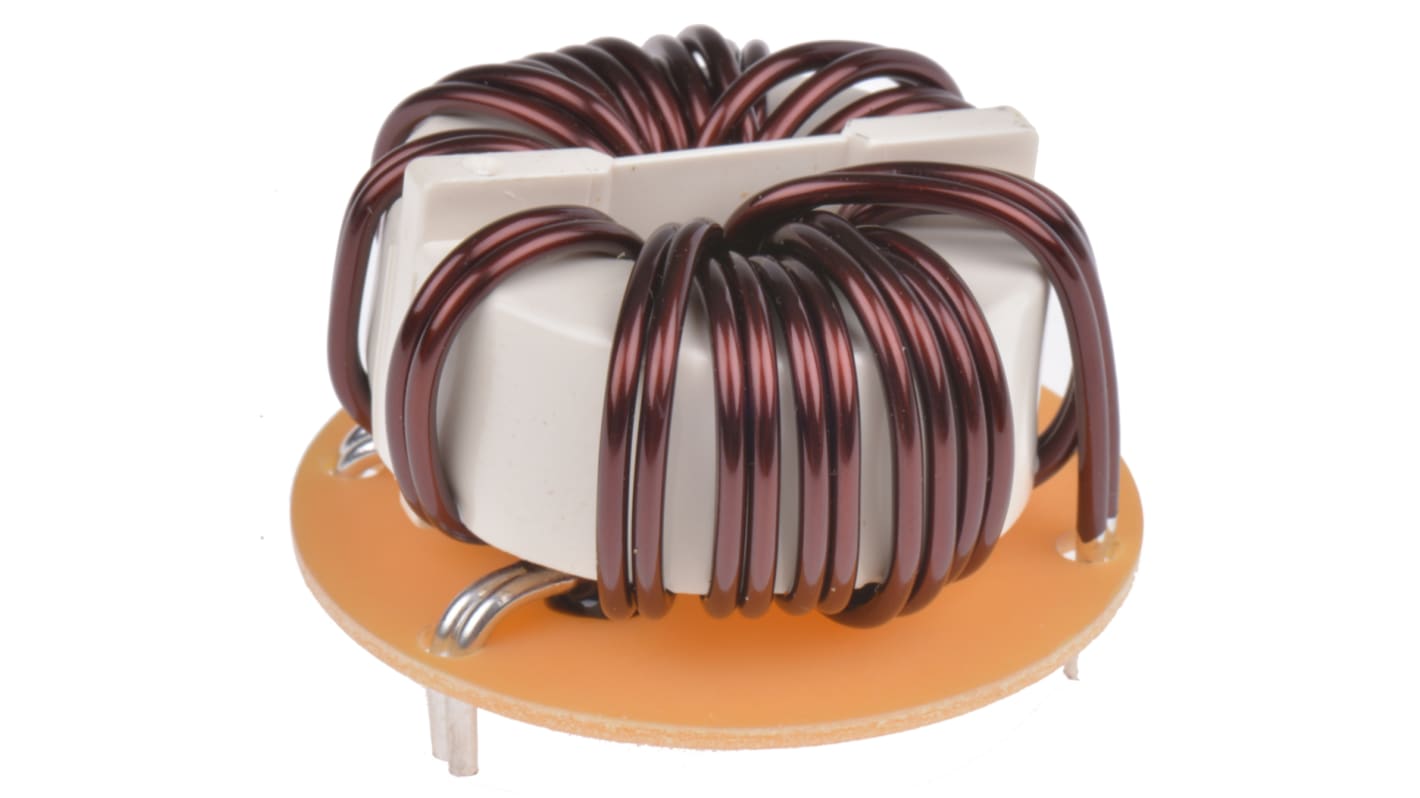

KEMET 850 μH 35 A Common Mode Choke 2.5mΩ
- RS Stock No.:
- 169-6892
- Mfr. Part No.:
- SCR38-350-1R8B008JH
- Brand:
- KEMET
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 169-6892
- Mfr. Part No.:
- SCR38-350-1R8B008JH
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Inductance | 850 μH | |
| Series | SCR | |
| DC Resistance | 2.5mΩ | |
| Maximum Current | 35 A | |
| Dimensions | 53.5 x 31.5 x 53.5mm | |
| Operating Temperature Range | -25 → +55 °C | |
| Mounting Type | Through Hole | |
| Minimum Operating Temperature | -25°C | |
| Length | 53.5mm | |
| Maximum Operating Temperature | +55°C | |
| Depth | 31.5mm | |
| Height | 53.5mm | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Inductance 850 μH | ||
Series SCR | ||
DC Resistance 2.5mΩ | ||
Maximum Current 35 A | ||
Dimensions 53.5 x 31.5 x 53.5mm | ||
Operating Temperature Range -25 → +55 °C | ||
Mounting Type Through Hole | ||
Minimum Operating Temperature -25°C | ||
Length 53.5mm | ||
Maximum Operating Temperature +55°C | ||
Depth 31.5mm | ||
Height 53.5mm | ||
- COO (Country of Origin):
- VN
Kemet SCR38 Series Common Mode Chokes
Kemet SCR38 large AC line filters can be used as common mode chokes and are able to support large electrical currents due to high impedance characteristics and high inductance. Other suitable applications include power conditioners and air conditioners. The Large SCR series provides the industry's highest standard, with a high permeability core.
Rated currents up to 35 A
DC resistances as low as 2.5m Ω
Inductances unp to 1.0 mH
DC resistances as low as 2.5m Ω
Inductances unp to 1.0 mH
