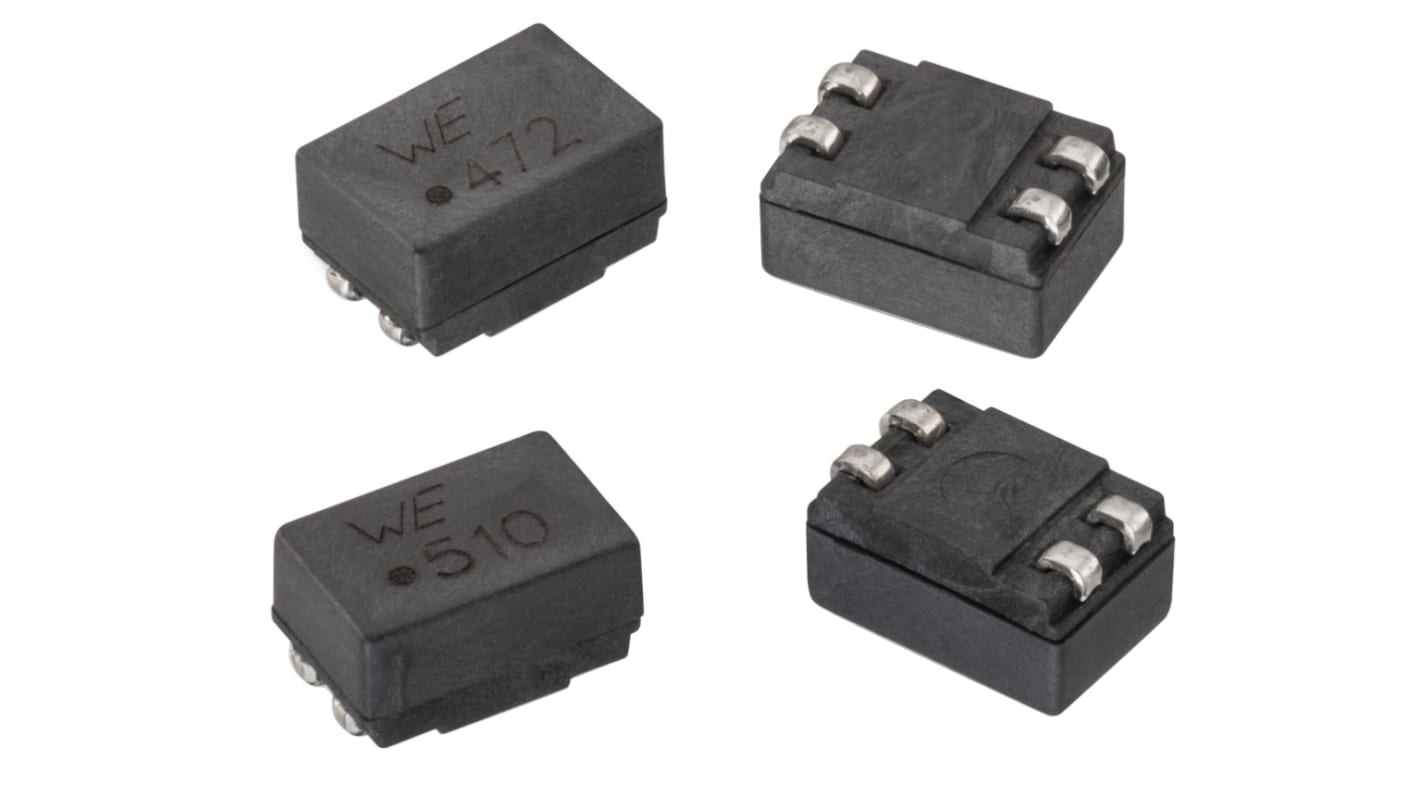

Wurth Elektronik 2 x 51 μH 1 A Common mode filter 2 x 0.16Ω 80V
- RS Stock No.:
- 144-9782
- Mfr. Part No.:
- 744227
- Brand:
- Wurth Elektronik
2000 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 1000)
£0.949
(exc. VAT)
£1.139
(inc. VAT)
| Units | Per unit | Per Reel* |
| 1000 + | £0.949 | £949.00 |
| *price indicative | ||
- RS Stock No.:
- 144-9782
- Mfr. Part No.:
- 744227
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Wurth WE-SL2 Series SMD Common Mode Chokes
Double current-compensated ring core choke
4-way SMD housing
Current rating up to 1.6A
Impedances up to 9kΩ
4-way SMD housing
Current rating up to 1.6A
Impedances up to 9kΩ
Applications
Chokes for bus systems such as CAN, USB, ISDN
Signal and data line filtering
Power supplies
Measuring signal lines
Signal and data line filtering
Power supplies
Measuring signal lines
Common Mode Choke
Ring core with the core materials of NiZn and MnZn
Operating temperature: –40 °C to +125 °C
Operating voltage: 80 VDC (42 VAC)
Recommended solder profile: Reflow
Current compensated choke for data and signal lines
Power supply systems
Signal and sensor lines
CAN
Suppression for common mode noise
Ring core with the core materials of NiZn and MnZn
Operating temperature: –40 °C to +125 °C
Operating voltage: 80 VDC (42 VAC)
Recommended solder profile: Reflow
Current compensated choke for data and signal lines
Power supply systems
Signal and sensor lines
CAN
Suppression for common mode noise
Wurth SMD Common Mode Chokes
Specifications
Attribute | Value |
|---|---|
| Inductance | 2 x 51 μH |
| Series | WE-SL2 |
| Test Frequency | 1 KHz |
| DC Resistance | 2 x 0.16Ω |
| Maximum Current | 1 A |
| Dimensions | 9.2 x 6 x 5mm |
| Operating Temperature Range | -40°C → +125°C |
| Mounting Type | Surface Mount |
| Voltage Rating | 80V |
| Termination Style | Surface Mount |
| Maximum Operating Temperature | +125°C |
| Length | 9.2mm |
| Depth | 6mm |
| Minimum Operating Temperature | -40°C |
| Height | 5mm |
