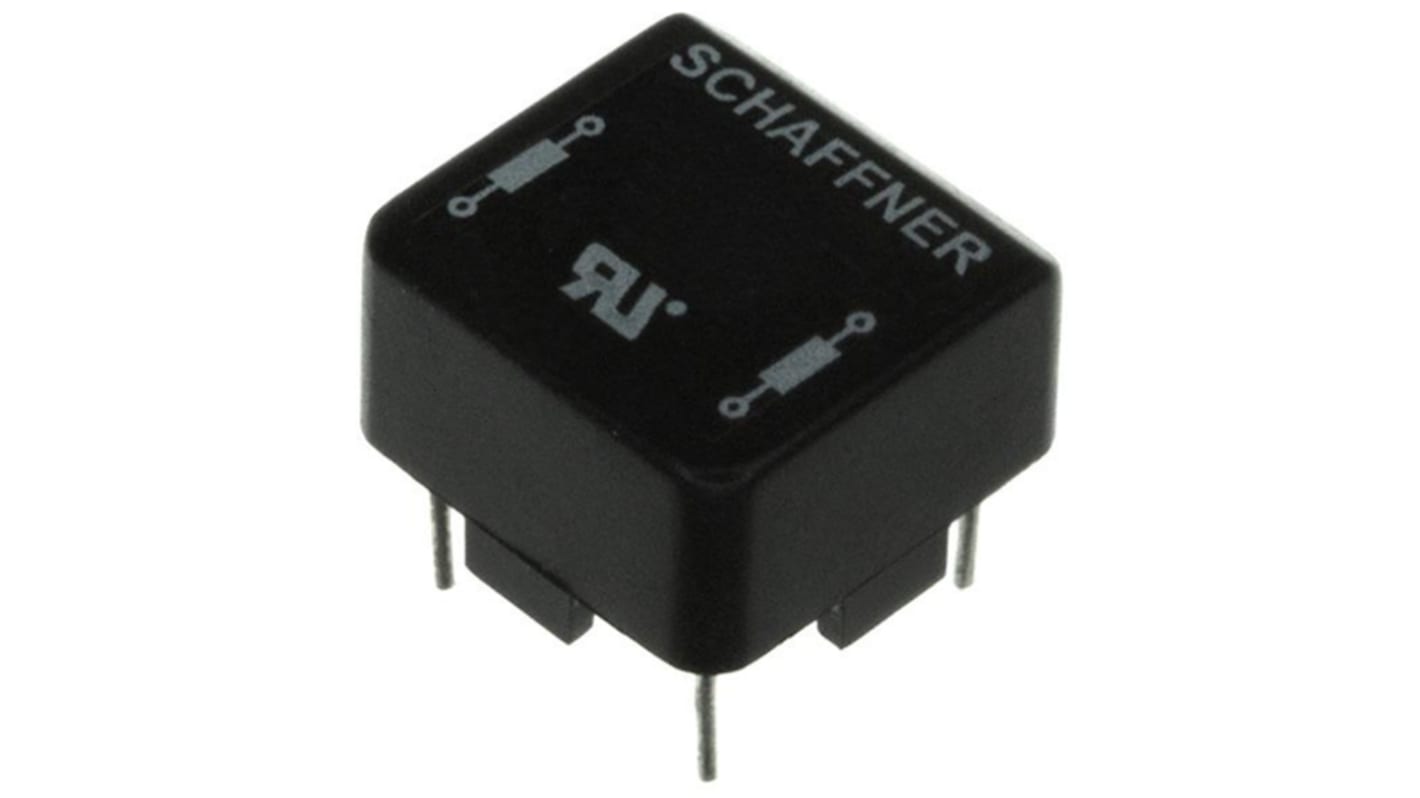

Schaffner 1.6 mH Common Mode Choke
- RS Stock No.:
- 133-6098
- Mfr. Part No.:
- RN204-1.5-02-1M6
- Brand:
- Schaffner
Discontinued
- RS Stock No.:
- 133-6098
- Mfr. Part No.:
- RN204-1.5-02-1M6
- Brand:
- Schaffner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schaffner | |
| Inductance | 1.6 mH | |
| Series | RN | |
| Dimensions | 9 x 14 x 14.3mm | |
| Operating Temperature Range | -40 → +100 °C | |
| Minimum Operating Temperature | -40°C | |
| Depth | 14mm | |
| Maximum Operating Temperature | +100°C | |
| Length | 9mm | |
| Height | 14.3mm | |
| Select all | ||
|---|---|---|
Brand Schaffner | ||
Inductance 1.6 mH | ||
Series RN | ||
Dimensions 9 x 14 x 14.3mm | ||
Operating Temperature Range -40 → +100 °C | ||
Minimum Operating Temperature -40°C | ||
Depth 14mm | ||
Maximum Operating Temperature +100°C | ||
Length 9mm | ||
Height 14.3mm | ||
Schaffner RN Series Common Mode Chokes
Premium range of common mode chokes from Schaffner provide the user with reliable AC power line noise filtration. Can be used in a wide range of applications such as phase-angle control circuits in combination with saturating chokes and EMI input filters.
Rated currents from 0.3 →10 A
DC → 1kHz frequency
100kHz → 3MHz common-mode resonance frequency
Dual-choke configurations
Multiple PCB-mounting options
Small compact design
High saturation resistance and excellent thermal behaviour
DC → 1kHz frequency
100kHz → 3MHz common-mode resonance frequency
Dual-choke configurations
Multiple PCB-mounting options
Small compact design
High saturation resistance and excellent thermal behaviour
Approvals
UL recognised
