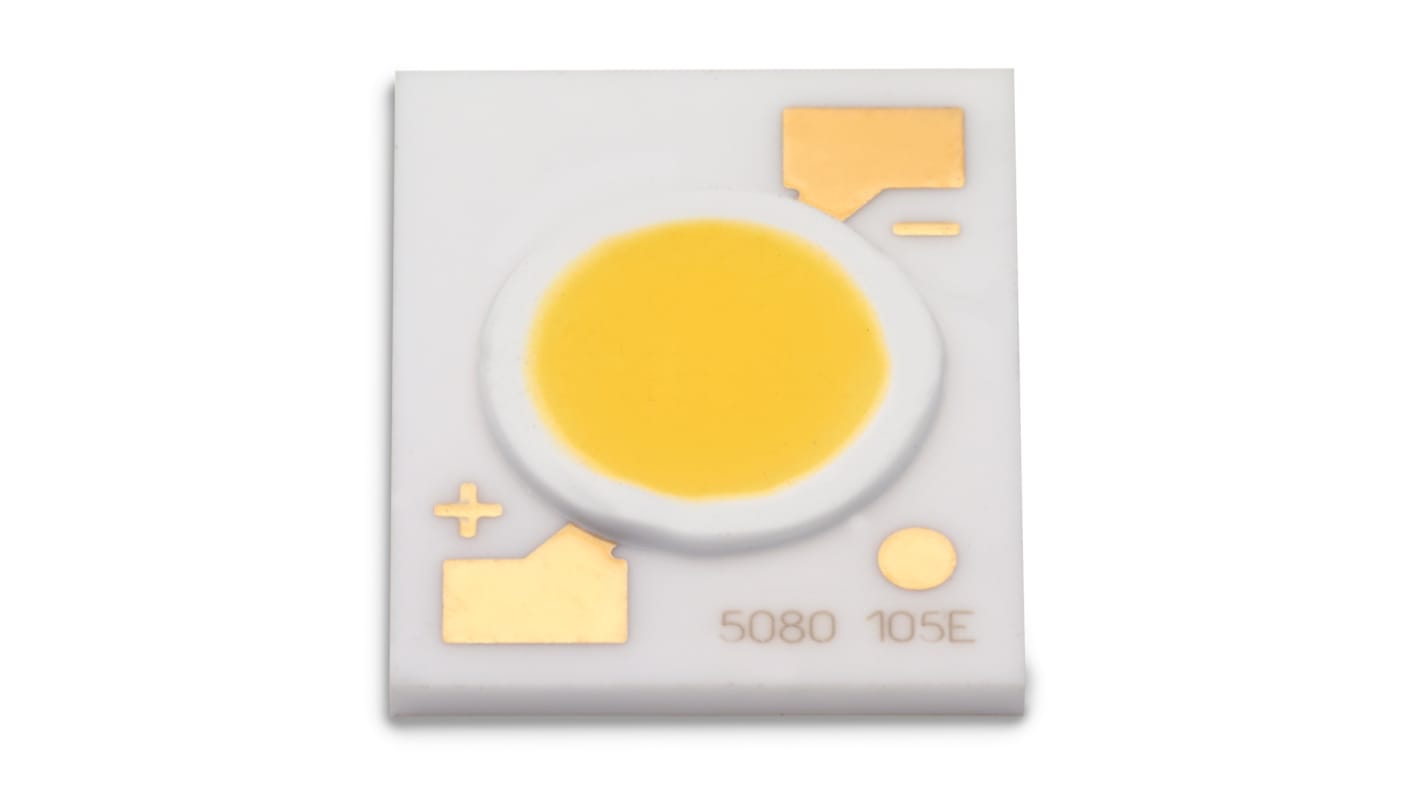

The LUXEON CoB Compact range, from Lumileds, is a family of chip-on-board (CoB) white LEDs designed for directional lamps and spotlights. Available in a range of different colour temperatures, these LEDs are ideal for use in the home, hospitality and retail. The LUXEON CoB Compact LEDs have a very small light emitting surface (LES) of just 6.5mm which offers a uniform light output. They also have a strong Centre Beam Candle Power (CBCP) enabling a crisp beam of light and high intensity light output, making them ideal for spotlight applications. The LUXEON CoB Compact LEDs are available in 3-step (80CRI and 90CRI) MacAdam ellipse. They are also hot-tested in real-world operating conditions which allow the user to simplify luminaire design as less testing is required.
Compact LES: 6.5mm CRI: 80 or 90 Viewing angle: 115° Operating temperature: -40°C to +105°C Dimensions: 12 x 15 x 1.5 mm Designed for retrofit lamps and spotlights Tested at Tj=85°C for accurate colour High flux densities Good thermal resistance allows for smaller heat sinks
Lamp Applications LUXEON CoB 105: PAR16, 35/50W GU10 and 35W MR16 LUXEON CoB 107: 35W GU10, 50W MR16 and low wattage PAR/BR 20/30 LUXEON CoB 109: 50W GU10 and PAR38
