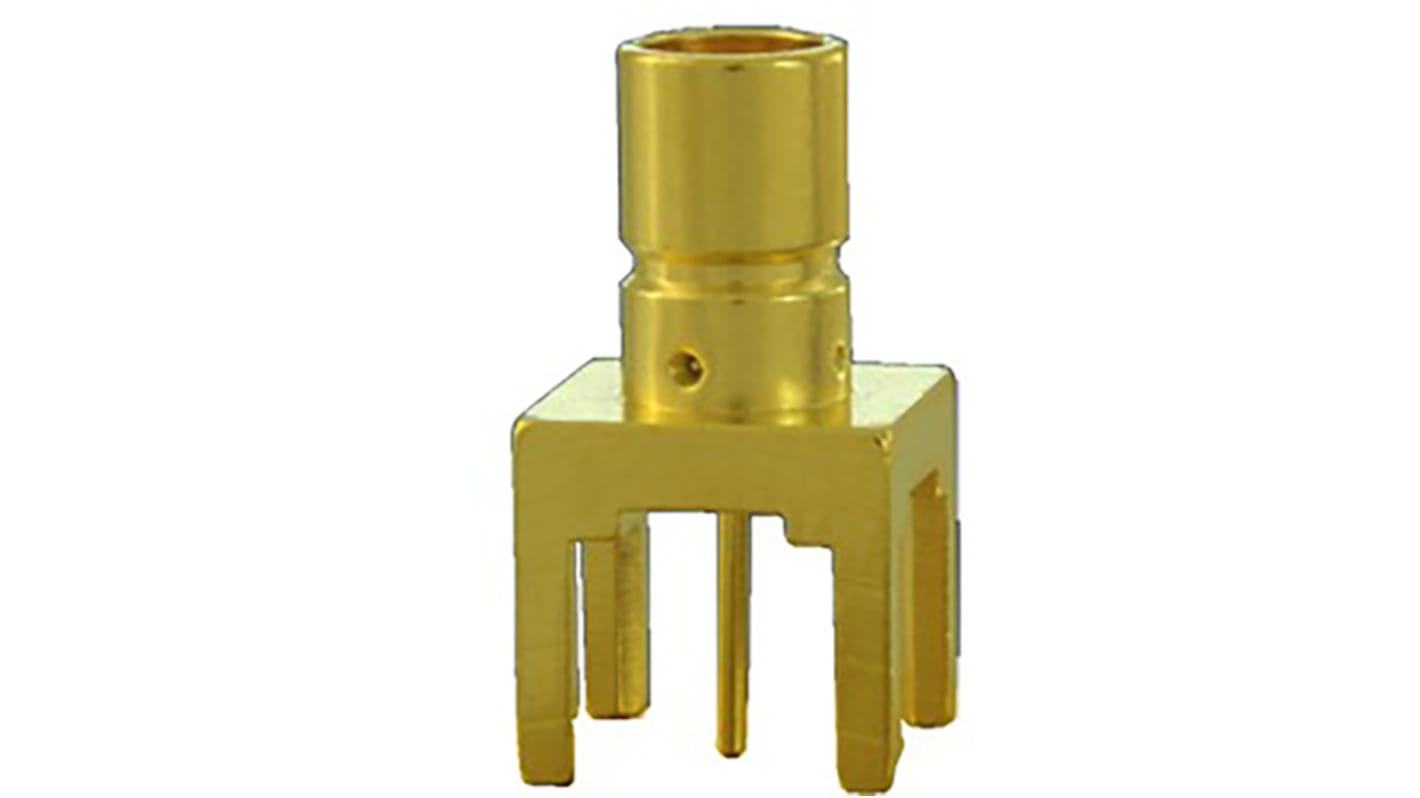

Cinch Connectors Mini-SMB Series, Jack PCB Mount SMB Connector, 75Ω, Solder Termination, Straight Body
- RS Stock No.:
- 885-9986
- Mfr. Part No.:
- 131-8701-251
- Brand:
- Cinch Connectors
- RS Stock No.:
- 885-9986
- Mfr. Part No.:
- 131-8701-251
- Brand:
- Cinch Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cinch Connectors | |
| Coaxial Connector Type | SMB Connector | |
| Gender | Female | |
| Mounting Type | PCB Mount | |
| Impedance | 75Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Size | Miniature | |
| Operating Frequency | 0 to 2GHz | |
| Body Plating | Gold over Nickel over Copper | |
| Series | Mini-SMB | |
| Contact Material | Brass | |
| Contact Plating | Gold over Nickel over Copper | |
| Series Number | 131 | |
| Mating Type | Quick Connect | |
| Select all | ||
|---|---|---|
Brand Cinch Connectors | ||
Coaxial Connector Type SMB Connector | ||
Gender Female | ||
Mounting Type PCB Mount | ||
Impedance 75Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Size Miniature | ||
Operating Frequency 0 to 2GHz | ||
Body Plating Gold over Nickel over Copper | ||
Series Mini-SMB | ||
Contact Material Brass | ||
Contact Plating Gold over Nickel over Copper | ||
Series Number 131 | ||
Mating Type Quick Connect | ||
- COO (Country of Origin):
- US
SMB RF Connectors
The SMB series from Cinch are small in size and easy to mate/unmate making them ideal for applications where packaging density is a consideration.
This series RF connectors feature snap-on coupling to provide quick connect/disconnect. Suitable for test equipment, GPS and telecom applications.
This series RF connectors feature snap-on coupling to provide quick connect/disconnect. Suitable for test equipment, GPS and telecom applications.
Variety of connection types available
Designed for applications up to 4Ghz
50Ohm or 75Ohm versions available
Mini SMB and complete assembly options available
Designed for applications up to 4Ghz
50Ohm or 75Ohm versions available
Mini SMB and complete assembly options available
Cinch SMB Series
