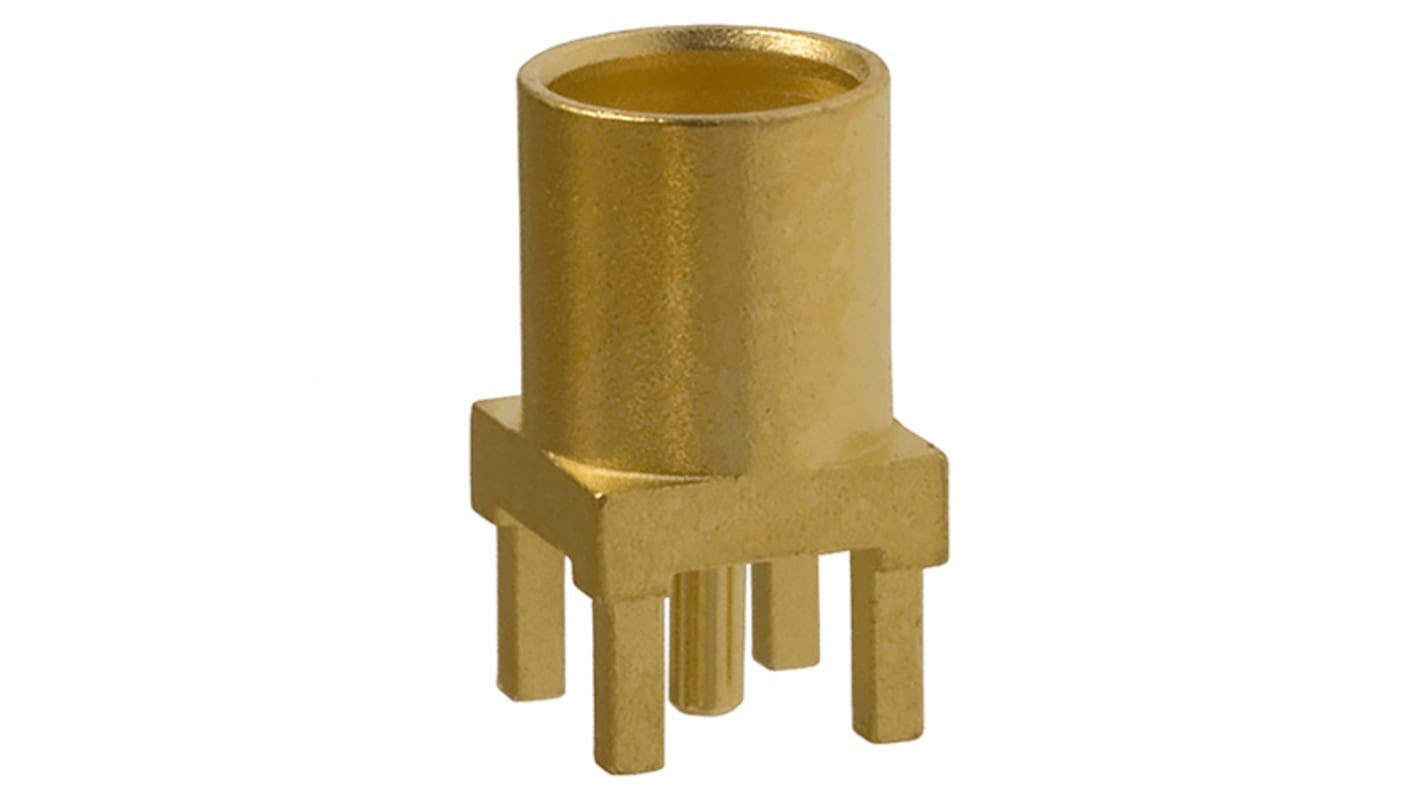

Cinch Connectors MMCX Series, Jack PCB Mount MMCX Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 885-9936
- Mfr. Part No.:
- 135-3701-211
- Brand:
- Cinch Connectors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 885-9936
- Mfr. Part No.:
- 135-3701-211
- Brand:
- Cinch Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cinch Connectors | |
| Gender | Female | |
| Coaxial Connector Type | MMCX Connector | |
| Mounting Type | PCB Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Cable Type | RG178/U | |
| Operating Frequency | 0 to 6GHz | |
| Body Plating | Gold over Nickel over Copper | |
| Series | MMCX | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold over Nickel over Copper | |
| Mating Type | Quick Connect | |
| Series Number | 135 | |
Select all | ||
|---|---|---|
Brand Cinch Connectors | ||
Gender Female | ||
Coaxial Connector Type MMCX Connector | ||
Mounting Type PCB Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Cable Type RG178/U | ||
Operating Frequency 0 to 6GHz | ||
Body Plating Gold over Nickel over Copper | ||
Series MMCX | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel over Copper | ||
Mating Type Quick Connect | ||
Series Number 135 | ||
- COO (Country of Origin):
- CN
MMCX 50 Ohm PCB Mount Connectors
Cinch Connectivity range of 50 ohm professional grade PCB mount MMCX connectors with brass body and gold plated contact pin. The 50 ohm professional grade PCB MMCX connectors are available as straight or right angle making them suitable for a wide range of applications.
Max Frequency - 6 GHz
Impedance - 50 Ohm
Operating Temperature - 65°C to + 165°C
Impedance - 50 Ohm
Operating Temperature - 65°C to + 165°C
Cinch MMCX Coaxial Connectors
