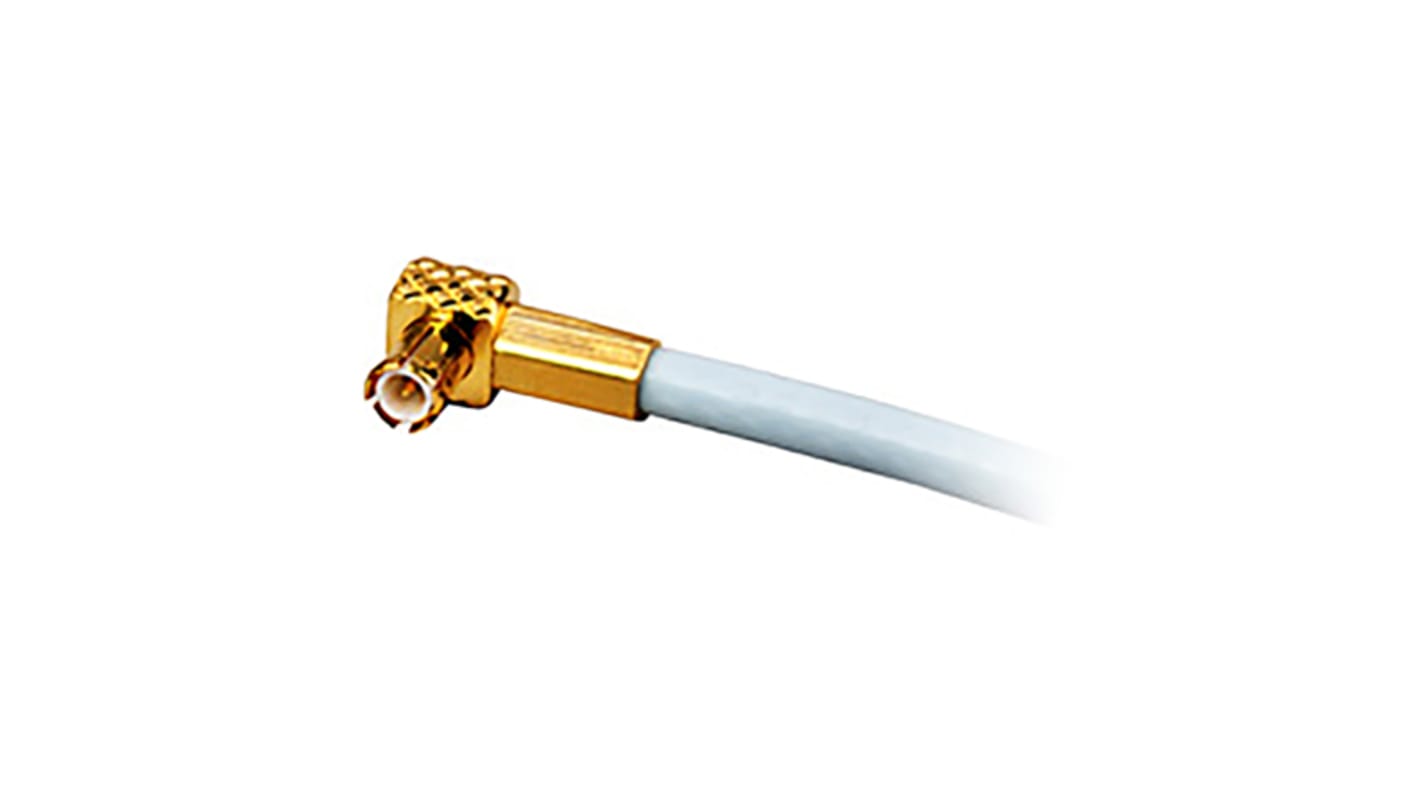

Cinch Connectors MCX Series, Plug Cable Mount MCX Connector, 50Ω, Crimp Termination, Right Angle Body
- RS Stock No.:
- 885-9901
- Mfr. Part No.:
- 133-3404-101
- Brand:
- Cinch Connectors
- RS Stock No.:
- 885-9901
- Mfr. Part No.:
- 133-3404-101
- Brand:
- Cinch Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cinch Connectors | |
| Coaxial Connector Type | MCX Connector | |
| Gender | Male | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Crimp | |
| Body Orientation | Right Angle | |
| Cable Type | RG-188DS, RG-316DS | |
| Operating Frequency | 0 to 6GHz | |
| Body Plating | Gold over Nickel over Copper | |
| Series | MCX | |
| Contact Material | Brass | |
| Contact Plating | Gold over Nickel over Copper | |
| Mating Type | Quick Connect | |
| Series Number | 133 | |
| Select all | ||
|---|---|---|
Brand Cinch Connectors | ||
Coaxial Connector Type MCX Connector | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Right Angle | ||
Cable Type RG-188DS, RG-316DS | ||
Operating Frequency 0 to 6GHz | ||
Body Plating Gold over Nickel over Copper | ||
Series MCX | ||
Contact Material Brass | ||
Contact Plating Gold over Nickel over Copper | ||
Mating Type Quick Connect | ||
Series Number 133 | ||
MCX 50 Ohm Crimp Plug
Cinch Connectivity range of 50 ohm professional grade MCX crimp connectors with brass body and gold plated contact pin. The 50 ohm professional grade MCX crimp plugs are supplied as a three section connector with a crimp sleeve, contact pin and body assembly, to make cable installation quick and easy.
Max Frequency - 6 GHz
Impedance - 50 Ohm
Operating Temperature - 65°C to + 165°C
Impedance - 50 Ohm
Operating Temperature - 65°C to + 165°C
Cinch MCX Coaxial Connectors
