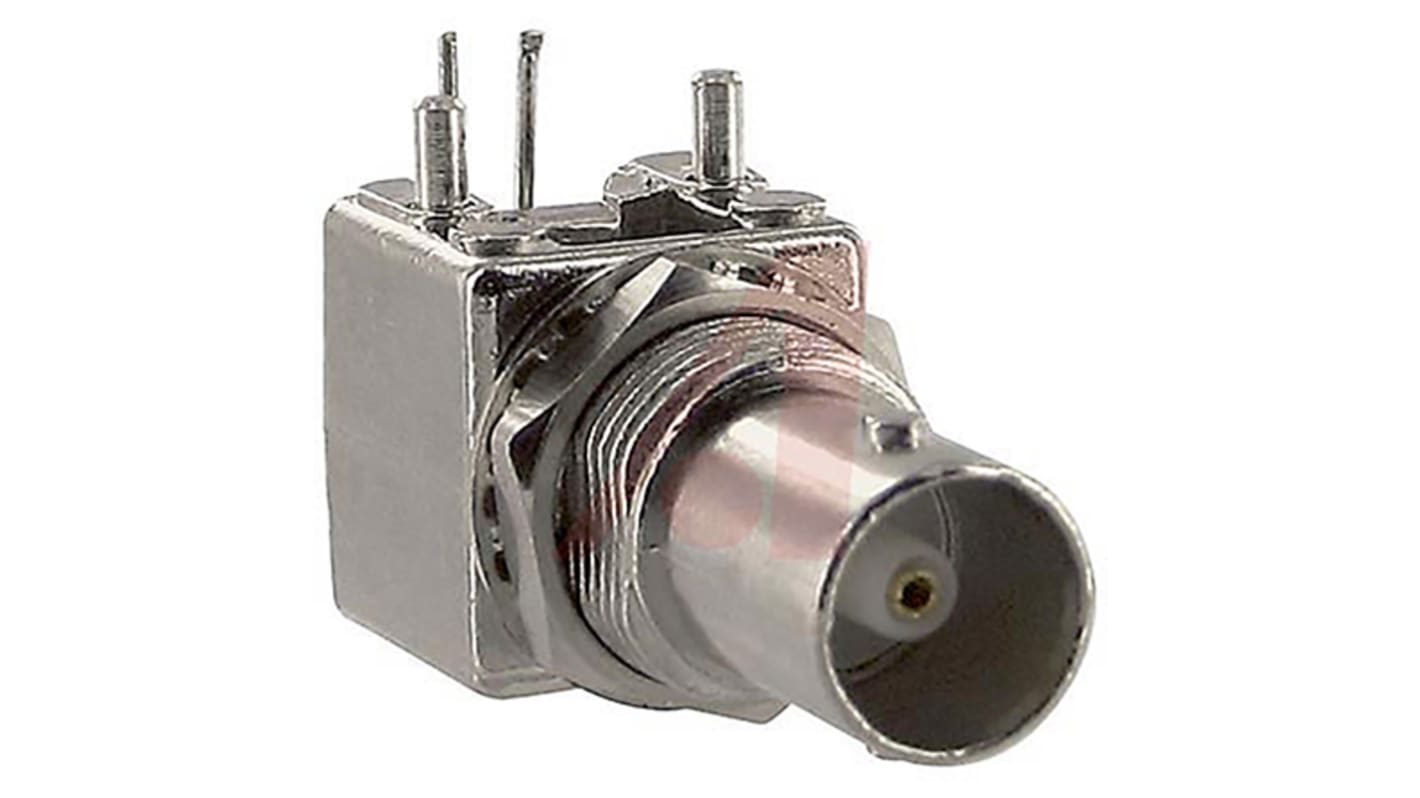

Cinch Connectors, Jack PCB Mount BNC Connector, 75Ω, Through Hole Termination, Right Angle Body
- RS Stock No.:
- 885-8888
- Mfr. Part No.:
- CPBNCPC010
- Brand:
- Cinch Connectors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 885-8888
- Mfr. Part No.:
- CPBNCPC010
- Brand:
- Cinch Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cinch Connectors | |
| Gender | Female | |
| Coaxial Connector Type | BNC Connector | |
| Mounting Type | PCB Mount | |
| Impedance | 75Ω | |
| Termination Method | Through Hole | |
| Body Orientation | Right Angle | |
| Cable Type | RG59 | |
| Bulkhead | Yes | |
| Operating Frequency | 0 to 2GHz | |
| Body Plating | Nickel | |
| Polarity | Normal | |
| Contact Material | Beryllium Copper, Brass | |
| Contact Plating | Gold | |
Select all | ||
|---|---|---|
Brand Cinch Connectors | ||
Gender Female | ||
Coaxial Connector Type BNC Connector | ||
Mounting Type PCB Mount | ||
Impedance 75Ω | ||
Termination Method Through Hole | ||
Body Orientation Right Angle | ||
Cable Type RG59 | ||
Bulkhead Yes | ||
Operating Frequency 0 to 2GHz | ||
Body Plating Nickel | ||
Polarity Normal | ||
Contact Material Beryllium Copper, Brass | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- TW
BNC Coaxial Connectors
A range of BNC coaxial connectors from Cinch that are designed for use with applications such as test equipment and analogue/digital connectivity.
Solder or Crimp Versions Available
Cinch BNC Range
