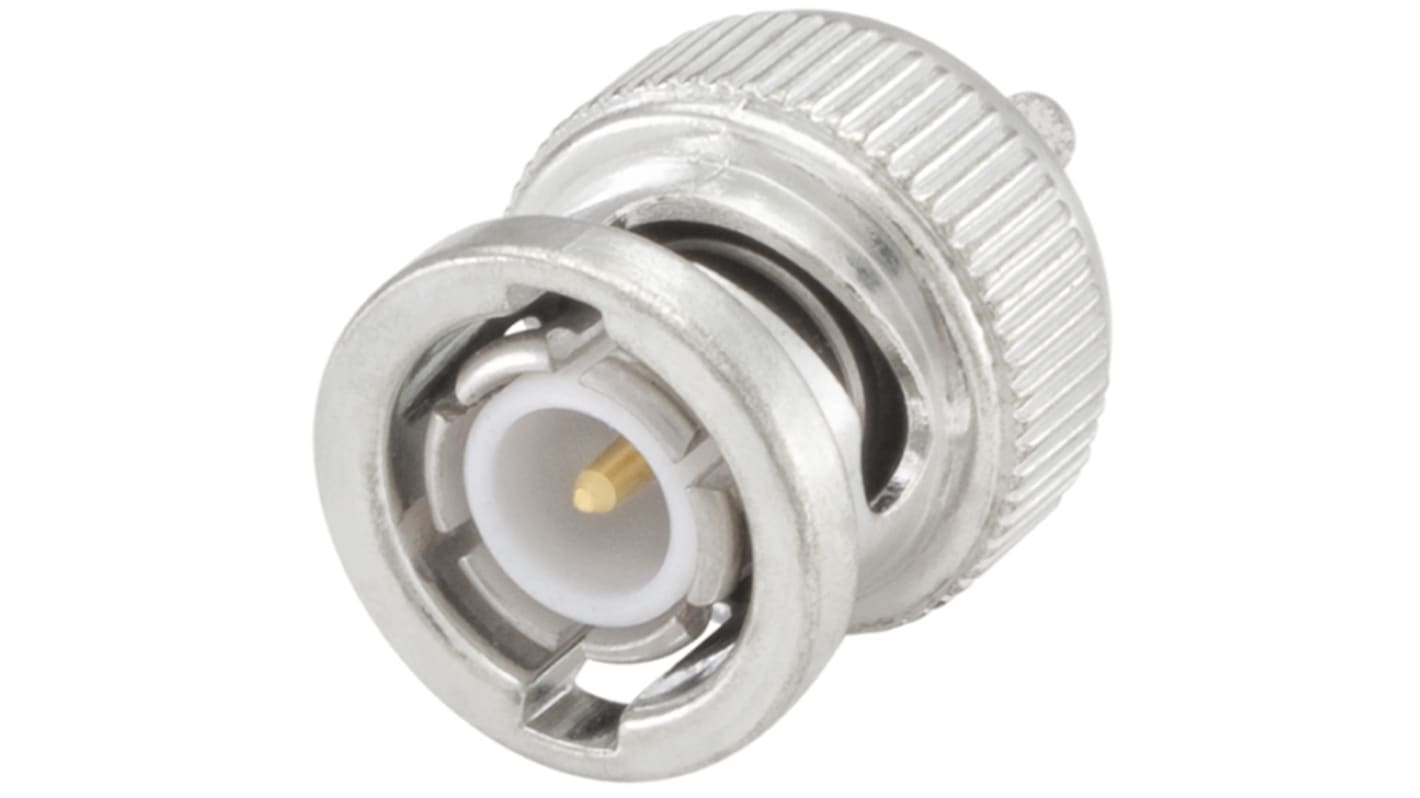

Rosenberger BNC Series Coaxial Connector Cable Male BNC, 50 Ω, Straight Body Crimp
- RS Stock No.:
- 819-4298
- Distrelec Article No.:
- 146-43-809
- Mfr. Part No.:
- 51S107-802N5
- Brand:
- Rosenberger
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£12.85
(exc. VAT)
£15.42
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 600 unit(s) shipping from 12 October 2026
- Plus 200 unit(s) shipping from 16 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £12.85 |
| 10 - 24 | £12.21 |
| 25 - 49 | £11.55 |
| 50 - 99 | £10.88 |
| 100 + | £10.58 |
*price indicative
- RS Stock No.:
- 819-4298
- Distrelec Article No.:
- 146-43-809
- Mfr. Part No.:
- 51S107-802N5
- Brand:
- Rosenberger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rosenberger | |
| Coaxial Connector Type | BNC | |
| Product Type | Coaxial Connector | |
| Mount Type | Cable | |
| Impedance | 50Ω | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Cable Type | RG174A/U, RG188A/U, RG316/U | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 10GHz | |
| Body Plating | Flash White Bronze | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Crimp | |
| Polarity | Normal | |
| Maximum Operating Temperature | 155°C | |
| Series | BNC | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Contact Material | Copper Zinc Alloy | |
| Contact Plating | Nickel | |
| Select all | ||
|---|---|---|
Brand Rosenberger | ||
Coaxial Connector Type BNC | ||
Product Type Coaxial Connector | ||
Mount Type Cable | ||
Impedance 50Ω | ||
Connector Gender Male | ||
Orientation Straight | ||
Cable Type RG174A/U, RG188A/U, RG316/U | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 10GHz | ||
Body Plating Flash White Bronze | ||
Minimum Operating Temperature -55°C | ||
Termination Type Crimp | ||
Polarity Normal | ||
Maximum Operating Temperature 155°C | ||
Series BNC | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Contact Material Copper Zinc Alloy | ||
Contact Plating Nickel | ||
- COO (Country of Origin):
- HU
Rosenberger BNC RF Coaxial Cable Mount Plug Connectors
A range of 50 OHM BNC RF coaxial connectors available as straight or right angle coaxial plugs for use with a variety of coaxial cable types. These 50 OHM BNC RF coaxial cable mount jack connectors have a mating interface according to IEC 60169-8, MIL-PRF-39012, CECC 2212 and a brass body with a white bronze over silver plating. BNC coaxial connectors with stock numbers 819-4295, 819-4298 and 819-4308 have crimp terminations and are supplied with a crimp ferrule.
