Telegartner BNC Series Panel Mount Female BNC, 75 Ω, Straight Body Crimp
- RS Stock No.:
- 777-0620
- Mfr. Part No.:
- J01003A1348
- Brand:
- Telegartner
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£10.23
(exc. VAT)
£12.28
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
- Plus 10 unit(s) shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £10.23 |
| 25 - 99 | £9.41 |
| 100 - 249 | £8.59 |
| 250 - 499 | £8.18 |
| 500 + | £5.43 |
*price indicative
- RS Stock No.:
- 777-0620
- Mfr. Part No.:
- J01003A1348
- Brand:
- Telegartner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telegartner | |
| Coaxial Connector Type | BNC | |
| Product Type | Coaxial Connector | |
| Mount Type | Panel Mount | |
| Impedance | 75Ω | |
| Orientation | Straight | |
| Connector Gender | Female | |
| Cable Type | RG59B/U | |
| Size | Standard | |
| Bulkhead | Yes | |
| Operating Frequency | 4GHz | |
| Minimum Operating Temperature | 0°C | |
| Body Plating | Nickel | |
| Termination Type | Crimp | |
| Polarity | Normal | |
| Maximum Operating Temperature | 155°C | |
| Series | BNC | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Material | Beryllium Copper Nickel Lead Alloy Copper Zinc Lead Alloy | |
| Contact Plating | Nickel over Copper | |
| Select all | ||
|---|---|---|
Brand Telegartner | ||
Coaxial Connector Type BNC | ||
Product Type Coaxial Connector | ||
Mount Type Panel Mount | ||
Impedance 75Ω | ||
Orientation Straight | ||
Connector Gender Female | ||
Cable Type RG59B/U | ||
Size Standard | ||
Bulkhead Yes | ||
Operating Frequency 4GHz | ||
Minimum Operating Temperature 0°C | ||
Body Plating Nickel | ||
Termination Type Crimp | ||
Polarity Normal | ||
Maximum Operating Temperature 155°C | ||
Series BNC | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Material Beryllium Copper Nickel Lead Alloy Copper Zinc Lead Alloy | ||
Contact Plating Nickel over Copper | ||
- COO (Country of Origin):
- DE

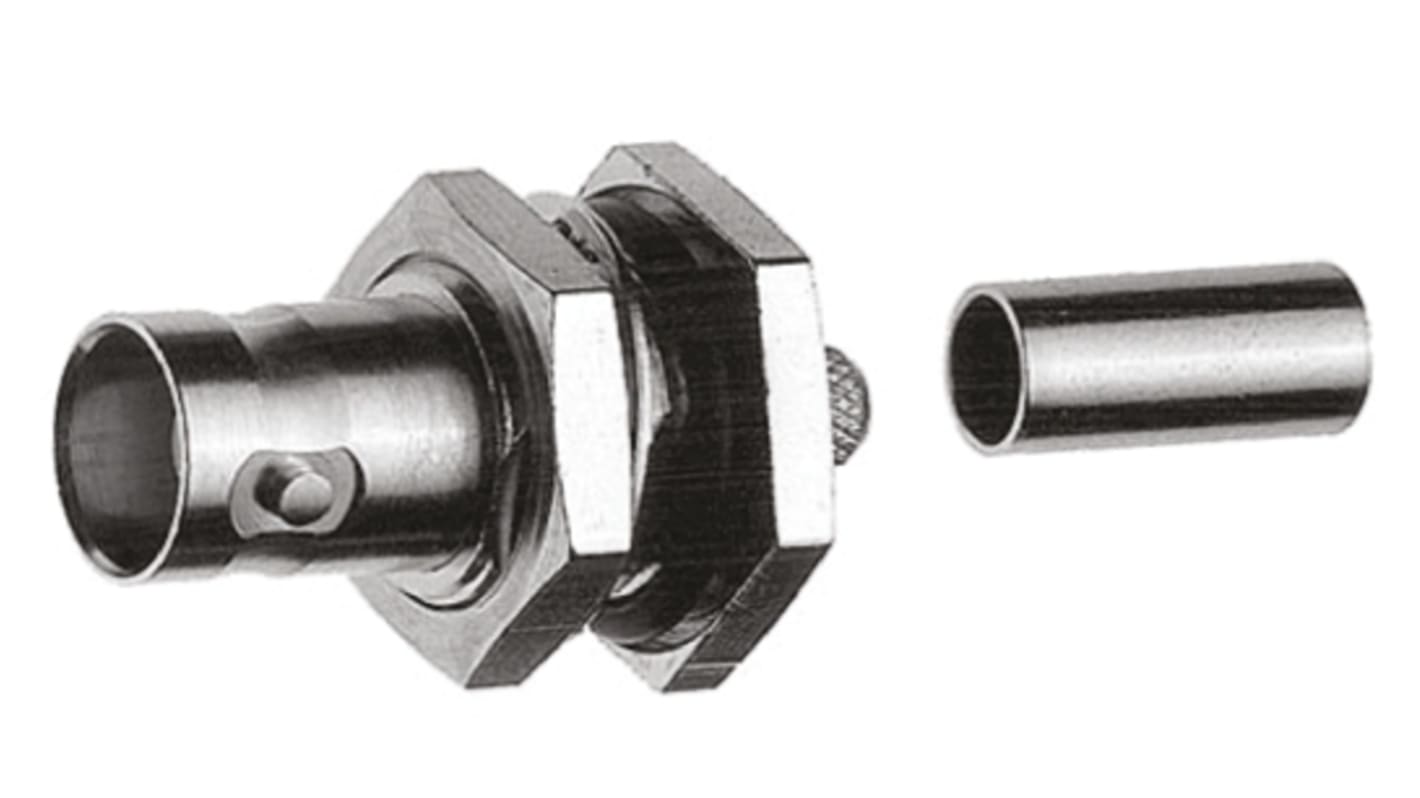

Telegartner BNC Bulkhead Jack Crimp RF Coaxial Connector, 75 Ohm
BNC bulkhead jack crimp RF coaxial connectors with a 75Ω impedance which can be used up to 4 GHz. These BNC straight plug RF coaxial connectors have crimp terminations, a nickel plated brass finish, a bayonet coupling mechanism and an IP54 rated sealing when mated with jacks, in addition, stock number 777-0611 has an insulating flange.
These BNC bulkhead jack crimp RF coaxial connectors are for use with RG 59B/U cable
Telegärtner BNC RF Connectors
Standards
IEC 61 169-8
