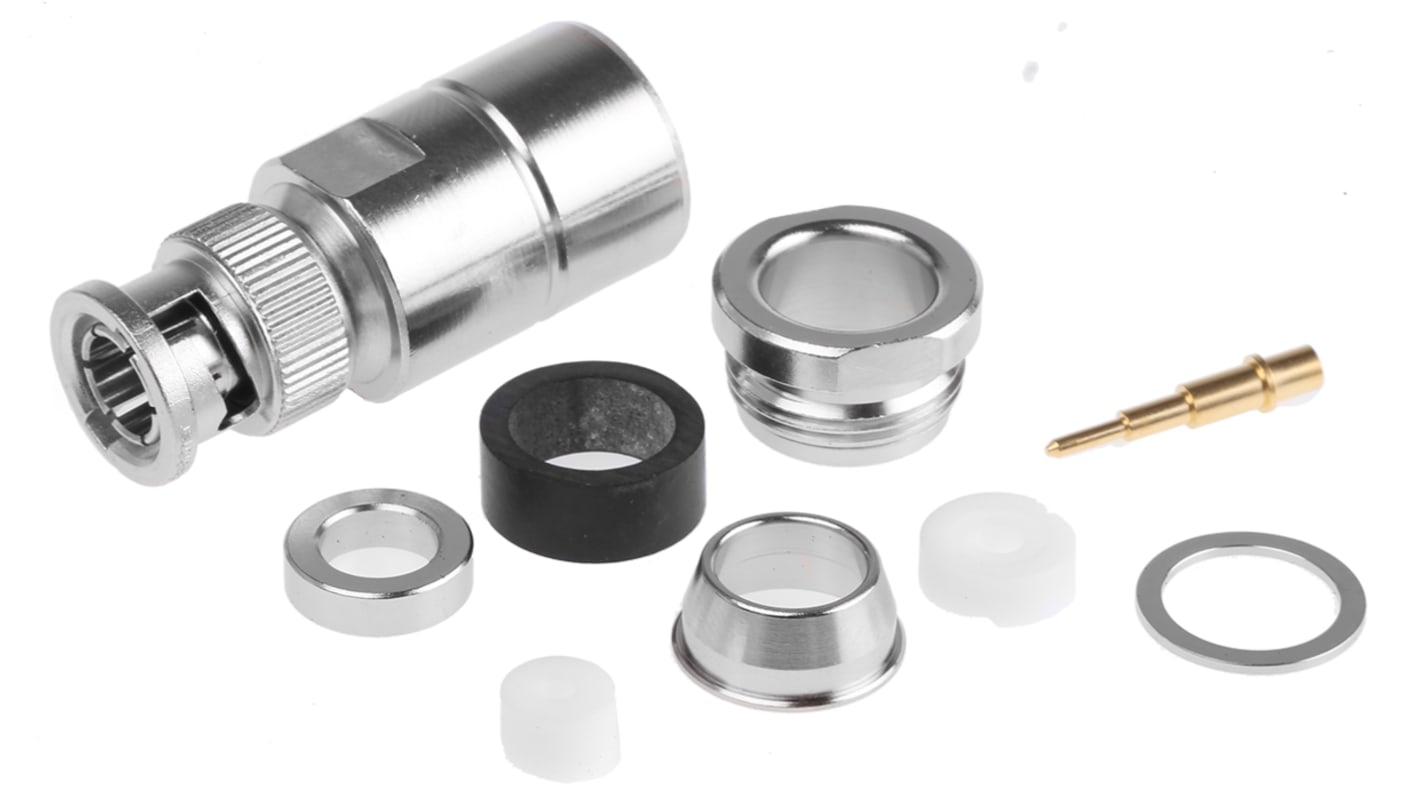

Telegartner, Plug Cable Mount BNC Connector, 75Ω, Clamp Termination, Straight Body

RS Stock No.:: 777-0595
Mfr. Part No.:: J01002A1940
Brand:: Telegartner

Telegartner, Plug Cable Mount BNC Connector, 75Ω, Clamp Termination, Straight Body

Available to back order for despatch 06/08/2024

Price Each

£17.59

(exc. VAT)

£21.11

(inc. VAT)

Units	Per unit
1 - 24	£17.59
25 - 99	£16.18
100 - 249	£15.22
250 - 499	£14.42
500 +	£13.81

RS Stock No.:: 777-0595
Mfr. Part No.:: J01002A1940
Brand:: Telegartner

Technical Reference

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

Telegartner BNC Straight Plug RF Coaxial Connector, 75 Ohm

BNC straight plug RF coaxial connectors with a 75Ω impedance which can be used up to 4 GHz. These BNC straight plug RF coaxial connectors have a nickel plated brass finish, a bayonet coupling mechanism and an IP54 rated sealing when mated with jacks.
Stock number 777-0595 is a cable clamp BNC plug connector with a pressure sleeve and can be used with the following cables: RG-11A/U, RG-216/U
Stock number 777-0608 is a standard crimp/crimp BNC plug connector and can be used with the following cables: RG 62A/U

Standards

IEC 61 169-8

Telegärtner BNC RF Connectors

Specifications

Attribute	Value
Coaxial Connector Type	BNC Connector
Gender	Male
Mounting Type	Cable Mount
Impedance	75Ω
Termination Method	Clamp
Body Orientation	Straight
Cable Type	RG11 A/U, RG216/U
Size	Standard
Bulkhead	No
Operating Frequency	4GHz
Body Plating	Nickel
Polarity	Normal
Contact Material	Beryllium Copper, Copper Nickel Lead Alloy, Copper Zinc Lead Alloy
Contact Plating	Copper Nickel Gold Alloy, Nickel over Copper
