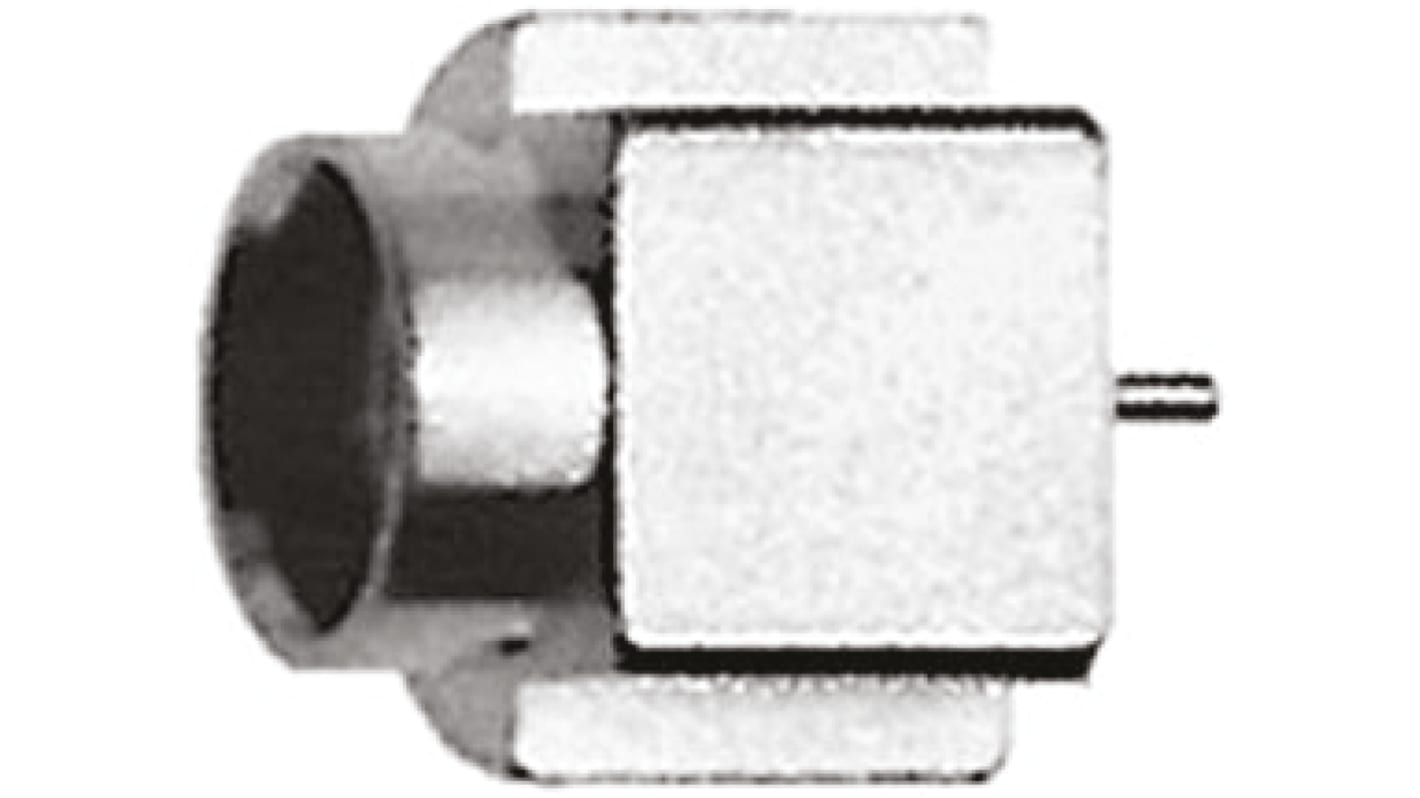

Telegartner, jack Surface Mount, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 738-7499
- Mfr. Part No.:
- J01341A0081
- Brand:
- Telegartner
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 738-7499
- Mfr. Part No.:
- J01341A0081
- Brand:
- Telegartner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telegartner | |
| Gender | Female | |
| Mounting Type | Surface Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Size | Micro Miniature | |
| Operating Frequency | 0 → 6GHz | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold over Nickel | |
| Mating Type | Push-Pull | |
Select all | ||
|---|---|---|
Brand Telegartner | ||
Gender Female | ||
Mounting Type Surface Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Size Micro Miniature | ||
Operating Frequency 0 → 6GHz | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel | ||
Mating Type Push-Pull | ||
- COO (Country of Origin):
- DE
Telegartner MMCX PCB Receptacle Connectors
Telegartner MMCX series of micro-miniature PCB connectors is a miniature version of the MCX and also incorporates a snap
coupling and are suitable for use up to 6 GHz, the connectors impedance is controlled at 50 Ω. MMCX PCB connector versions are available for mounting to printed circuit boards using thru-hole soldering, press-fit and SMT. Due to their small size, these MMCX PCB connectors can be used in the smallest of instruments, hand held video games as well as personal communication equipment.
coupling and are suitable for use up to 6 GHz, the connectors impedance is controlled at 50 Ω. MMCX PCB connector versions are available for mounting to printed circuit boards using thru-hole soldering, press-fit and SMT. Due to their small size, these MMCX PCB connectors can be used in the smallest of instruments, hand held video games as well as personal communication equipment.
Over 500 mating cycles
insulation resistance 5GΩ
50Ω impedance
insulation resistance 5GΩ
50Ω impedance
Standards
EN 122340
