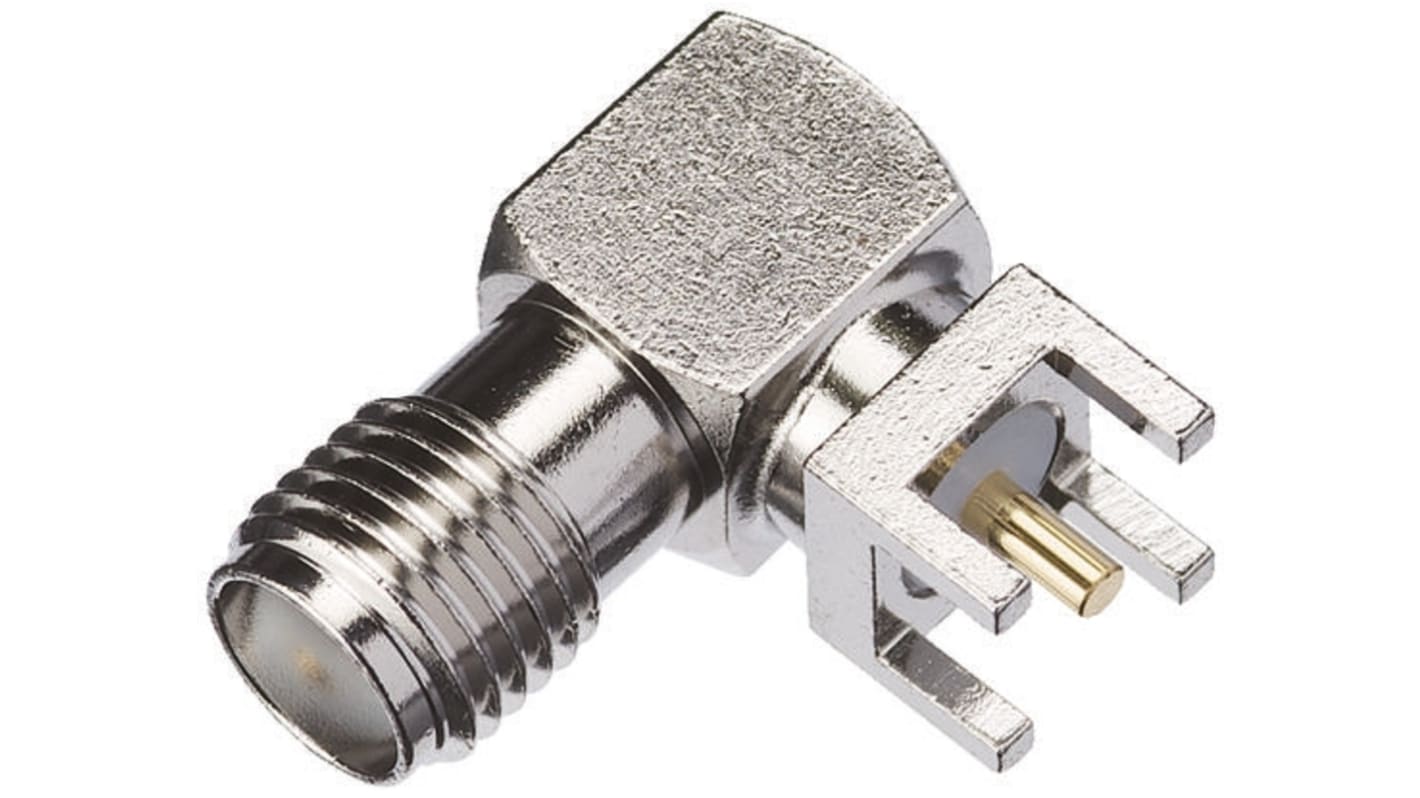

Yuetsu Right Angle PCB Mount SMA Connector, jack

  • RS Stock No. 664-6384
  • Mfr. Part No. 089-PN52A
  • Brand Yuetsu
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Gold Plated

Connectors with stainless steel bodies and gold plating, which will mate with connectors conforming to MIL-C-39012 and BS 9210 N0006. Available for a variety of cable sizes, mounting configurations and cable and contact termination arrangements.

Good high frequency performance at high power ratings in small diameters
Connector variants suitable for semi-rigid or flexible cables
For use with most commonly used microwave cables
Captive contact versions ensure correct positioning when mating to other assemblies

Specifications
Attribute Value
Coaxial Connector Type SMA Connector
Gender Female
Mounting Type PCB Mount
Termination Method Solder
Body Orientation Right Angle
Size Subminiature
Bulkhead No
Operating Frequency 0 to 12.4 GHz, 0 to 18GHz
Polarity Normal
Contact Plating Gold
1 In stock for delivery within 5 working days
Price Each
£ 10.87
(exc. VAT)
£ 13.04
(inc. VAT)
Units
Per unit
1 - 9
£10.87
10 - 49
£10.00
50 +
£9.46
Not available for guaranteed pre 9am/10am delivery
