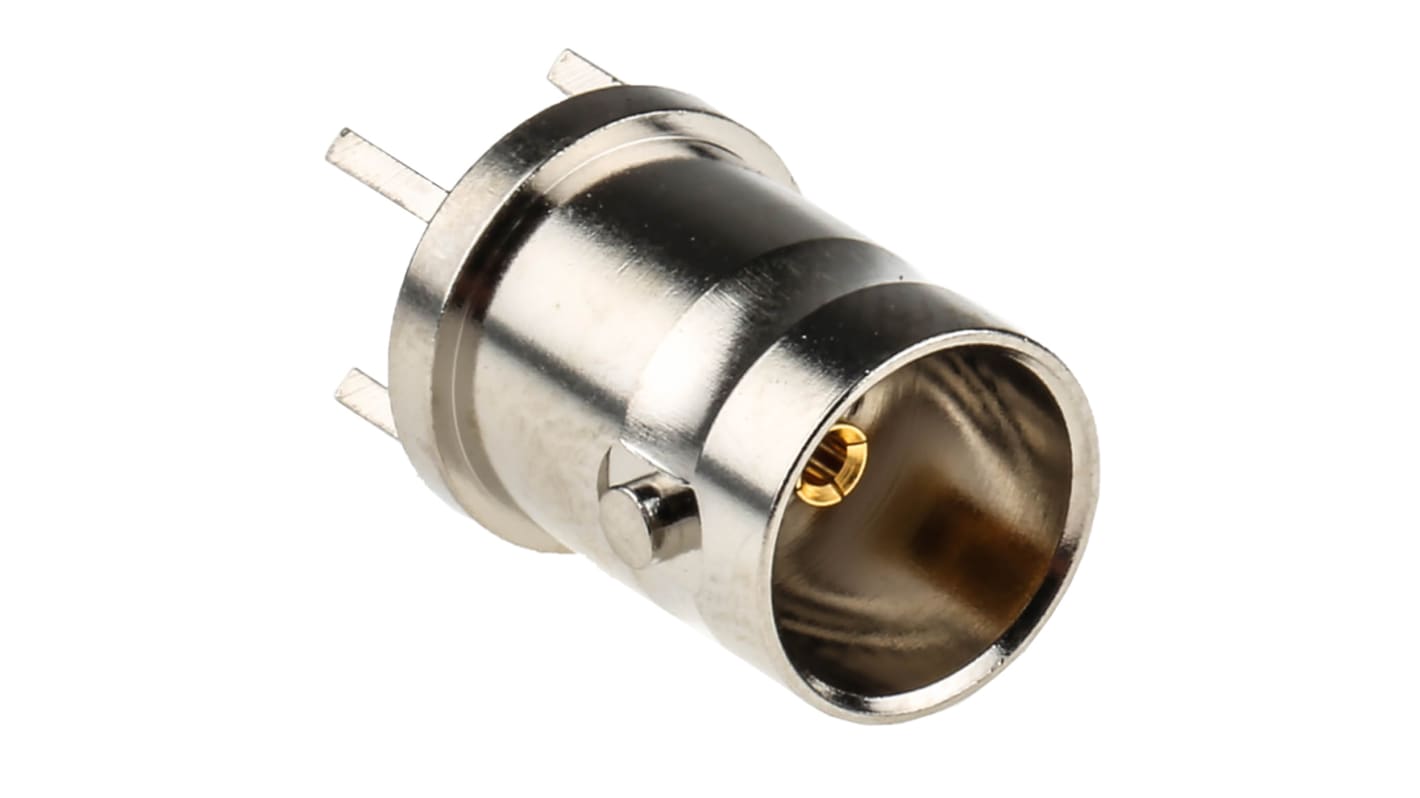

From RS PRO, this BNC RF connector is designed for connection to coaxial cable assemblies, and is PCB mounting for wire to device applications.

The connector has a robust metal plated body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is gold plated, for excellent conductivity over a long service life, and there is also a PTFE insulator for increased reliability.

Features and Benefits

• Shielded 90° BNC PCB Connector
• Gold contact ensures maximum efficiency
• PCB Mounting
• 75 Ω impedance
• Operating frequency of 4GhZ
• Insulation material: PTFE

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV
