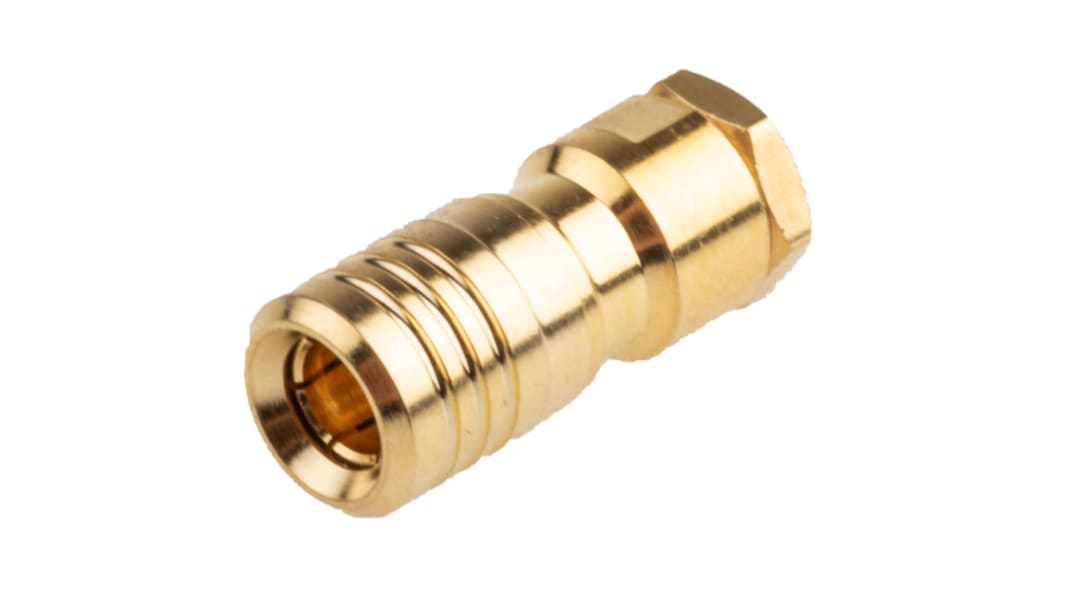

RS PRO, Jack Cable Mount SMB Connector, 50Ω, Clamp Termination, Straight Body
- RS Stock No.:
- 546-3333
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£6.19
(exc. VAT)
£7.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,642 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £6.19 |
| 15 - 49 | £5.66 |
| 50 - 99 | £4.94 |
| 100 - 249 | £4.51 |
| 250 + | £4.27 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£3.88
(exc. VAT)
£4.66
(inc. VAT)
- RS Stock No.:
- 546-3333
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Female | |
| Coaxial Connector Type | SMB Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Clamp | |
| Body Orientation | Straight | |
| Cable Type | RG174/U | |
| Size | Subminiature | |
| Operating Frequency | 4GHz | |
| Body Plating | Gold | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Female | ||
Coaxial Connector Type SMB Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Clamp | ||
Body Orientation Straight | ||
Cable Type RG174/U | ||
Size Subminiature | ||
Operating Frequency 4GHz | ||
Body Plating Gold | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- TW
RS PRO 50Ω Straight Cable Mount SMB Connector, jack, RG174/U
Recommended for use with RG174A/U cables, this straight female SMB coaxial connector from the RS PRO range is useful in data-transfer applications, as it easily and securely joins coaxial cables.
Coaxial cables (or coax cables) are used by homeowners, businesses and internet providers to convey data. When paired with a coaxial connector of the same type, this straight cable mount receptacle allows you to join two coax cables together, creating secure transmission lines.
The snap-on coupling mechanism means you can connect and disconnect the coax cables with ease. Once fastened, the connector should be clamped onto the cable for proper termination.
With an operating frequency of 4 GHz and a characteristic impedance of 50 Ω, this connector is well suited for coaxial transmission networks. You'll also find that the gold body plating and contact plating protects against vibration and wear from repeated insertions.
Coaxial cables (or coax cables) are used by homeowners, businesses and internet providers to convey data. When paired with a coaxial connector of the same type, this straight cable mount receptacle allows you to join two coax cables together, creating secure transmission lines.
The snap-on coupling mechanism means you can connect and disconnect the coax cables with ease. Once fastened, the connector should be clamped onto the cable for proper termination.
With an operating frequency of 4 GHz and a characteristic impedance of 50 Ω, this connector is well suited for coaxial transmission networks. You'll also find that the gold body plating and contact plating protects against vibration and wear from repeated insertions.
Features and Benefits
• Straight body female SMB connector
• RG174/U cable connector
• Beryllium copper contact material
• Cable mounting
• Clamp termination method
• Handy snap-on coupling mechanism
• Operating frequency of 4 GHz
• Characteristic impedance of 50 Ω
• Normal polarity
• Hard-wearing gold body plating and contact plating
• RG174/U cable connector
• Beryllium copper contact material
• Cable mounting
• Clamp termination method
• Handy snap-on coupling mechanism
• Operating frequency of 4 GHz
• Characteristic impedance of 50 Ω
• Normal polarity
• Hard-wearing gold body plating and contact plating
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
