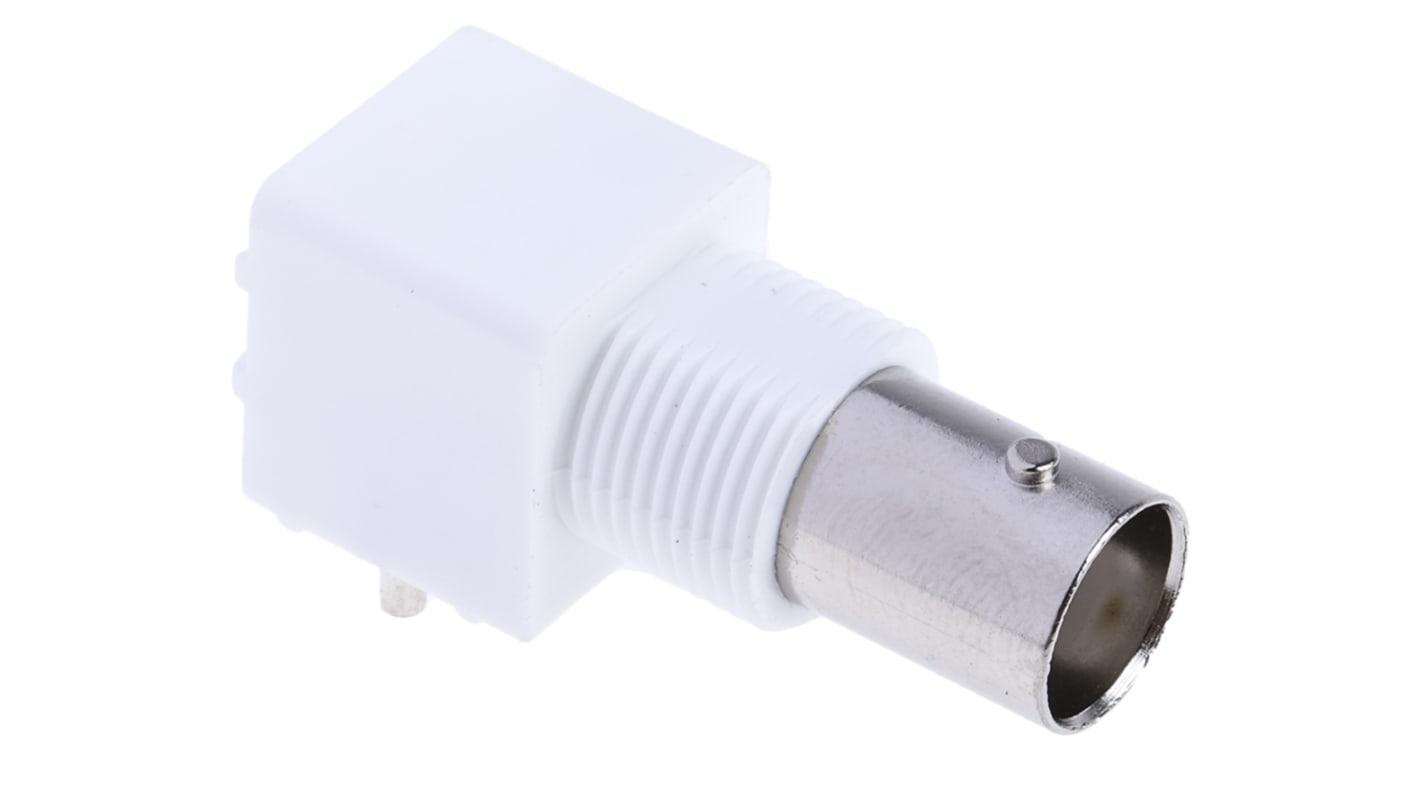

RS PRO BNC Series PCB Female BNC, 50 Ω, Right Angle Body Solder
- RS Stock No.:
- 526-5864
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£7.20
(exc. VAT)
£8.64
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 935 unit(s) ready to ship
- Plus 116 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £7.20 |
| 25 - 49 | £6.70 |
| 50 - 99 | £6.33 |
| 100 - 249 | £5.85 |
| 250 + | £5.36 |
*price indicative
- RS Stock No.:
- 526-5864
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Coaxial Connector | |
| Coaxial Connector Type | BNC | |
| Mount Type | PCB | |
| Impedance | 50Ω | |
| Connector Gender | Female | |
| Orientation | Right Angle | |
| Size | Standard | |
| Bulkhead | Yes | |
| Operating Frequency | 1GHz | |
| Minimum Operating Temperature | -40°C | |
| Body Plating | Nickel | |
| Maximum Operating Temperature | 60°C | |
| Termination Type | Solder | |
| Polarity | Normal | |
| Series | BNC | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Coaxial Connector | ||
Coaxial Connector Type BNC | ||
Mount Type PCB | ||
Impedance 50Ω | ||
Connector Gender Female | ||
Orientation Right Angle | ||
Size Standard | ||
Bulkhead Yes | ||
Operating Frequency 1GHz | ||
Minimum Operating Temperature -40°C | ||
Body Plating Nickel | ||
Maximum Operating Temperature 60°C | ||
Termination Type Solder | ||
Polarity Normal | ||
Series BNC | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- TW
RS PRO Low Profile PCB BNC Connector
From RS PRO, this BNC RF connector is designed for connection to coaxial cable assemblies, and features a bulkhead design for mounting to panels and chassis. It is PCB mounting for wire to device applications.
The connector has a robust body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is gold plated, for excellent conductivity over a long service life, and there is also a PTFE insulator for increased reliability.
Features and Benefits
• Insulated 90° BNC PCB Connector
• Gold contact ensures maximum efficiency
• PCB Mounting with Low Profile Design
• 50 Ω impedance
• Operating frequency of 4GhZ
• Insulation material: PTFE
Applications
BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.
• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Approvals
N/A
