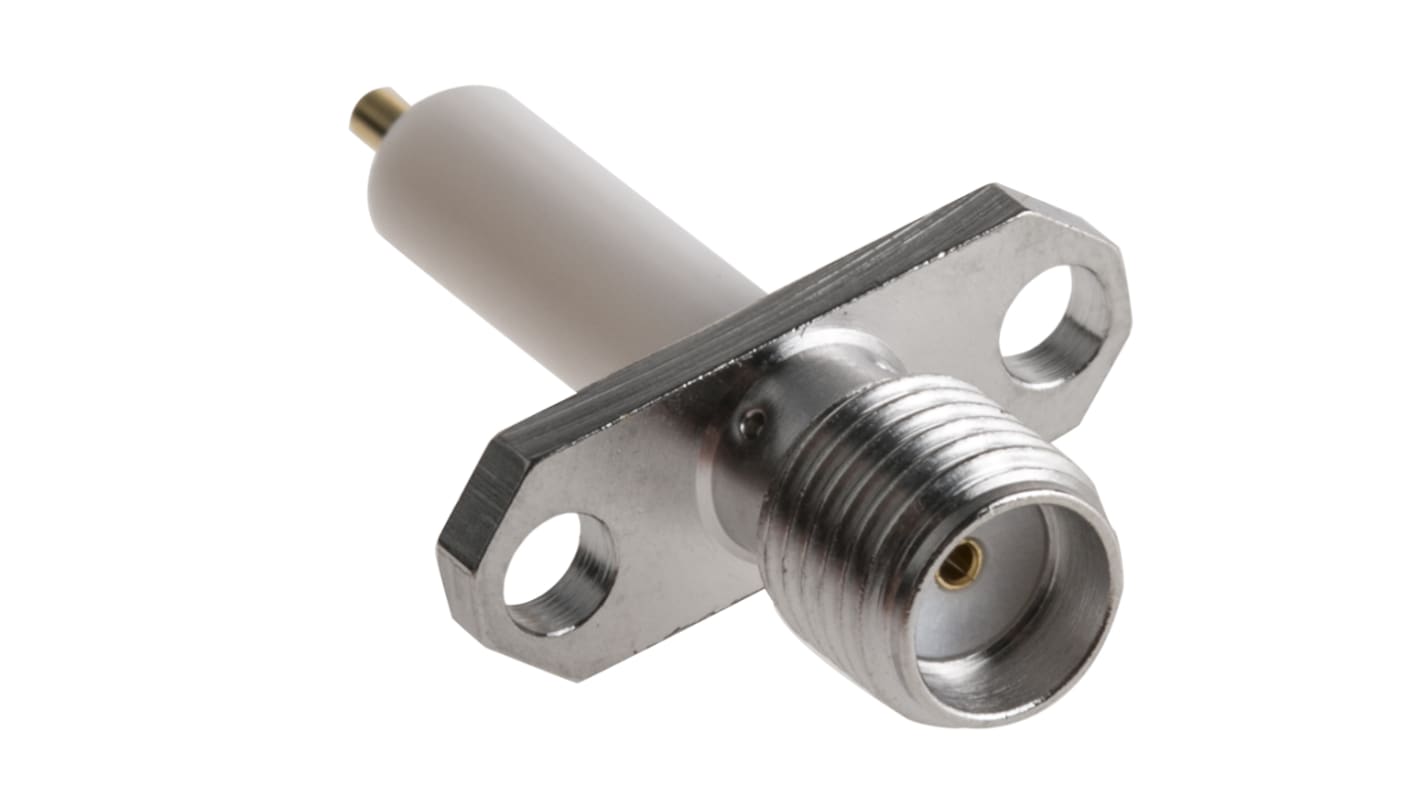

Radiall, Jack Flange Mount SMA Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 414-1357
- Mfr. Part No.:
- R124464000W
- Brand:
- Radiall
Save 23% when you buy 250 units
Subtotal (1 unit)*
£8.58
(exc. VAT)
£10.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 333 unit(s) ready to ship
- Plus 78 unit(s) ready to ship from another location
- Plus 500 unit(s) shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £8.58 |
| 15 - 49 | £7.32 |
| 50 - 99 | £7.05 |
| 100 - 249 | £6.81 |
| 250 + | £6.53 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£7.45
(exc. VAT)
£8.94
(inc. VAT)
- RS Stock No.:
- 414-1357
- Mfr. Part No.:
- R124464000W
- Brand:
- Radiall
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Radiall | |
| Coaxial Connector Type | SMA Connector | |
| Gender | Female | |
| Mounting Type | Flange Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Bulkhead | No | |
| Operating Frequency | 0 to 18GHz | |
| Minimum Operating Temperature | -65°C | |
| Body Plating | BBR | |
| Maximum Operating Temperature | +165°C | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold over Nickel | |
Select all | ||
|---|---|---|
Brand Radiall | ||
Coaxial Connector Type SMA Connector | ||
Gender Female | ||
Mounting Type Flange Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Bulkhead No | ||
Operating Frequency 0 to 18GHz | ||
Minimum Operating Temperature -65°C | ||
Body Plating BBR | ||
Maximum Operating Temperature +165°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel | ||
Stub Terminal 2 Hole
White bronze
Stub terminal
2 Hole
Approvals
-
Radiall SMA Commercial
SMA crimp termination types for use with a variety of flexible and semi-rigid cables
Cable plugs in captive contact form for mechanical reliability in adverse conditions, or non-captive form for optimum electrical performance
Bulkhead and panel types have captive contacts
Centre contacts require soldering unless otherwise stated
Connectors are available in gold plated and white bronze plated brass
End terminations and attenuators are in nickel plated brass
Cable plugs in captive contact form for mechanical reliability in adverse conditions, or non-captive form for optimum electrical performance
Bulkhead and panel types have captive contacts
Centre contacts require soldering unless otherwise stated
Connectors are available in gold plated and white bronze plated brass
End terminations and attenuators are in nickel plated brass
