Radiall, Plug Cable Mount SMB Connector, 50Ω, Clamp Termination, Straight Body
- RS Stock No.:
- 332-6686
- Mfr. Part No.:
- R114005000W
- Brand:
- Radiall
Bulk discount available
Subtotal (1 unit)*
£14.16
(exc. VAT)
£16.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 620 unit(s) shipping from 27 October 2025
- Plus 52 unit(s) shipping from 27 October 2025
- Plus 1,150 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £14.16 |
| 15 - 49 | £13.44 |
| 50 - 99 | £13.05 |
| 100 - 249 | £12.36 |
| 250 + | £11.53 |
*price indicative
- RS Stock No.:
- 332-6686
- Mfr. Part No.:
- R114005000W
- Brand:
- Radiall
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Radiall | |
| Gender | Male | |
| Coaxial Connector Type | SMB Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Clamp | |
| Body Orientation | Straight | |
| Cable Type | RG174, RG179, RG187, RG188, RG316 | |
| Operating Frequency | 0 to 4GHz | |
| Minimum Operating Temperature | -65°C | |
| Body Plating | Gold | |
| Maximum Operating Temperature | +165°C | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold over Nickel | |
Select all | ||
|---|---|---|
Brand Radiall | ||
Gender Male | ||
Coaxial Connector Type SMB Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Clamp | ||
Body Orientation Straight | ||
Cable Type RG174, RG179, RG187, RG188, RG316 | ||
Operating Frequency 0 to 4GHz | ||
Minimum Operating Temperature -65°C | ||
Body Plating Gold | ||
Maximum Operating Temperature +165°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel | ||

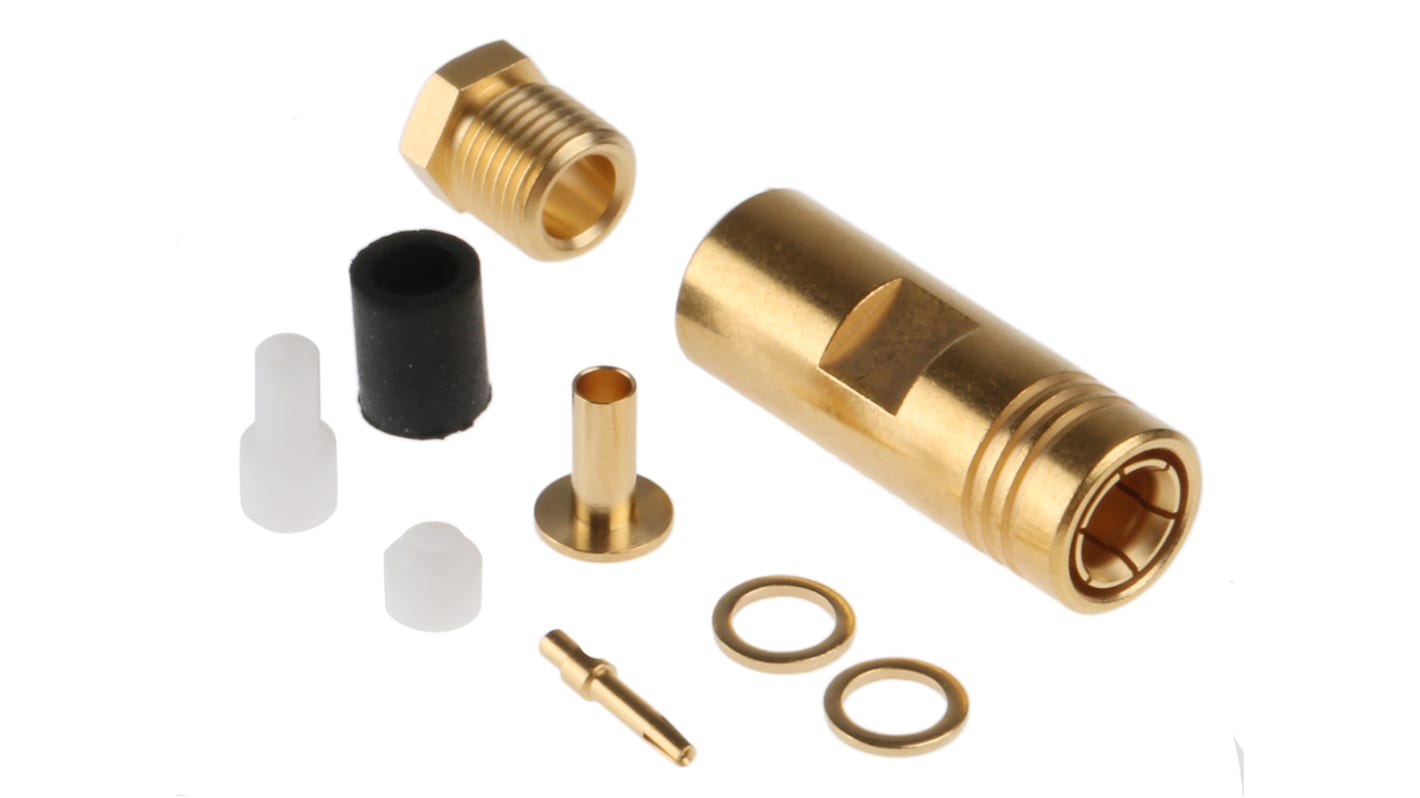

Radiall 50 Ohm SMB RF Coaxial Cable Clamp Plug Connectors
50 ohm SMB RF coaxial plug connectors with snap-on mating and cable clamp connection. These RF coax SMB straight cable clamp plugs have a gold plated nickel body, gold plated female centre contact and are suitable for use with a variety of RF coaxial cable types.
Approvals
MIL-C-309012
Radiall - SMB Gold Plated
Sub-miniature connectors to MIL-C-39012 with snap-on coupling for a reliable and quick/disconnect system. Both clamp and crimp termination versions available.
Clamp types have options for RG174 and RG178 cable types
Crimp types accept various cable types
Recommended crimp tool stock no. 456-778
Crimp types accept various cable types
Recommended crimp tool stock no. 456-778
