Radiall R141 Series Straight 50Ω Panel Mount Bulkhead Fitting BNC Connector, jack, Nickel, Solder Termination
- RS Stock No.:
- 295-7914
- Mfr. Part No.:
- R141559000W
- Brand:
- Radiall
Save 40% when you buy 250 units
Subtotal (1 unit)*
£10.59
(exc. VAT)
£12.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 199 unit(s) ready to ship
- Plus 67 unit(s) ready to ship from another location
- Plus 360 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £10.59 |
| 25 - 49 | £9.73 |
| 50 - 99 | £9.19 |
| 100 - 249 | £7.13 |
| 250 + | £6.31 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£7.52
(exc. VAT)
£9.02
(inc. VAT)
- RS Stock No.:
- 295-7914
- Mfr. Part No.:
- R141559000W
- Brand:
- Radiall
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Radiall | |
| Gender | Female | |
| Mounting Type | Panel Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Bulkhead | Yes | |
| Operating Frequency | 0 → 4GHz | |
| Minimum Operating Temperature | -65 °C, | |
| Body Plating | Nickel | |
| Maximum Operating Temperature | , +165 °C | |
| Polarity | Normal | |
| Series | R141 | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold | |
Select all | ||
|---|---|---|
Brand Radiall | ||
Gender Female | ||
Mounting Type Panel Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Bulkhead Yes | ||
Operating Frequency 0 → 4GHz | ||
Minimum Operating Temperature -65 °C, | ||
Body Plating Nickel | ||
Maximum Operating Temperature , +165 °C | ||
Polarity Normal | ||
Series R141 | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||

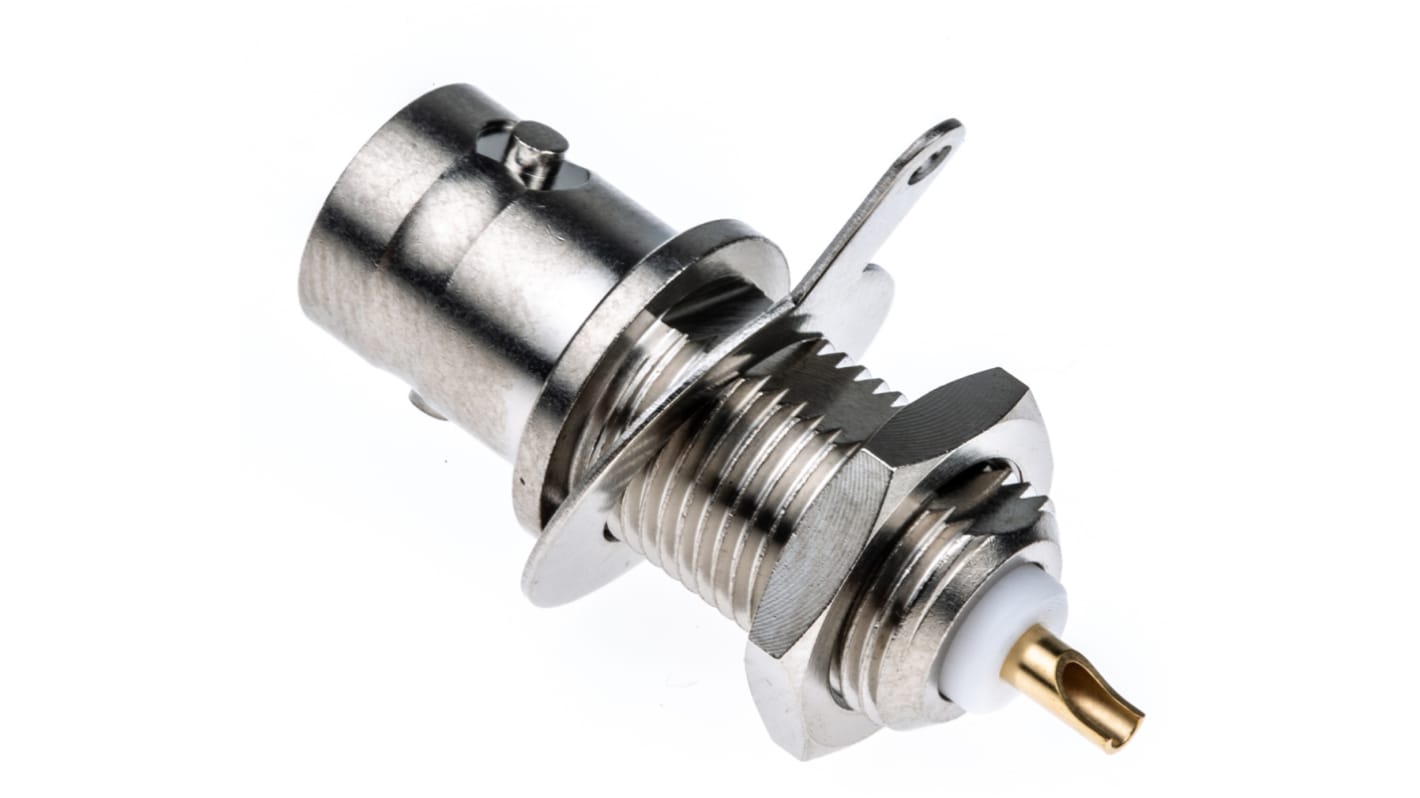

Standard bulkhead Jack
These Radiall BNC straight bulkhead Receptacles have a solder pot contact.
Approvals
7777
Radiall BNC RF Coaxial Connectors
Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
