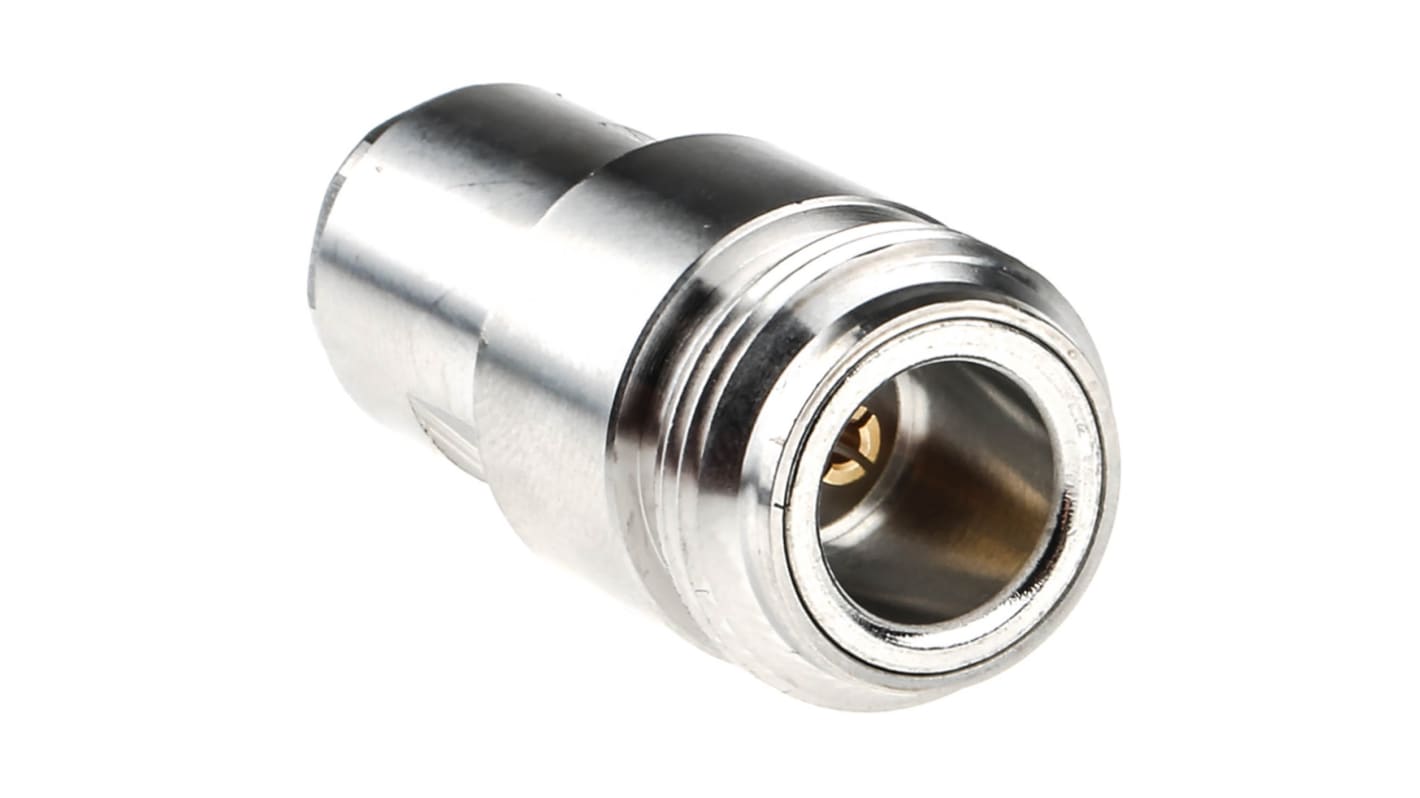

Radiall, Jack Cable Mount N Connector, 50Ω, Clamp Termination, Straight Body
- RS Stock No.:
- 295-6775
- Mfr. Part No.:
- R161206000W
- Brand:
- Radiall
Save 30% when you buy 250 units
Subtotal (1 unit)*
£33.50
(exc. VAT)
£40.20
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 121 left, ready to ship
- Plus 35 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £33.50 |
| 15 - 49 | £30.15 |
| 50 - 99 | £28.47 |
| 100 - 249 | £25.12 |
| 250 + | £23.45 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£12.10
(exc. VAT)
£14.52
(inc. VAT)
- RS Stock No.:
- 295-6775
- Mfr. Part No.:
- R161206000W
- Brand:
- Radiall
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Radiall | |
| Coaxial Connector Type | N Connector | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Clamp | |
| Body Orientation | Straight | |
| Cable Type | RG141, RG142, RG223, RG400, RG58 | |
| Operating Frequency | 0 to 11GHz | |
| Minimum Operating Temperature | -55°C | |
| Body Plating | Bronze | |
| Maximum Operating Temperature | +155°C | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold over Nickel | |
Select all | ||
|---|---|---|
Brand Radiall | ||
Coaxial Connector Type N Connector | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Clamp | ||
Body Orientation Straight | ||
Cable Type RG141, RG142, RG223, RG400, RG58 | ||
Operating Frequency 0 to 11GHz | ||
Minimum Operating Temperature -55°C | ||
Body Plating Bronze | ||
Maximum Operating Temperature +155°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel | ||
Radiall 50 Ohm N Series RF Coaxial Cable Clamp Jack Connectors
50 Ohm N series RF coaxial cable jack connectors with screw-on mating and a cable clamp termination. These 50 Ohm N series RF coax female cable jacks have a PTFE dielectric, nickel plated body, gold plated centre contact and are available for use with a variety of RF coaxial cable types including RG213, RG214, RG58 and RG 223.
Radiall
BBR (Bronze Blanc Radiall), white bronze plated 50Ω ’N’ connectors meet the demands for reliable, low loss performance required in high frequency communication applications.
Low intermodulation
Non-magnetic and corrosion resistant
Wear and scratch resistant
Non-magnetic and corrosion resistant
Wear and scratch resistant
