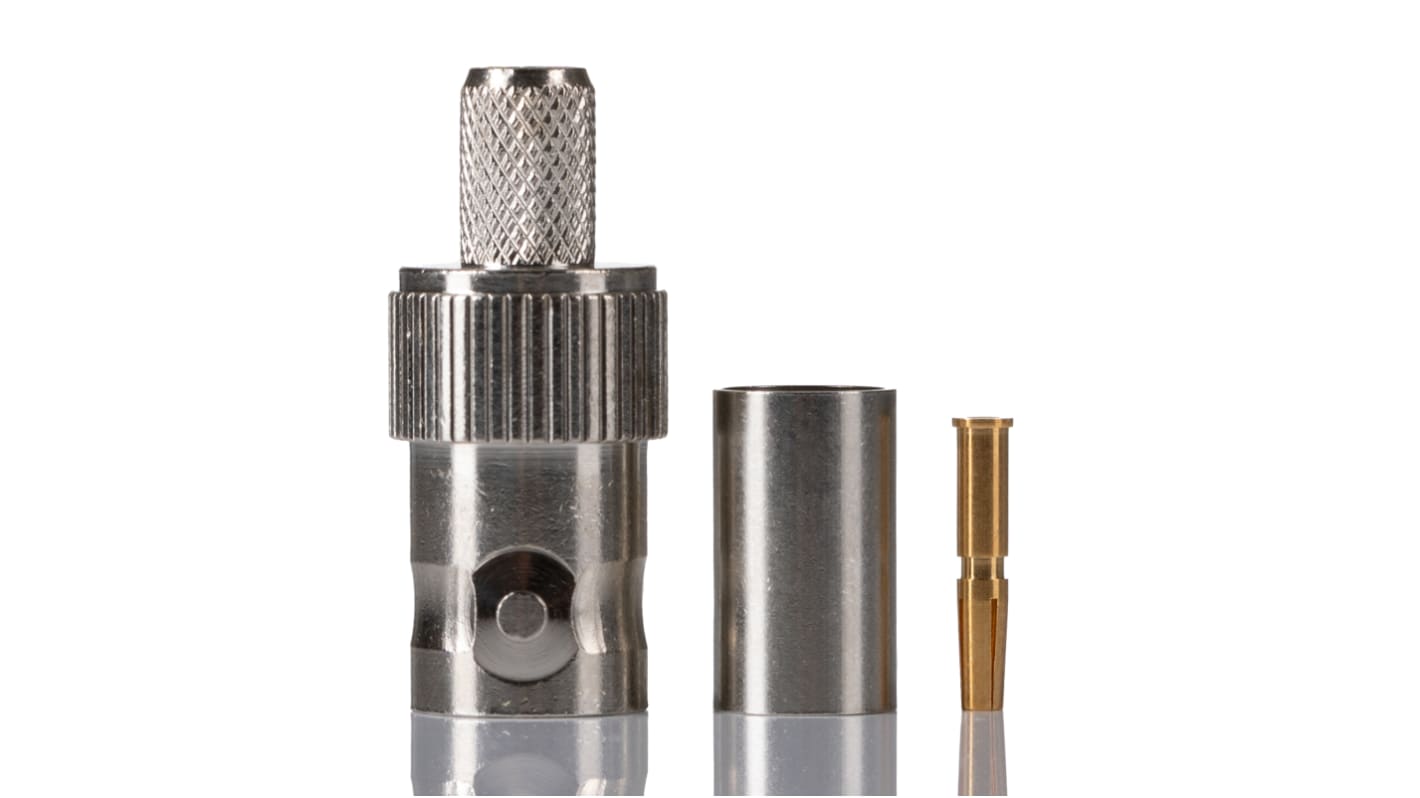

RS PRO, jack Cable Mount BNC Connector, 75Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 246-9464
- Brand:
- RS PRO
589 In stock - FREE next working day delivery available
11 available from Europe for delivery within 1 working day(s).
Added
Price Each
£4.48
(exc. VAT)
£5.38
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £4.48 |
| 5 - 9 | £4.35 |
| 10 - 24 | £4.17 |
| 25 + | £3.97 |
- RS Stock No.:
- 246-9464
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS PRO Straight Angle Cable Mount BNC Connector Jack, RG59
A straight angle cable mount BNC connector designed for use with RG59 coaxial cable to enable the smooth transmission of radio-frequency signals (RF). As a BNC connector the RS PRO BNC Connector jack features a quick connect bayonet fitting for easy tool free coax connection and disconnection.
The RS PRO BNC coax connector features a 3 GHz frequency range and includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.
Due to the ability to quickly connect or disconnect from connectors BNC coaxial connectors are ideal for a wide range of RF applications and are often used in test equipment, antenna connections, CCTV and medical equipment.
The RS PRO BNC coax connector features a 3 GHz frequency range and includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.
Due to the ability to quickly connect or disconnect from connectors BNC coaxial connectors are ideal for a wide range of RF applications and are often used in test equipment, antenna connections, CCTV and medical equipment.
Features and Benefits
- For use with RG59 Coaxial cable
- Cable mount
- Crimp termination
- Straight orientation
- Working Voltage of 500V
- Operating temperature range of -40°C to +125°C
Approvals and Standards: CE, ROHS
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Coaxial Connector Type | BNC Connector |
| Mounting Type | Cable Mount |
| Impedance | 75Ω |
| Termination Method | Crimp |
| Body Orientation | Straight |
| Cable Type | RG59 |
| Operating Frequency | 3GHz |
| Body Plating | Nickel |
| Minimum Operating Temperature | +85°C |
| Maximum Operating Temperature | -40°C |
| Polarity | Normal |
| Series | BNC |
| Contact Material | Copper |
| Contact Plating | Gold |
