RS PRO, Plug Cable Mount BNC Connector, 50Ω, Clamp Termination, Right Angle Body
- RS Stock No.:
- 246-9444
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£6.77
(exc. VAT)
£8.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 881 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £6.77 |
5 - 9 | £6.57 |
10 - 24 | £6.31 |
25 + | £6.00 |
*price indicative
- RS Stock No.:
- 246-9444
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Coaxial Connector Type | BNC Connector | |
Gender | Male | |
Mounting Type | Cable Mount | |
Impedance | 50Ω | |
Termination Method | Clamp | |
Body Orientation | Right Angle | |
Cable Type | Coaxial | |
Operating Frequency | 4GHz | |
Body Plating | Nickel | |
Minimum Operating Temperature | +165°C | |
Maximum Operating Temperature | -45°C | |
Series | BNC | |
Contact Material | Copper | |
Contact Plating | Gold | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Coaxial Connector Type BNC Connector | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Clamp | ||
Body Orientation Right Angle | ||
Cable Type Coaxial | ||
Operating Frequency 4GHz | ||
Body Plating Nickel | ||
Minimum Operating Temperature +165°C | ||
Maximum Operating Temperature -45°C | ||
Series BNC | ||
Contact Material Copper | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CN

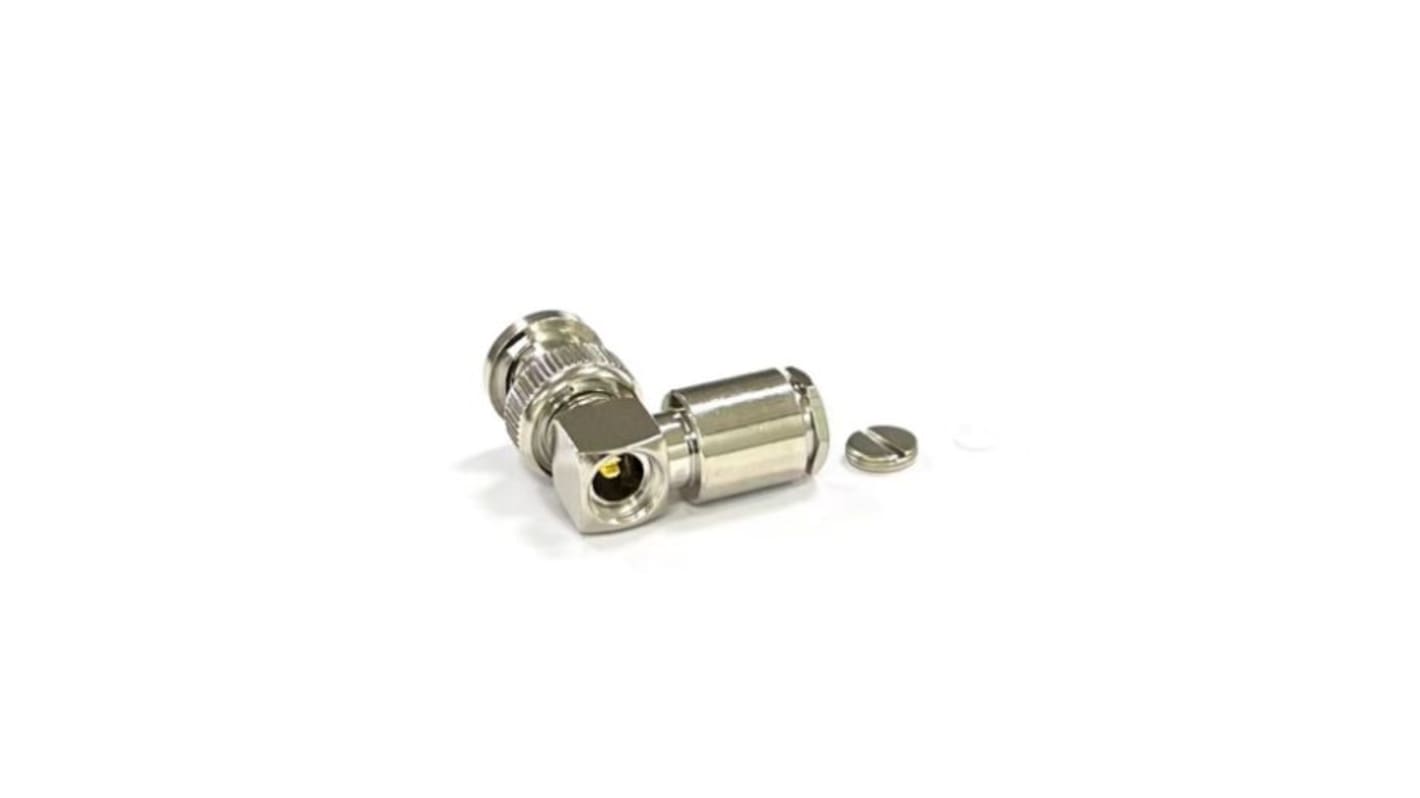

RS PRO Right Angle Cable Mount BNC Connector Plug
A right-angled cable mount BNC connector designed for use with coaxial cable to enable the smooth transmission of radio-frequency signals (RF). As a BNC connector the RS PRO BNC Connector plug features a quick connect bayonet fitting for easy tool free coax connection and disconnection.
The RS PRO BNC coax connector features a 4 GHz frequency range and includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.
Due to the ability to quickly connect or disconnect from connectors BNC coaxial connectors are ideal for a wide range of RF applications and are often used in test equipment, antenna connections, CCTV and medical equipment.
The RS PRO BNC coax connector features a 4 GHz frequency range and includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.
Due to the ability to quickly connect or disconnect from connectors BNC coaxial connectors are ideal for a wide range of RF applications and are often used in test equipment, antenna connections, CCTV and medical equipment.
Features and Benefits
- Nickel plated body
- Cable mount
- Clamp termination
- Right angle orientation
- Working Voltage of 335V
- Insulation resistance of upto 1000MΩ
- Operating temperature range of -45°C to +165°C
Approvals and Standards: CE, ROHS
