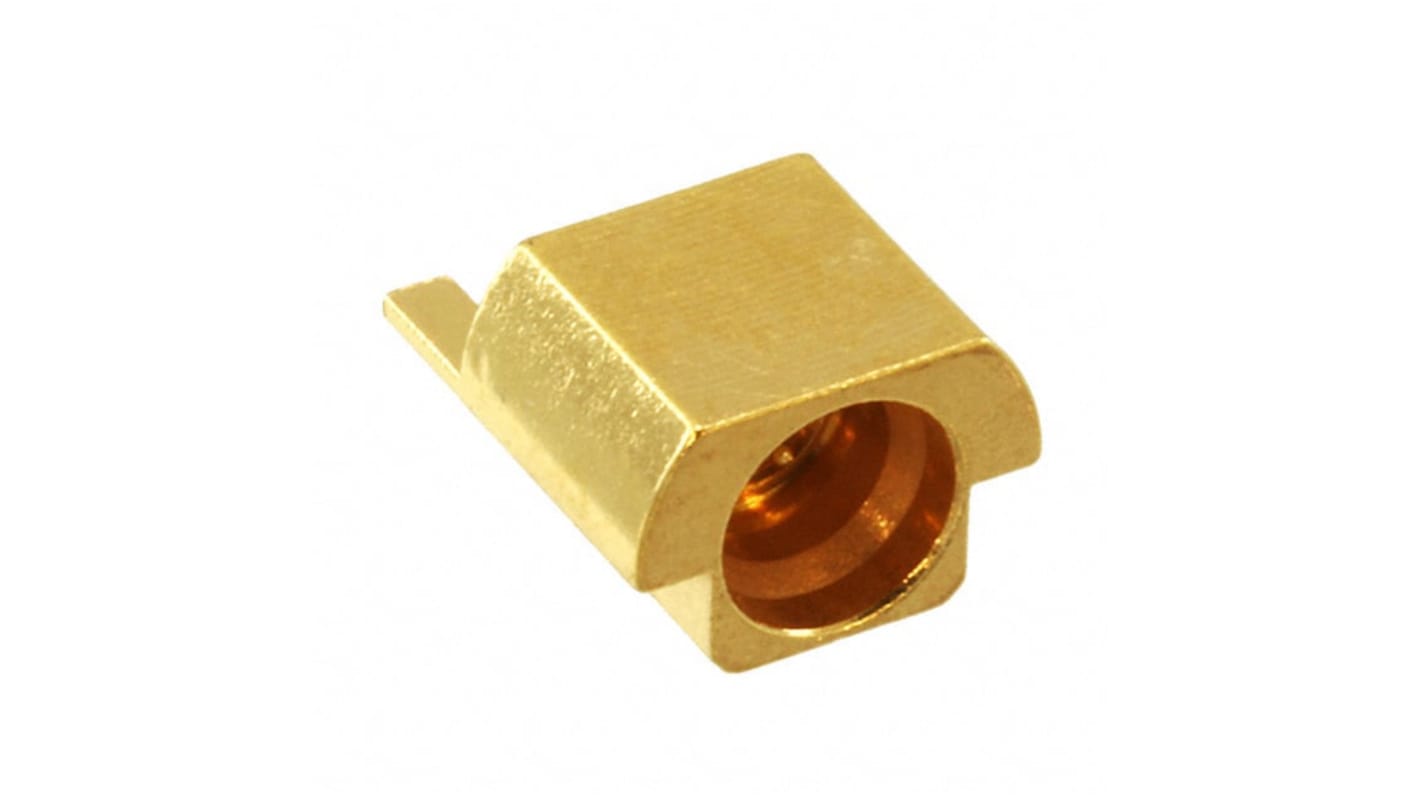

Molex 774155 Series, Plug Surface Mount SMP Connector, 50Ω, Solder Termination
- RS Stock No.:
- 213-5727
- Mfr. Part No.:
- 734155721
- Brand:
- Molex
Save 27% when you buy 20 units
Subtotal (1 unit)*
£6.22
(exc. VAT)
£7.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £6.22 |
5 - 9 | £5.79 |
10 - 14 | £5.41 |
15 - 19 | £4.97 |
20 + | £4.54 |
*price indicative
- RS Stock No.:
- 213-5727
- Mfr. Part No.:
- 734155721
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Coaxial Connector Type | SMP Connector | |
Gender | Male | |
Mounting Type | Surface Mount | |
Impedance | 50Ω | |
Termination Method | Solder | |
Body Plating | Gold | |
Polarity | Normal | |
Series | 774155 | |
Select all | ||
---|---|---|
Brand Molex | ||
Coaxial Connector Type SMP Connector | ||
Gender Male | ||
Mounting Type Surface Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Plating Gold | ||
Polarity Normal | ||
Series 774155 | ||
- COO (Country of Origin):
- TW
Molex 774155 Series Coaxial Connector, 50 Ω Impedance, Male - 734155721
This coaxial connector is a high-quality male SMP connector designed for surface mount applications. It features a robust gold-plated body and solder termination, making it suitable for various electronic configurations. With an impedance of 50 Ω, it is designed for optimal performance in high-frequency environments such as RF applications.
Features & Benefits
• Designed for surface mount installation to maximise space efficiency
• Utilises a solder termination method for reliable connections
• Gold plating enhances durability and signal integrity
• Compatible with high-frequency signals of up to 40 GHz
• Offers a VSWR of 1.50 maximum for excellent performance
• Ideal for use in precise electrical and mechanical setups
• Utilises a solder termination method for reliable connections
• Gold plating enhances durability and signal integrity
• Compatible with high-frequency signals of up to 40 GHz
• Offers a VSWR of 1.50 maximum for excellent performance
• Ideal for use in precise electrical and mechanical setups
Applications
• Utilised in automation systems for reliable signal transmission
• Integrated into telecommunications equipment for superior connectivity
• Employed in RF testing to ensure high fidelity
• Used in various electronics for efficient signal routing
• Integrated into telecommunications equipment for superior connectivity
• Employed in RF testing to ensure high fidelity
• Used in various electronics for efficient signal routing
What material is used for the body and contacts?
The body and centre contact are made from brass and are plated with gold, ensuring high durability and enhanced conductivity for signal integrity.
What frequency range can this connector handle?
This connector is rated for frequencies from 0 up to 40 GHz, making it suitable for a variety of high-frequency applications.
How does the installation process work for this connector?
It is designed for surface mount applications, allowing a direct connection to a PCB via soldering for a stable and secure installation.
What are the advantages of using a gold-plated connector?
Gold plating resists corrosion and ensures a low-loss connection, improving overall signal quality and reliability, especially in high-frequency environments.
