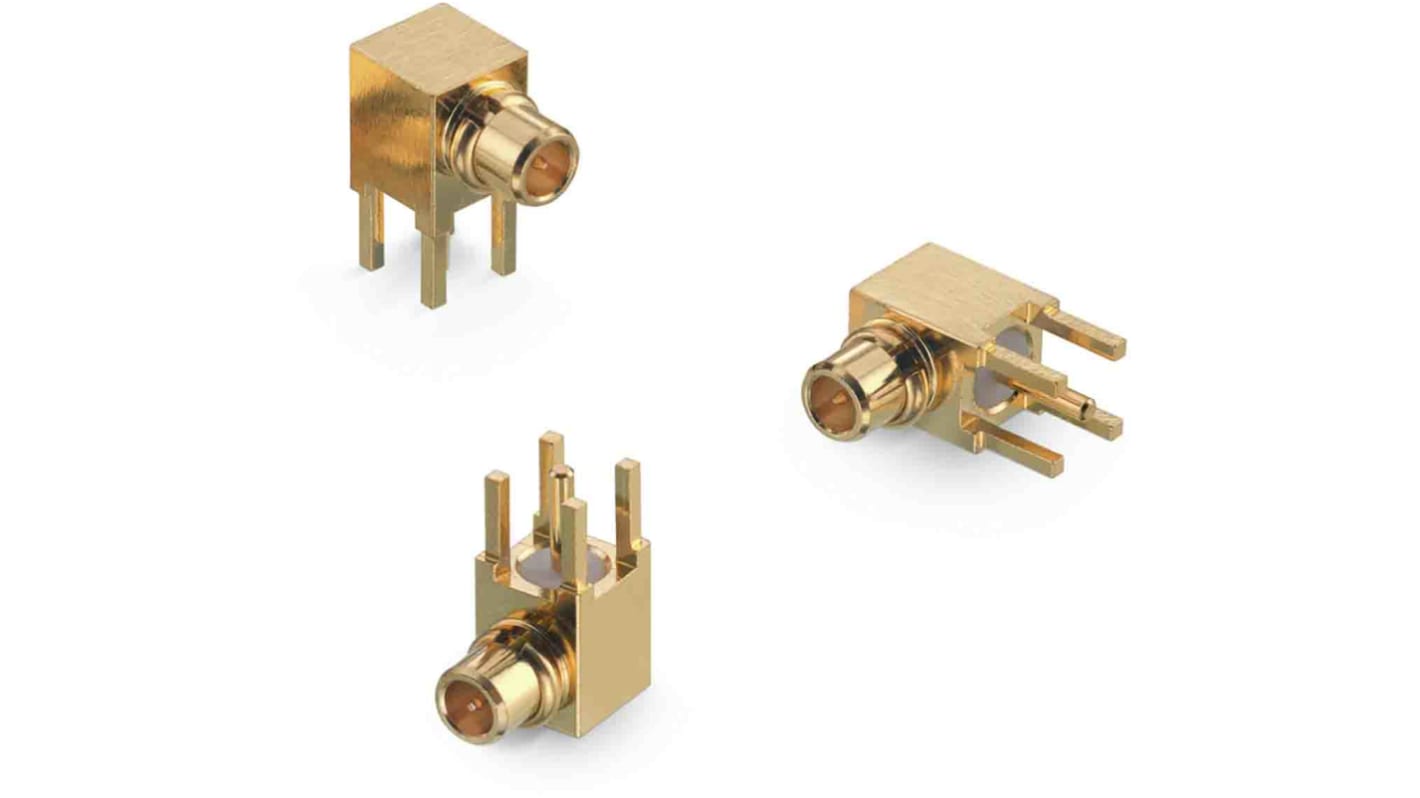

Wurth Elektronik WR-MMCX Series, Plug Through Hole MMCX Connector, 50Ω, Solder Termination, Right Angle Body

RS Stock No.:: 194-6073
Mfr. Part No.:: 66013002121501
Brand:: Wurth Elektronik

Wurth Elektronik WR-MMCX Series, Plug Through Hole MMCX Connector, 50Ω, Solder Termination, Right Angle Body

Available to back order for despatch 07/08/2024

Added

Price Each (In a Tray of 198)

£4.242

(exc. VAT)

£5.09

(inc. VAT)

Units	Per unit	Per Tray*
198 +	£4.242	£839.916
*price indicative

RS Stock No.:: 194-6073
Mfr. Part No.:: 66013002121501
Brand:: Wurth Elektronik

Technical Reference

Datasheet 66013002121501

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

The Right Angle THT MMCX Plug is a coaxial connector designed for any wire-to-board application where easy and quick snap-on mating is needed. The RF connectors are available in 50 Ohm and frequencies up to 6 GHz. They are used in applications like:
- Telecommunication, base stations and telecom boxes
- Industrial machine-to-machine communication and automation
- Data communication and wireless LAN
- Measurement & test system and network analyzer

Specifications

Attribute	Value
Coaxial Connector Type	MMCX Connector
Gender	Male
Mounting Type	Through Hole
Impedance	50Ω
Termination Method	Solder
Body Orientation	Right Angle
Operating Frequency	6GHz
Body Plating	Gold over Nickel
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	+155°C
Series	WR-MMCX
Contact Material	Beryllium Copper
Contact Plating	Gold over Nickel
