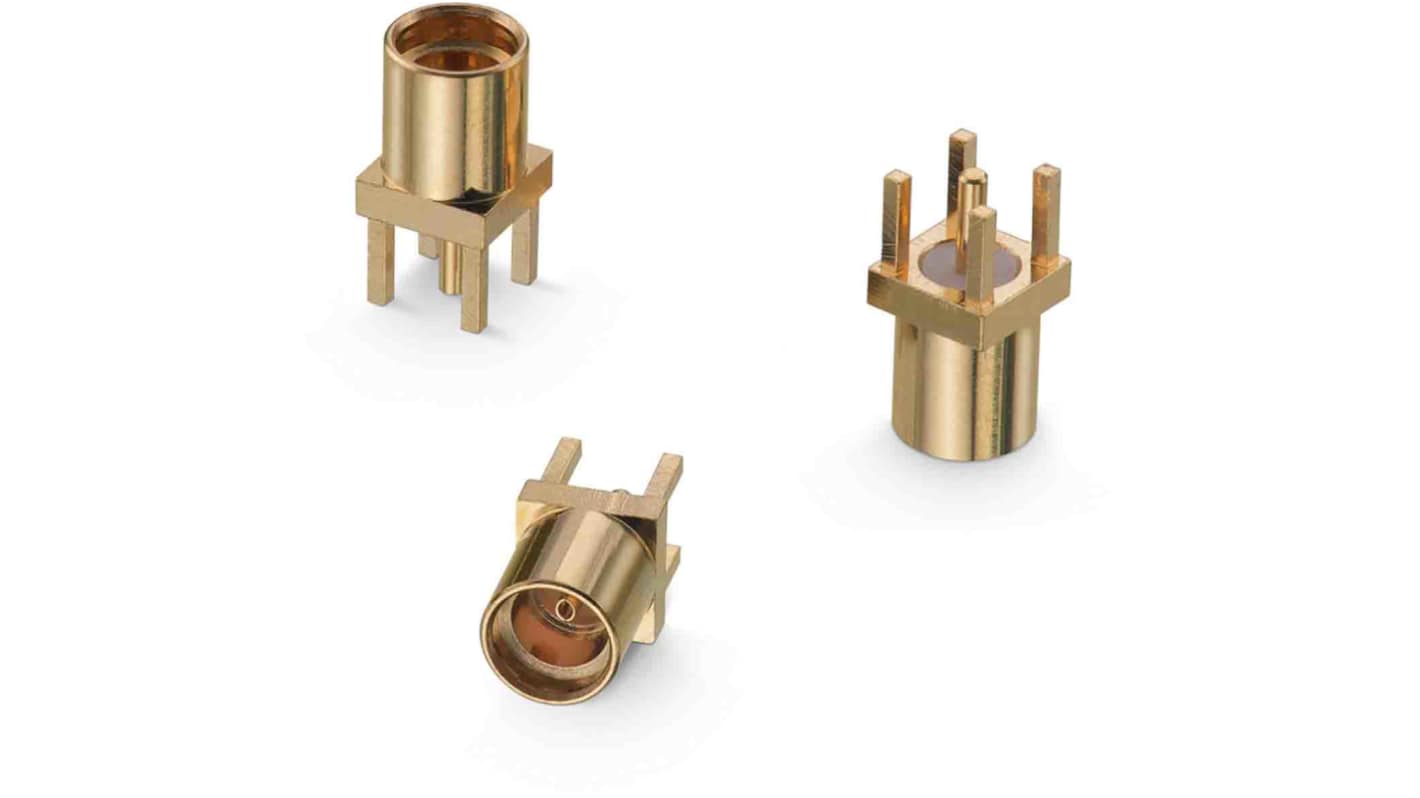

Wurth Elektronik WR-MMCX Series, Jack Through Hole MMCX Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 194-6066
- Mfr. Part No.:
- 66012002111503
- Brand:
- Wurth Elektronik
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 194-6066
- Mfr. Part No.:
- 66012002111503
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Gender | Female | |
Coaxial Connector Type | MMCX Connector | |
Mounting Type | Through Hole | |
Impedance | 50Ω | |
Termination Method | Solder | |
Body Orientation | Straight | |
Operating Frequency | 6GHz | |
Minimum Operating Temperature | -55°C | |
Body Plating | Gold over Nickel | |
Maximum Operating Temperature | +155°C | |
Series | WR-MMCX | |
Contact Material | Beryllium Copper | |
Contact Plating | Gold over Nickel | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Gender Female | ||
Coaxial Connector Type MMCX Connector | ||
Mounting Type Through Hole | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Operating Frequency 6GHz | ||
Minimum Operating Temperature -55°C | ||
Body Plating Gold over Nickel | ||
Maximum Operating Temperature +155°C | ||
Series WR-MMCX | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel | ||
- COO (Country of Origin):
- TW
The Straight THT MMCX Jack is a coaxial connector designed for any wire-to-board application where easy and quick snap-on mating is needed. The RF connectors are available in 50 Ohm and frequencies up to 6 GHz. They are used in applications like:
Telecommunication, base stations and telecom boxes
Industrial machine-to-machine communication and automation
Data communication and wireless LAN
Measurement & test system and network analyzer
Telecommunication, base stations and telecom boxes
Industrial machine-to-machine communication and automation
Data communication and wireless LAN
Measurement & test system and network analyzer
