Telegartner, Plug Cable Mount UHF Connector, 50Ω, Right Angle Body
- RS Stock No.:
- 193-7717
- Mfr. Part No.:
- J01040B1201
- Brand:
- Telegartner

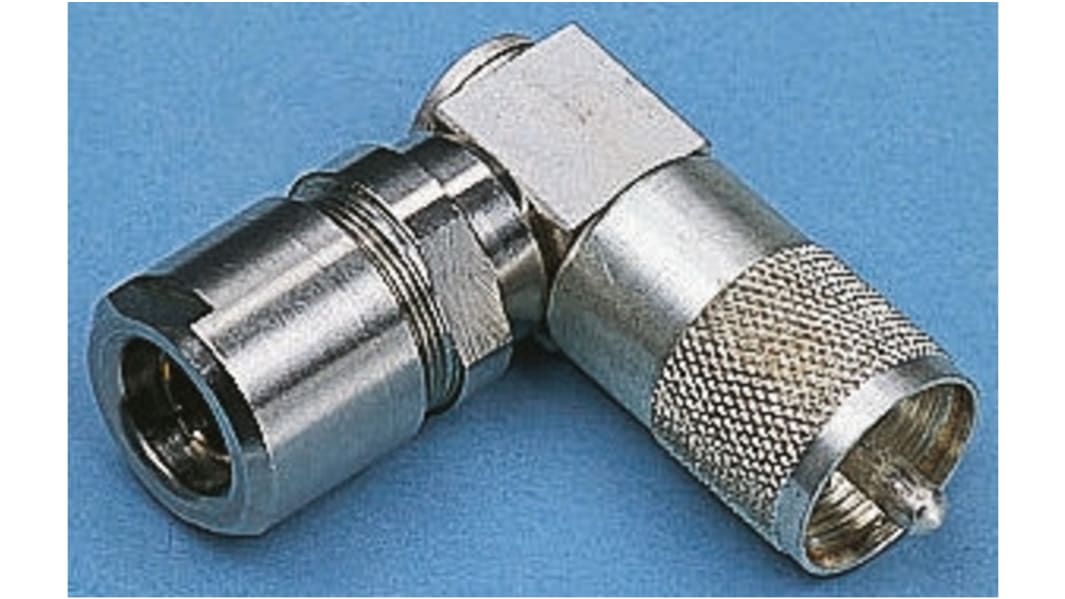

Image representative of range
Subtotal (1 unit)*
£31.31
(exc. VAT)
£37.57
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £31.31 |
*price indicative
- RS Stock No.:
- 193-7717
- Mfr. Part No.:
- J01040B1201
- Brand:
- Telegartner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Telegartner | |
Coaxial Connector Type | UHF Connector | |
Gender | Male | |
Mounting Type | Cable Mount | |
Impedance | 50Ω | |
Body Orientation | Right Angle | |
Cable Type | RG141 A/U, RG142 B/U, RG223/U, RG58 C/U | |
Operating Frequency | 0 to 200MHz | |
Contact Material | Brass Alloy | |
Select all | ||
---|---|---|
Brand Telegartner | ||
Coaxial Connector Type UHF Connector | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Body Orientation Right Angle | ||
Cable Type RG141 A/U, RG142 B/U, RG223/U, RG58 C/U | ||
Operating Frequency 0 to 200MHz | ||
Contact Material Brass Alloy | ||
- COO (Country of Origin):
- DE
UHF Angled Plug


UHF Series is an inexpensive universal plug connector with screw lock. The toothing engages to prevent it from twisting even when exposed to vibration. Its wave impedance has not been adapted and its area of application is limited to lower frequency ranges, up to 200 MHz max. The cable is relieved from strain by screwing it into a thread on the plug body. Contact parts made from CuZn39Pb3 and insulated parts made from PTFE, POM or DAP with nickel-plated housing parts. Supplied with assembly instructions
